Mahle Motorsport 930286135 - Mahle MS Piston Set S54 B32 3.2L 87.25mm Bore 91mm Stroke 139mm Rod 21mm Pin-13.1cc 11.6 CR Set of 6
Mahle Motorsport 930286135 - Mahle MS Piston Set S54 B32 3.2L 87.25mm Bore 91mm Stroke 139mm Rod 21mm Pin-13.1cc 11.6 CR Set of 6
SKU: DGJH-930286135
Regular price
$948.99 USD
Regular price
$1,075.57 USD
Sale price
$948.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Mahle Motorsport 930286135 - Mahle MS Piston Set S54 B32 3.2L 87.25mm Bore 91mm Stroke 139mm Rod 21mm Pin-13.1cc 11.6 CR Set of 6

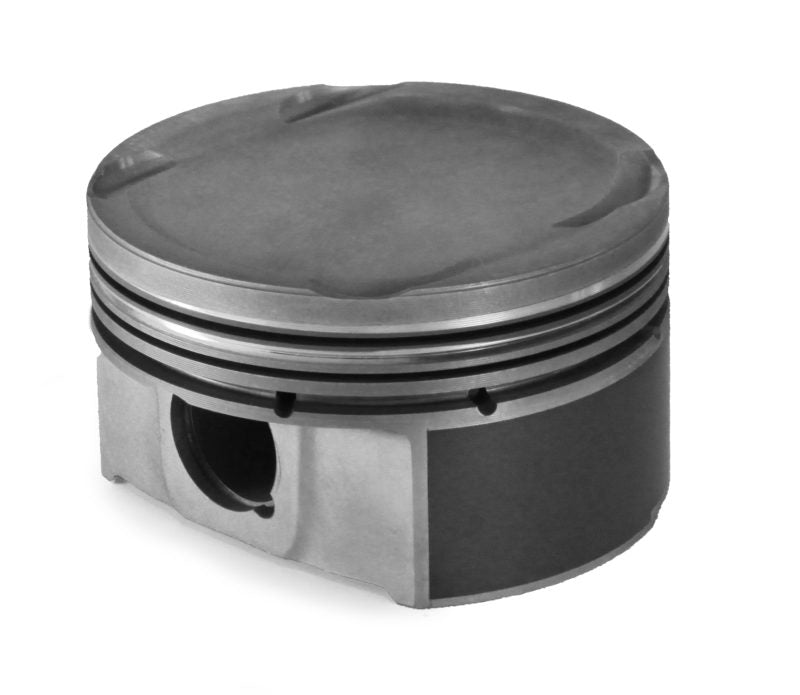

Piston and Ring - PowerPak - Forged - Dish - 3.435 in Bore - 1.271 in Compression Height - 1.2 x 1.2 x 2.8 mm Ring Groove - Minus 13.10 cc - BMW Inline-6 - Kit
87.25mm x 32.3mm CH, 91.0mm stroke,139mm rod,21mm pin,-13.1cc,340g,11.6CR, 2618
Pin Diameter: 21.0mm
Package Quantity: Sold as a set of 6
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -13.1cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.2mm
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
OCR Thickness: 2.8mm
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Piston Mass: 340g
Pins Included: Y
Pin Wall Thickness: 0.197
Pin Style: Floating
Pin Material: Steel
Pin Mass: 98g
Pin Length: 50.0mm
