Mahle Motorsport 930285137-1 - Piston (each)
Mahle Motorsport 930285137-1 - Piston (each)
SKU: DGJH-930285137-1
Regular price
$155.99 USD
Regular price
$184.30 USD
Sale price
$155.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

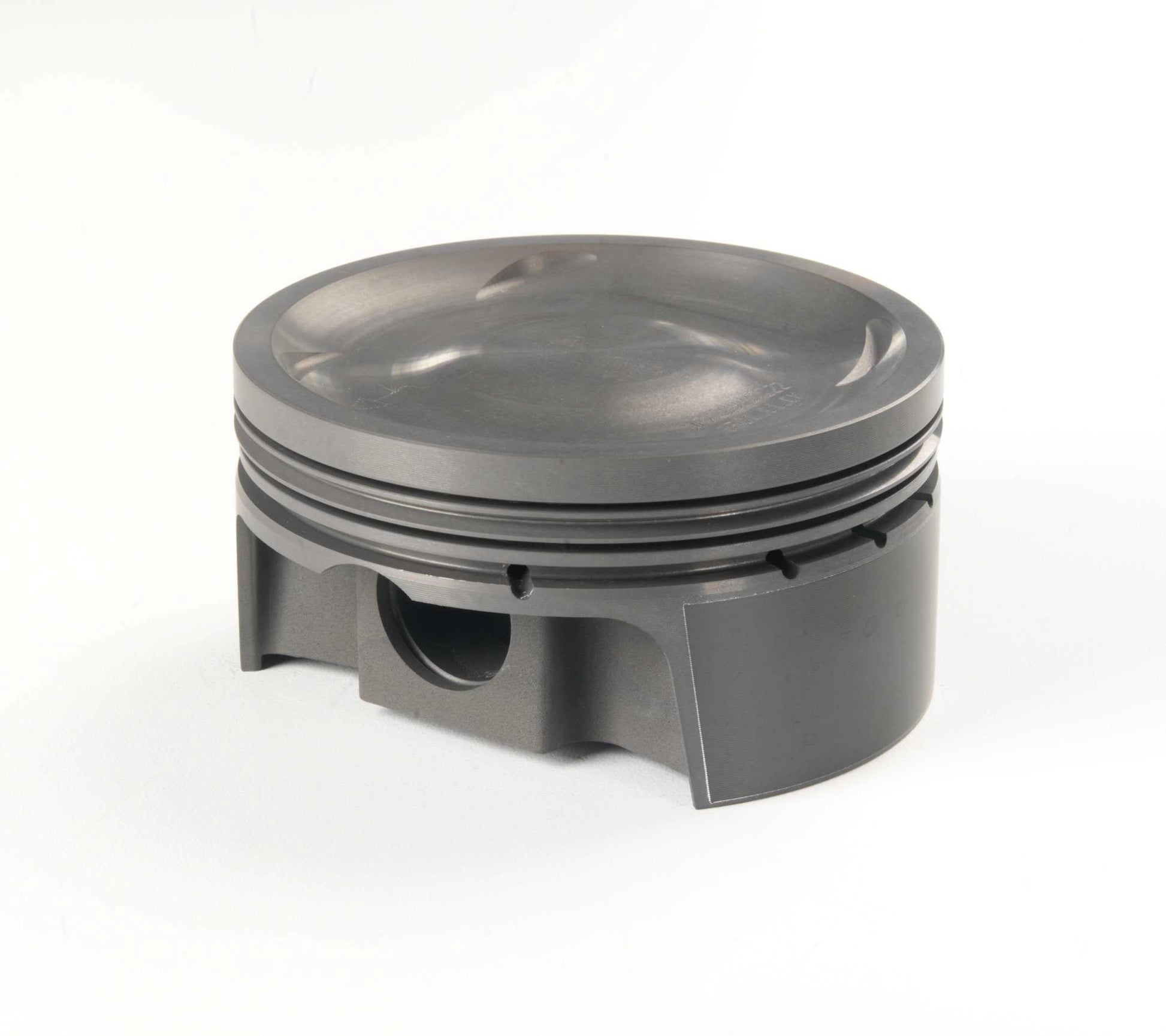

Mahle Motorsport 930285137-1 - Piston (each)
Piston (ea) - SUBARU WRX 2.5L STI, FORESTER, LEGACY
100.0mm x 30.7mm CH, 79.0mm stroke,130.5mm rod,23mm pin,-19.3cc,417g,8.5CR, 2618, SINGLE PISTON
Clip Style: Round Wire
Pin Wall Thickness: 0.187
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: N
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 417g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 124g
Pin Length: 57.404mm
Pin Diameter: 23.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -19.3cc
UCR Thickness: 1.0mm
