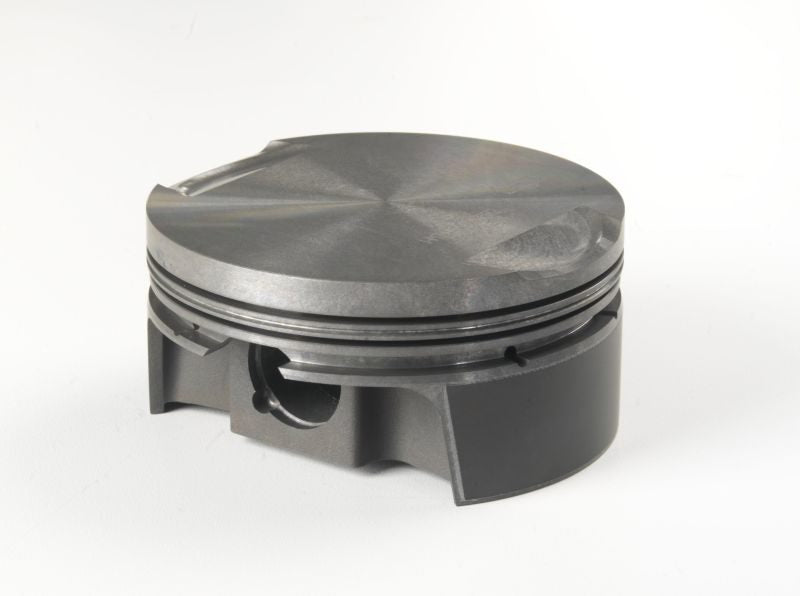

Mahle Motorsport 930276347 - Mahle MS Piston Set Hemi 396ci 3.947in Bore 4.05in Stroke 6.125in Rod .927 Pin 6cc 10.6 CR Set of 8
Mahle Motorsport 930276347 - Mahle MS Piston Set Hemi 396ci 3.947in Bore 4.05in Stroke 6.125in Rod .927 Pin 6cc 10.6 CR Set of 8
SKU: DGJH-930276347
Regular price
$832.99 USD
Regular price
$888.21 USD
Sale price
$832.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930276347 - Mahle MS Piston Set Hemi 396ci 3.947in Bore 4.05in Stroke 6.125in Rod .927 Pin 6cc 10.6 CR Set of 8
Piston (set) - HEMI 5.7L - compatible with all 5.7L and 6.1L heads
396cid 3.947 x 1.095RCH, 4.050stroke,6.125rod,0.927pin,6cc,432g,11.6CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 432g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 6cc
UCR Thickness: 1.0mm
