Mahle Motorsport 930271170 - Mahle MS Piston Set SBM 416ci 4.07in Bore 4.00in Stroke 6.123in Rod .984 Pin -28cc 9.3 CR Set of 8
Mahle Motorsport 930271170 - Mahle MS Piston Set SBM 416ci 4.07in Bore 4.00in Stroke 6.123in Rod .984 Pin -28cc 9.3 CR Set of 8
SKU: DGJH-930271170
Regular price
$853.99 USD
Regular price
$911.01 USD
Sale price
$853.99 USD
Shipping calculated at checkout.
4 in stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930271170 - Mahle MS Piston Set SBM 416ci 4.07in Bore 4.00in Stroke 6.123in Rod .984 Pin -28cc 9.3 CR Set of 8

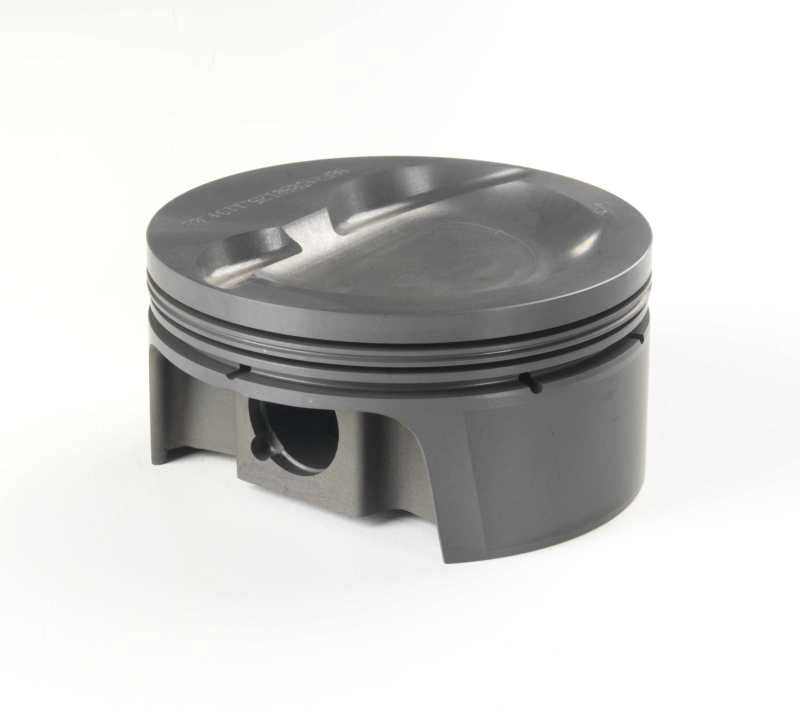

Piston - Power Pak - Forged - 4.070 in Bore - 1.0 mm x 1.0 mm x 2.0 mm Ring Grooves - Minus 28.00 cc - Small Block Mopar - Set of 8
416cid 4.070 x 1.460CH, 4.000stroke,6.123rod,0.984pin,-28cc,505g,9.4CR, 2618
Pin Style: Floating
Clips Included: Y
Pin Mass: 122g
Pin Length: 58.1mm
Pin Diameter: 24.994mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -28cc
Clip Style: Round Wire
Pin Wall Thickness: 0.162
UCR Thickness: 1.0mm
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 505g
Pins Included: Y
Pin Material: Steel
