Mahle Motorsport 930270270 - Mahle MS Piston Set SBM 416ci 4.07in Bore 4.00in Stroke 6.123in Rod .984 Pin -5cc 11.8 CR Set of 8

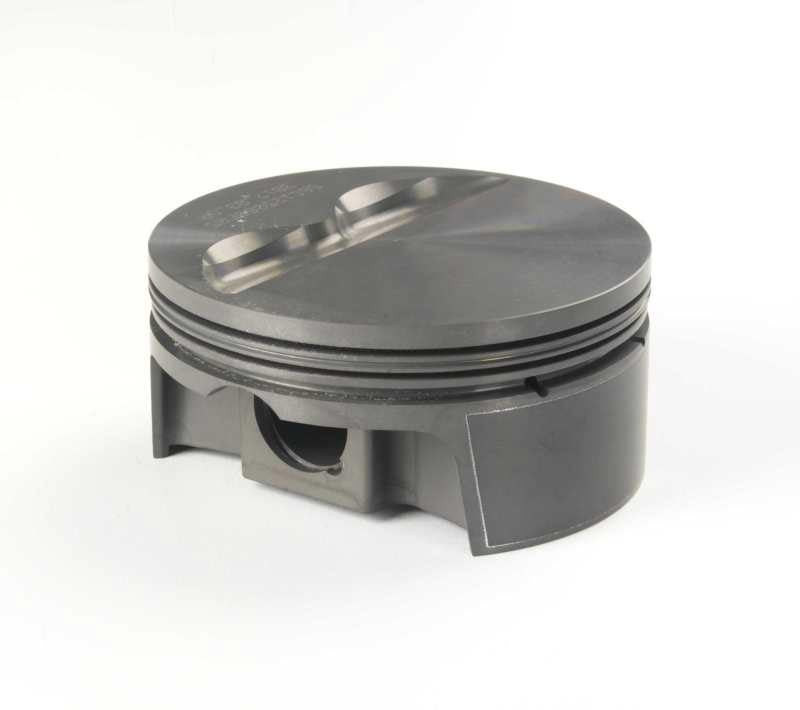

Piston (set) - SMALL BLOCK MOPAR (LA) / 340, 360 FLAT TOP
416cid 4.070 x 1.460CH, 4.000stroke,6.123rod,0.984pin,-5.5cc,470g,11.8CR, 4032
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -5.5cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.162
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 470g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 122g
Pin Length: 58.1mm
Pin Diameter: 24.994mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
