Mahle Motorsport 930264570 - Mahle MS Piston Set Ford 487ci 4.27in Bore 4.250in Stroke 6.7in Rod 0.990 Pin -20cc 10.9 CR Set of 8
Mahle Motorsport 930264570 - Mahle MS Piston Set Ford 487ci 4.27in Bore 4.250in Stroke 6.7in Rod 0.990 Pin -20cc 10.9 CR Set of 8
SKU: DGJH-930264570
Regular price
$833.99 USD
Regular price
$889.48 USD
Sale price
$833.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

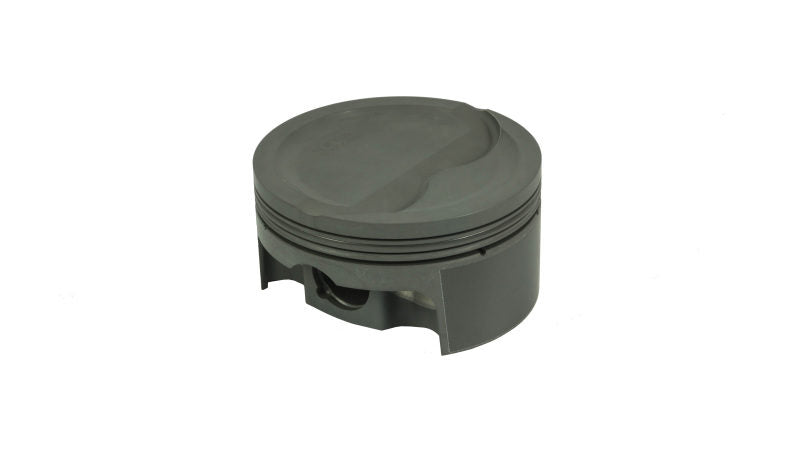

Mahle Motorsport 930264570 - Mahle MS Piston Set Ford 487ci 4.27in Bore 4.250in Stroke 6.7in Rod 0.990 Pin -20cc 10.9 CR Set of 8
Piston (set) - FORD FE DISH
487cid 4.270 x 1.325CH, 4.250stroke,6.700rod,0.990pin,-20cc,527g,10.8CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 527g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -20cc
UCR Thickness: 1.0mm
