Mahle Motorsport 930258601 - Mahle MS Piston Set Ford Coyote 314ci 3.701in Bore 3.650in Stroke 5.933in Rod .866 Pin -1cc 11CR
Mahle Motorsport 930258601 - Mahle MS Piston Set Ford Coyote 314ci 3.701in Bore 3.650in Stroke 5.933in Rod .866 Pin -1cc 11CR
SKU: DGJH-930258601
Regular price
$923.99 USD
Regular price
$1,004.18 USD
Sale price
$923.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930258601 - Mahle MS Piston Set Ford Coyote 314ci 3.701in Bore 3.650in Stroke 5.933in Rod .866 Pin -1cc 11CR

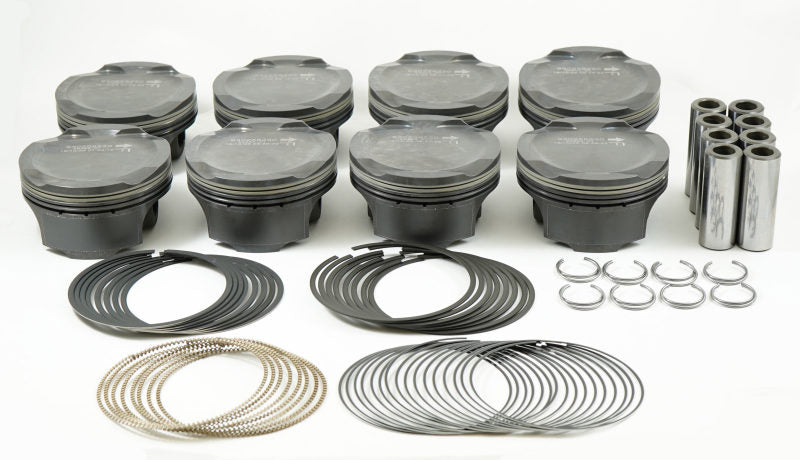

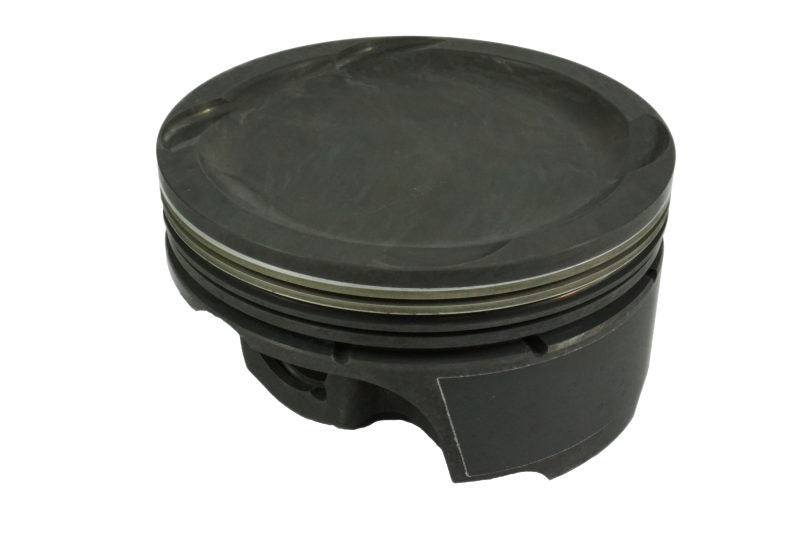

Piston (set) - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO
314cid 3.701 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-1cc,370g,11.0CR, 2618
Pin Mass: 118g
UCR Thickness: 1.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -1cc
Clips Included: Y
Clip Style: Round Wire
UCR Material: 9254 Steel
Pin Material: Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.5mm
Piston Material: Forged, 2618
Piston Mass: 370g
Pins Included: Y
Pin Wall Thickness: 0.177
Pin Style: Floating
Pin Length: 61.1mm
