Mahle Motorsport 930258401-1 - Piston (each)
Mahle Motorsport 930258401-1 - Piston (each)
SKU: DGJH-930258401-1
Regular price
$102.99 USD
Regular price
$121.41 USD
Sale price
$102.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

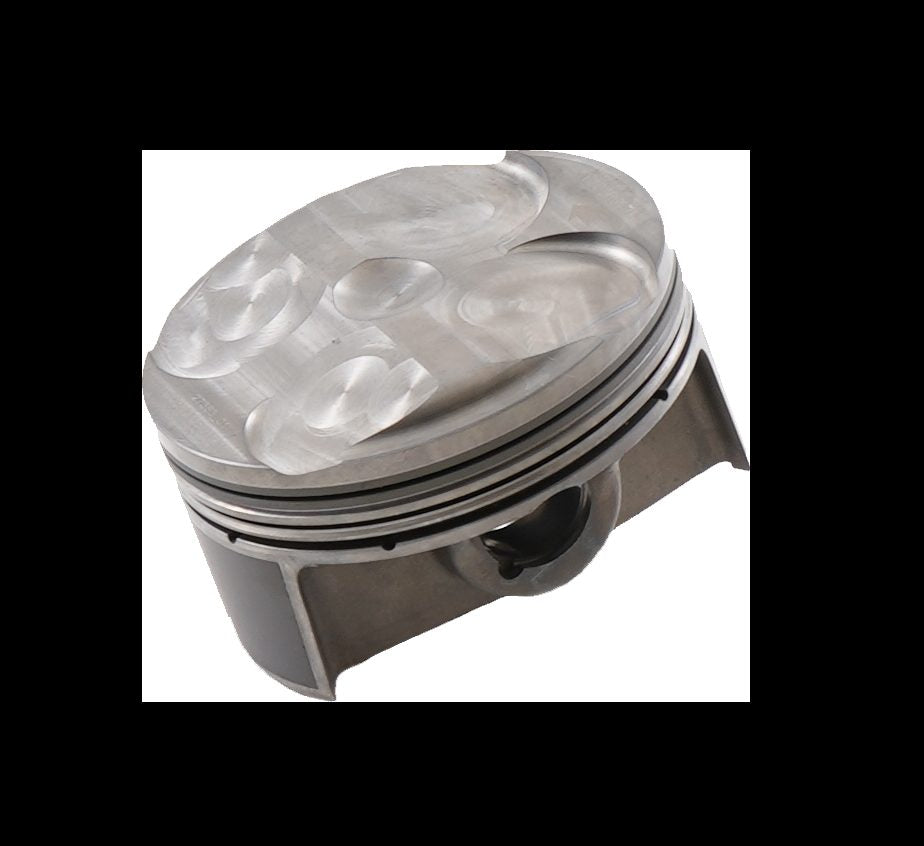

Mahle Motorsport 930258401-1 - Piston (each)
Piston (ea) - FORD 5.2L VOODOO DROP-IN FORGED REPLACMENT ASSEMBLY
315cid 3.701 x 1.161CH, 3.661stroke,5.933rod,0.827pin,7.8cc,380g,12.0CR, M142P, SINGLE PISTON
Pin Mass: 100g
UCR Thickness: 1.0mm
Pin Diameter: 21.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Nitrided stainless steel
LCR Thickness: 1.2mm
LCR Material: 9254 Steel
LCR Coating: Chrome
File Fit: N
Crown Volume: 7.8cc
Clips Included: N
Clip Style: Round Wire
UCR Material: 9254 Steel
Pin Material: Steel
UCR Coating: HV385
Rings Included: N
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.0mm, 1.2mm, 2.0mm
Piston Material: Forged, M142P
Piston Mass: 380g
Pins Included: N
Pin Wall Thickness: 0.187
Pin Style: Floating
Pin Length: 54.3mm
