Mahle Motorsport 930258230-1 - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258230) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,358g
Mahle Motorsport 930258230-1 - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258230) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,358g
SKU: DGJH-930258230-1
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Mahle Motorsport 930258230-1 - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258230) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,358g

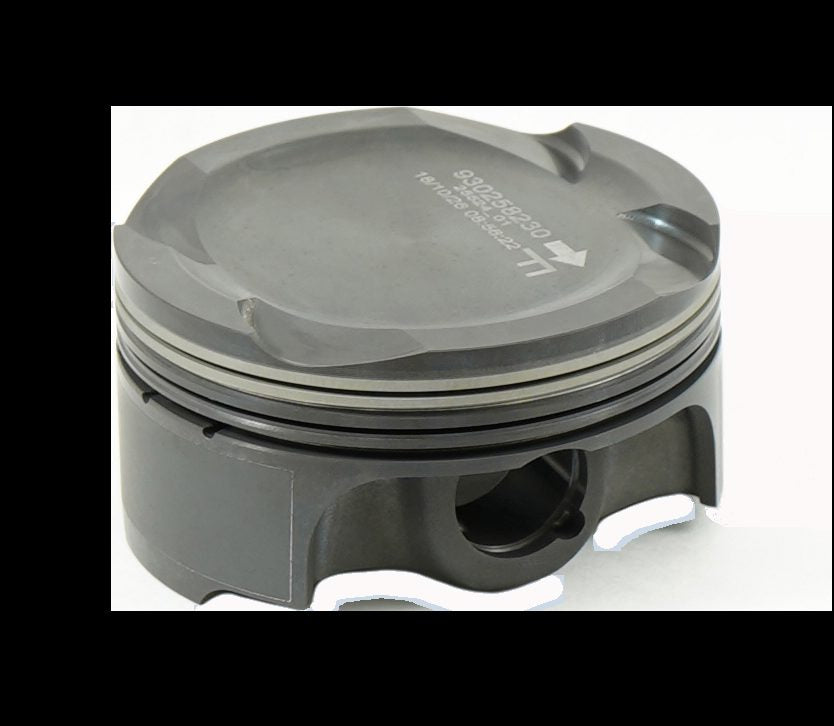

Mahle Motorsport Engine Piston
FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) SINGLE PISTON (930258230) 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,358g.
Piston Style: Dish, w/ 4 valve reliefs
Rings Included: N
Clip Style: Round Wire
Clips Included: N
Crown Vol: -13.1cc
Package Qty: Sold as a set of 1
Pin Diameter: 0.866
Pin Length: 2.405
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: N
Piston Mass: 358g
Piston Material: Forged, 2618
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
