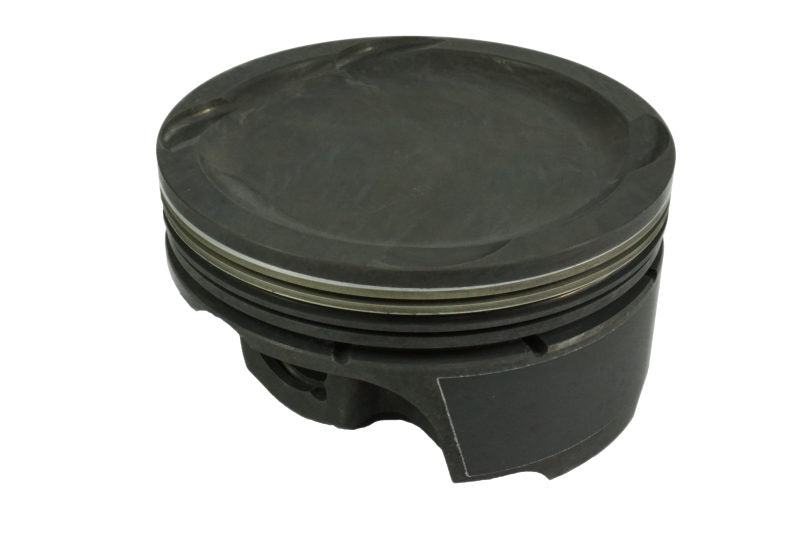

Mahle Motorsport 930258230 - Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -13cc 9.0 CR Set of 8
Mahle Motorsport 930258230 - Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -13cc 9.0 CR Set of 8
SKU: DGJH-930258230
Regular price
$0.00 USD
Regular price
$0.00 USD
Sale price
$0.00 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Mahle Motorsport 930258230 - Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin -13cc 9.0 CR Set of 8
302ci, 3.630bore, 3.650stroke, 5.933rod,1.167ch,.866pin,-13cc,342g,9.0cr,2618
FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) 302cid 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-13.1cc,358g,9.1CR, 2618.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal plus Hard Anodized top ring groove
Crown Vol: -13.1cc

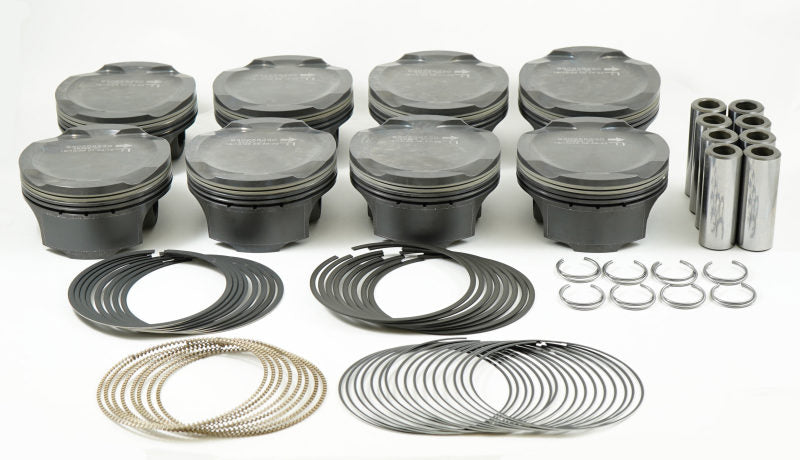

Package Qty: Sold as a set of 8
Pin Diameter: 0.866
Pin Length: 2.405
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 358g
Piston Material: Forged, 2618
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Style: Dish, w/ 4 valve reliefs
Rings Included: Yes
