Mahle Motorsport

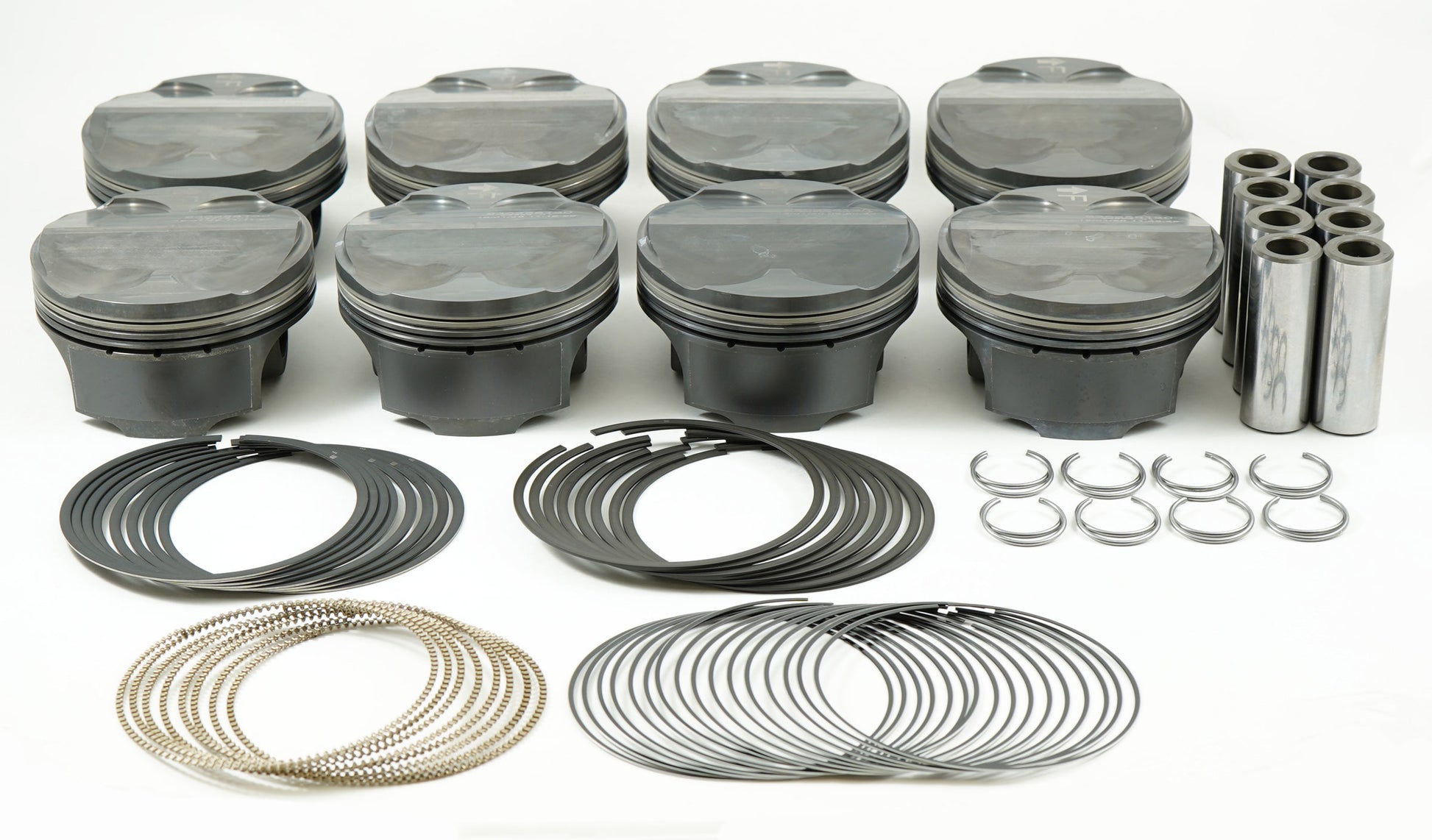

Mahle Motorsport 930258130 - Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:5 CR Set of 8

MSRP: $1,058.89
$997.45
( saved $61.44 )
Write a Review
Mahle Motorsport 930258130 - Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:5 CR Set of 8
  • Mahle Motorsport 930258130 - Mahle MS Piston Set SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin 10cc 12:5 CR Set of 8
    • PLEASE NOTE: Pictures are repsentative of style, may be generic.
Adding to cart… The item has been added
SKU:
DGJH-930258130

  • Free Ground Shipping

  • No Restocking Fee

  • Safe Payments

  • No Backorders Ever

Mahle Motorsport - 930258130

302ci, 3.630bore, 3.650stroke, 5.933rod,1.167ch,.866pin,10cc,389g,12:5cr,2618

FORD 5.0L MODULAR 4-VALVE COYOTE 302cid 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,10.2cc,401g,12.6CR, 2618.

Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal plus Hard Anodized top ring groove
Crown Vol: 10.2cc
Package Qty: Sold as a set of 8
Pin Diameter: 0.866
Pin Length: 2.405
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 401g
Piston Material: Forged, 2618
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Style: Dome, w/ 4 valve reliefs
Rings Included: Yes
