Mahle Motorsport

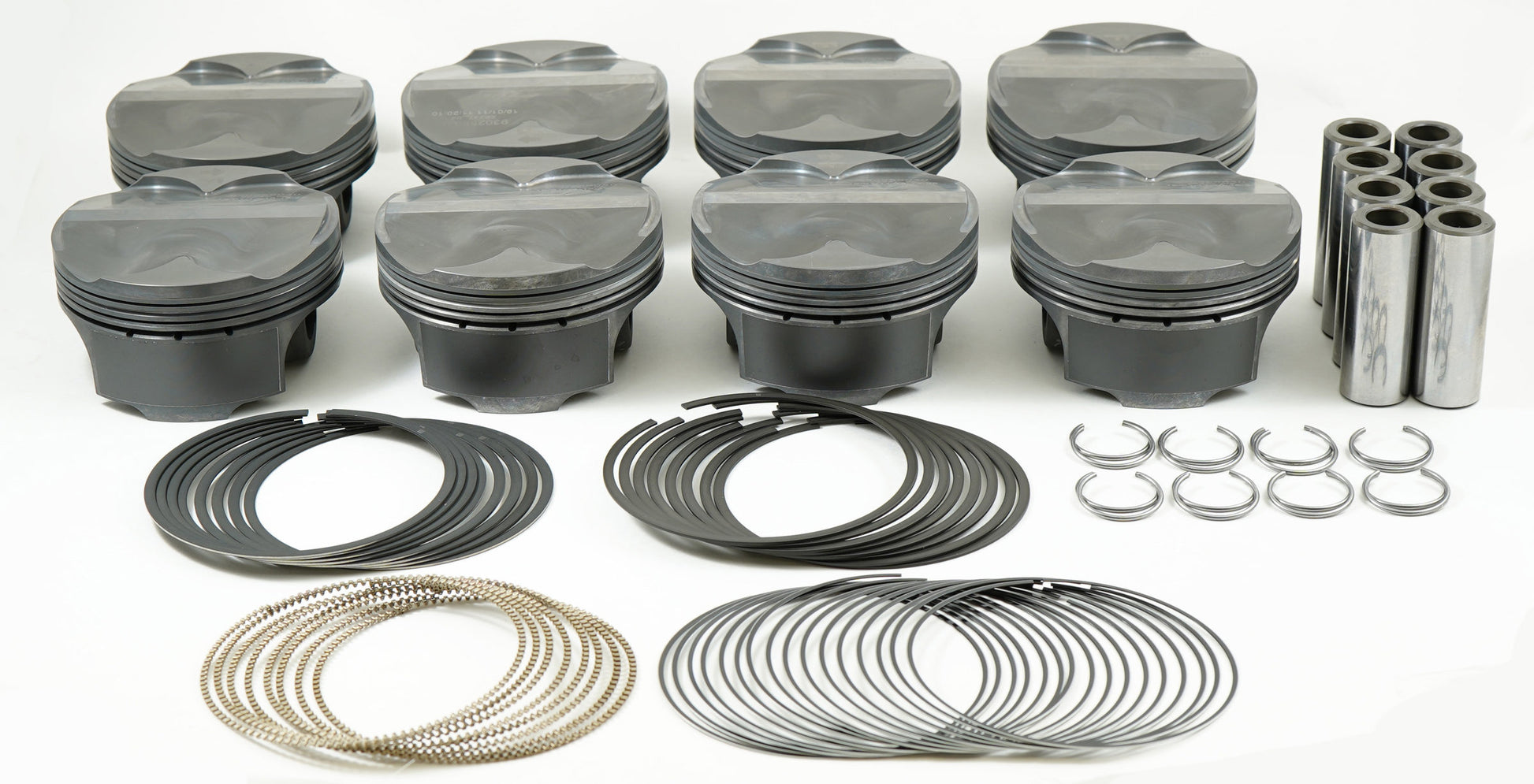

Mahle Motorsport 930258040 - Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 3cc 11.3 CR Set of 8

Name: Mahle Motorsport 930258040 - Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 3cc 11.3 CR Set of 8
Brand: Mahle Motorsport
SKU: DGJH-930258040
Price: 849.55 USD
Availability: InStock

MSRP: $900.24

$849.55

( saved $50.69 )

Write a Review

Mahle Motorsport 930258040 - Mahle MS Piston Set SBF 304ci 3.640in Bore 3.65in Stroke 5.933in Rod .866 Pin 3cc 11.3 CR Set of 8

Current Stock: 11

Adding to cart… The item has been added

SKU:: DGJH-930258040

Free Ground Shipping For All Orders!
No Restocking Fee 30 Day Return Policy
Safe Payments Provided by PayPal
No Backorders Ever If We Don't Have It, We Don't Sell It

Product Description
Fitment

Mahle Motorsport - 930258040

304ci, 3.640bore, 3.650stroke, 5.933rod,1.167ch,.866pin,3cc,381g,11.3cr,4032

FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) 304cid 3.640 x 1.167CH, 3.650stroke,5.933rod,0.866pin,3.0cc,392g,11.2CR, M142P.

Clip Style: Round Wire

Clips Included: Yes

Coatings: Phosphate plus Grafal plus Hard Anodized top ring groove

Crown Vol: 3.0cc

Package Qty: Sold as a set of 8

Pin Diameter: 0.866

Pin Length: 2.405

Pin Mass: 118g

Pin Material: Steel

Pin Style: Floating

Pins Included: Yes

Piston Mass: 392g

Piston Material: Forged, M142P

Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm

Piston Style: Dome, w/ 4 valve reliefs

Rings Included: Yes
