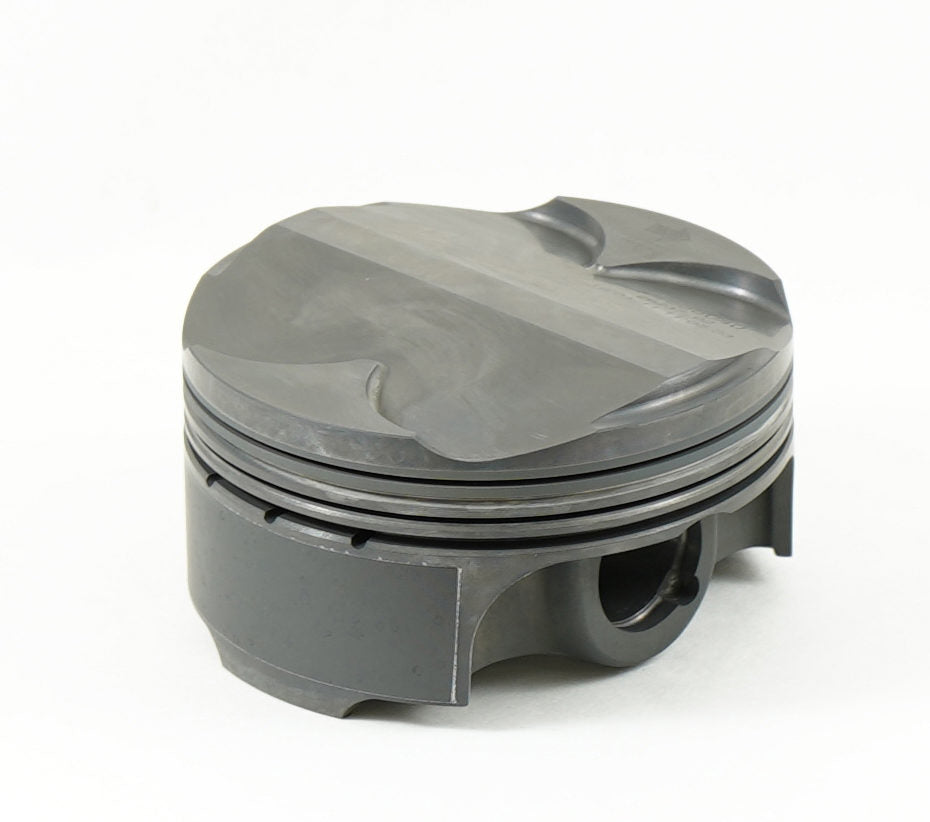

Mahle Motorsport 930258030-1 - Mahle MS Piston SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin 3cc 11.2 CR - Single
Mahle Motorsport 930258030-1 - Mahle MS Piston SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin 3cc 11.2 CR - Single
SKU: DGJH-930258030-1
Regular price
$85.99 USD
Regular price
$92.00 USD
Sale price
$85.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930258030-1 - Mahle MS Piston SBF 302ci 3.630in Bore 3.65in Stroke 5.933in Rod .866 Pin 3cc 11.2 CR - Single
Piston (ea) - FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO
302cid 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,3.0cc,389g,11.2CR, M142P, SINGLE PISTON
Piston Material: Forged, M142P
Piston Mass: 389g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 118g
Pin Length: 61.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 3.0cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.177
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: N
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
