Mahle Motorsport 930256072 - Mahle MS Piston Set SBF 284cid 3.572in Bore 3.543in Stroke 5.930in Rod .866 Pin-16cc 9.5 CR Set of 8
Mahle Motorsport 930256072 - Mahle MS Piston Set SBF 284cid 3.572in Bore 3.543in Stroke 5.930in Rod .866 Pin-16cc 9.5 CR Set of 8
SKU: DGJH-930256072
Regular price
$780.99 USD
Regular price
$843.57 USD
Sale price
$780.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability

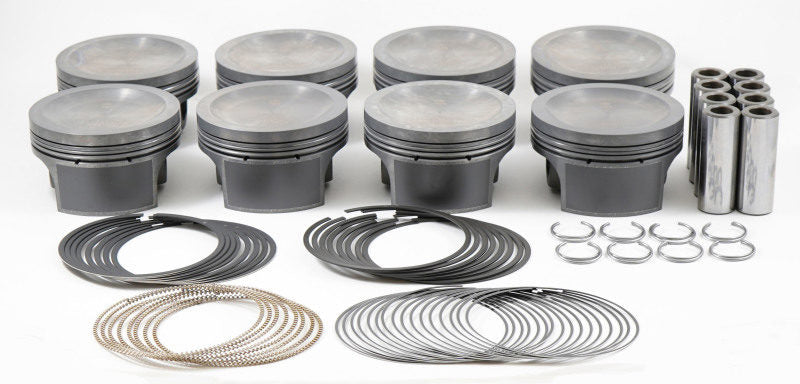

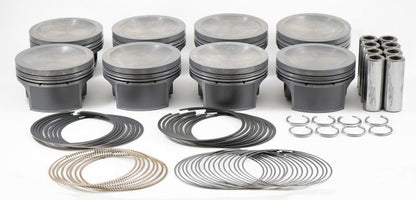

Mahle Motorsport 930256072 - Mahle MS Piston Set SBF 284cid 3.572in Bore 3.543in Stroke 5.930in Rod .866 Pin-16cc 9.5 CR Set of 8
Piston and Ring - PowerPak - Forged - Dish - 3.572 in Bore - 1.220 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 16.00 cc - Small Block Ford - Kit
284cid 3.572 x 1.220CH, 3.543stroke,5.930rod,0.866pin,-16.0cc,363g,9.5CR, M142P
Clip Style: Round Wire
Pin Wall Thickness: 0.177
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ NO valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, M142P
Piston Mass: 363g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 61.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -16.0cc
UCR Thickness: 1.0mm
