Mahle Motorsport 930250530 - Mahle MS Piston Set SBF 347ci 4.030in Bore 3.4in Stroke 5.4in Rod .927 Pin -6.2cc 10.4 CR Set of 8
Mahle Motorsport 930250530 - Mahle MS Piston Set SBF 347ci 4.030in Bore 3.4in Stroke 5.4in Rod .927 Pin -6.2cc 10.4 CR Set of 8
SKU: DGJH-930250530
Regular price
$783.99 USD
Regular price
$852.05 USD
Sale price
$783.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930250530 - Mahle MS Piston Set SBF 347ci 4.030in Bore 3.4in Stroke 5.4in Rod .927 Pin -6.2cc 10.4 CR Set of 8

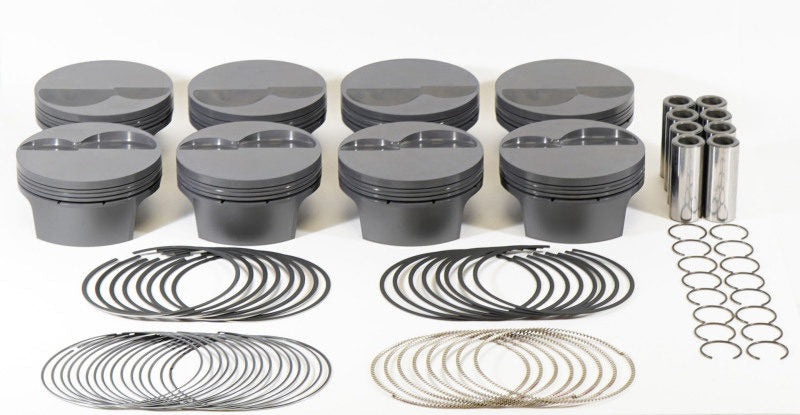

Piston (set) - SMALL BLOCK FORD FLAT TOP for the TWISTED WEDGE 11R CYL HEAD
347cid 4.030 x 1.090RCH, 3.400stroke,5.400rod,0.927pin,-6.2cc,437g,10.4CR, 2618
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -6.2cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 437g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
