Mahle Motorsport 930249530 - Mahle MS Piston Set 408ci 4.030in Bore 4in Stroke 6.250in Rod .927 Pin -6.5cc 9.5 CR - Set of 8
Mahle Motorsport 930249530 - Mahle MS Piston Set 408ci 4.030in Bore 4in Stroke 6.250in Rod .927 Pin -6.5cc 9.5 CR - Set of 8
SKU: DGJH-930249530
Regular price
$800.99 USD
Regular price
$852.70 USD
Sale price
$800.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

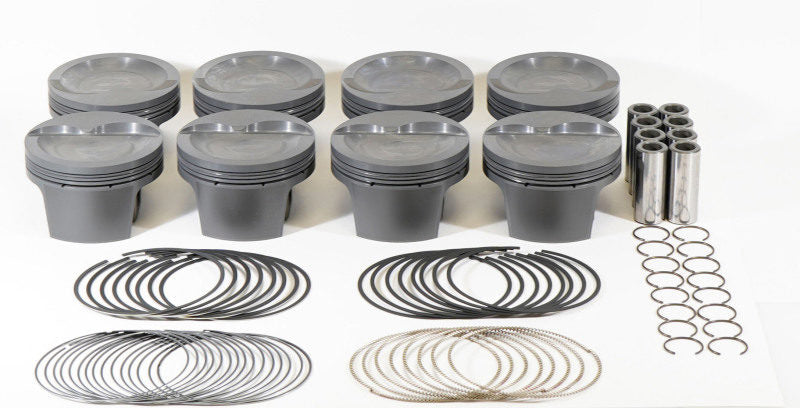

Mahle Motorsport 930249530 - Mahle MS Piston Set 408ci 4.030in Bore 4in Stroke 6.250in Rod .927 Pin -6.5cc 9.5 CR - Set of 8
Piston (set) - SMALL BLOCK FORD INVERTED DOME
408cid 4.030 x 1.245CH, 4.000stroke,6.250rod,0.927pin,-26cc,434g,9.5CR, 2618
Piston Mass: 434g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -26cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Inverted Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
