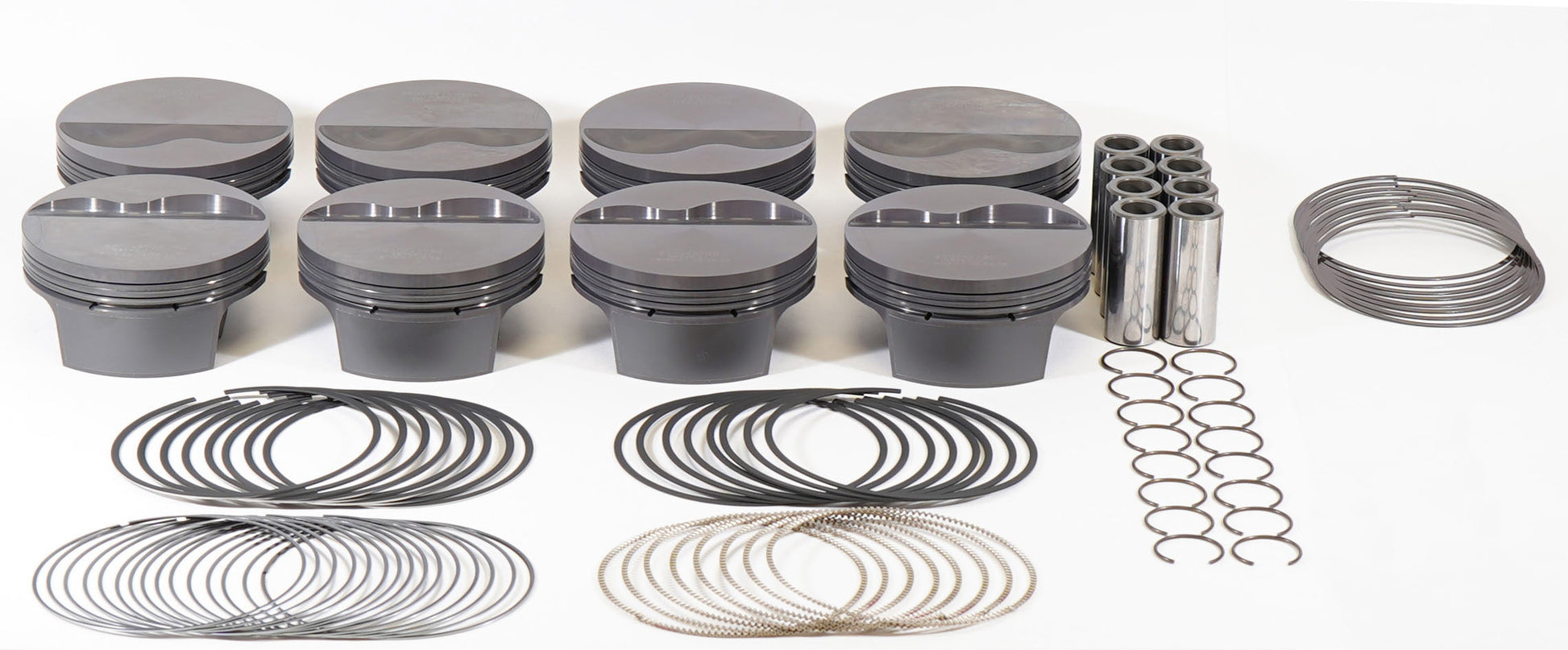

Mahle Motorsport 930244740 - Mahle MS Piston Set SBF 348ci 4.040in Bore 3.4in Stroke 5.4in Rod .927 Pin -6cc 10.0 CR Set of 8
Mahle Motorsport 930244740 - Mahle MS Piston Set SBF 348ci 4.040in Bore 3.4in Stroke 5.4in Rod .927 Pin -6cc 10.0 CR Set of 8
SKU: DGJH-930244740
Regular price
$678.99 USD
Regular price
$776.57 USD
Sale price
$678.99 USD
Shipping calculated at checkout.
4 in stock
Quantity
Couldn't load pickup availability
Mahle Motorsport 930244740 - Mahle MS Piston Set SBF 348ci 4.040in Bore 3.4in Stroke 5.4in Rod .927 Pin -6cc 10.0 CR Set of 8
Piston and Ring - PowerPak - Forged - Flat Top - 4.040 in Bore - 1.090 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 6.50 cc - Small Block Ford - Kit
349cid 4.040 x 1.090CH, 3.400stroke,5.400rod,0.927pin,-6.5cc,405g,10.1CR, 4032
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 405g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -6.5cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
