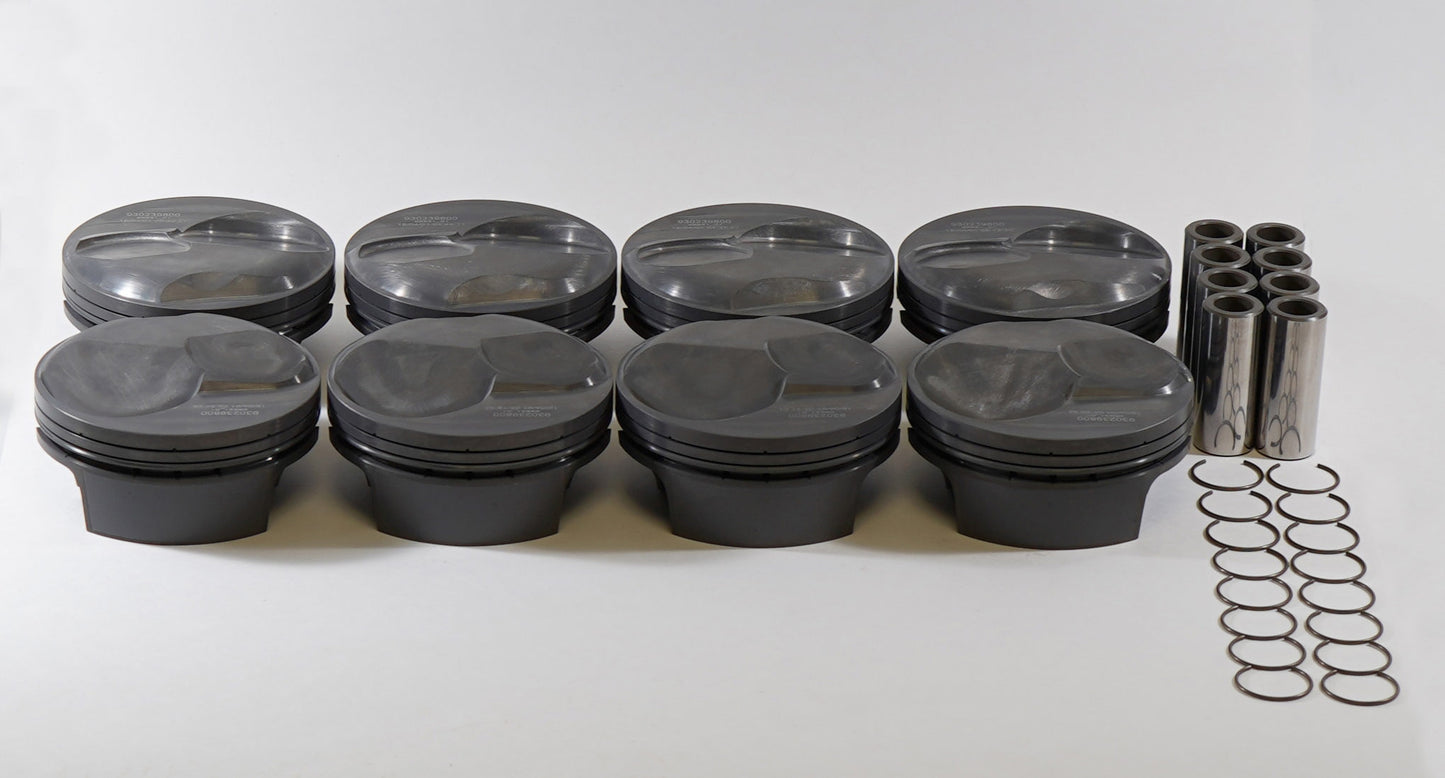

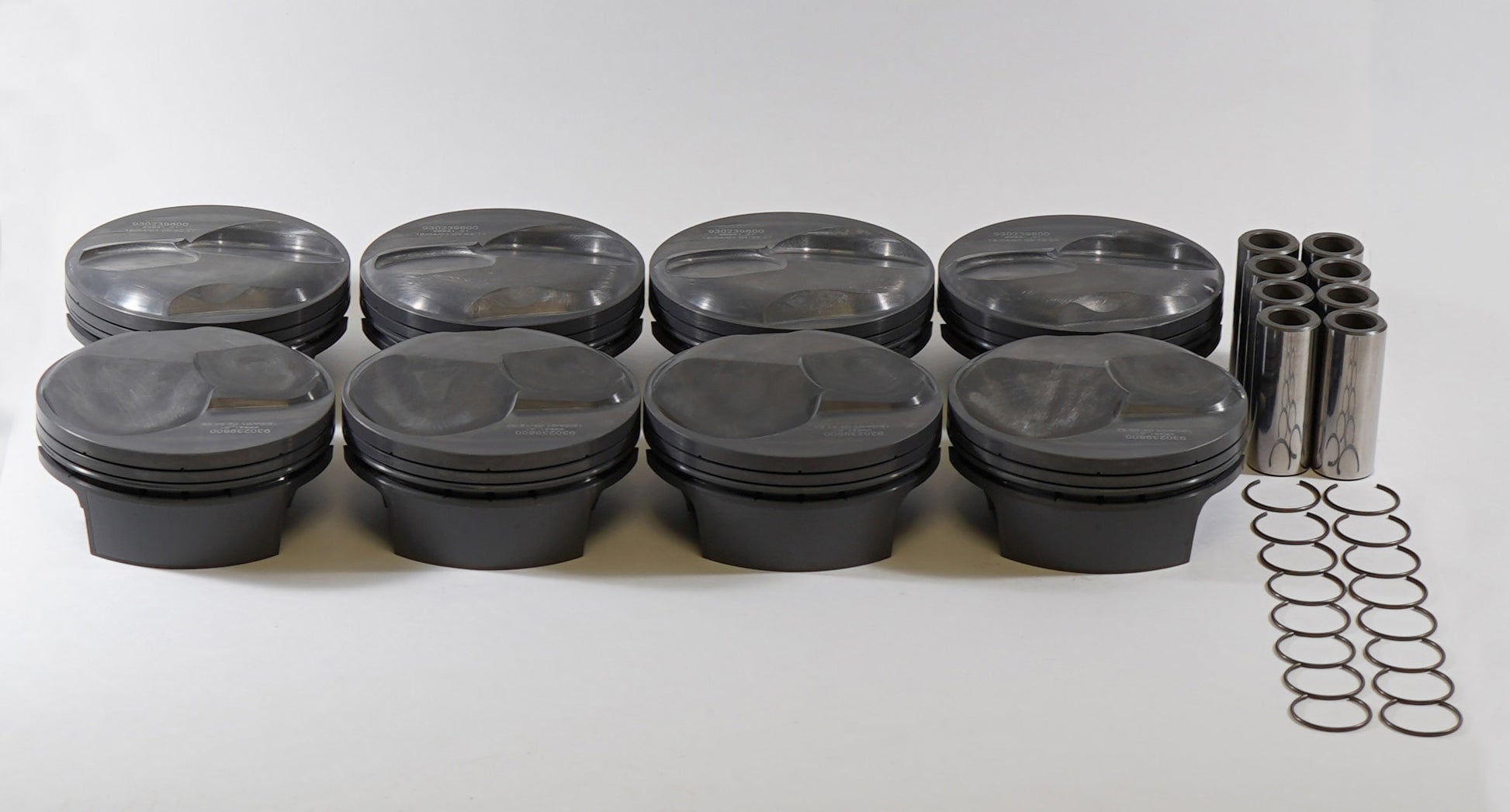

Mahle Motorsport 930240010T - Piston (set)
Mahle Motorsport 930240010T - Piston (set)
SKU: DGJH-930240010T
Regular price
$1,254.99 USD
Regular price
$1,483.06 USD
Sale price
$1,254.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930240010T - Piston (set)
Piston (set) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 20 Deg
568cid 4.610 x 1.270CH, 4.250stroke,6.385rod,0.990pin,28.0cc,647g,15.5CR, 2618, TBC coated
Clip Style: Round Wire
Pins Included: Y
Rings Included: N
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 647g
Pin Wall Thickness: 0.18
Clips Included: Y
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 28.0cc
UCR Thickness: 0.043
