Mahle Motorsport 930240010-1 - Piston (each)
Mahle Motorsport 930240010-1 - Piston (each)
SKU: DGJH-930240010-1
Regular price
$102.99 USD
Regular price
$121.41 USD
Sale price
$102.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930240010-1 - Piston (each)

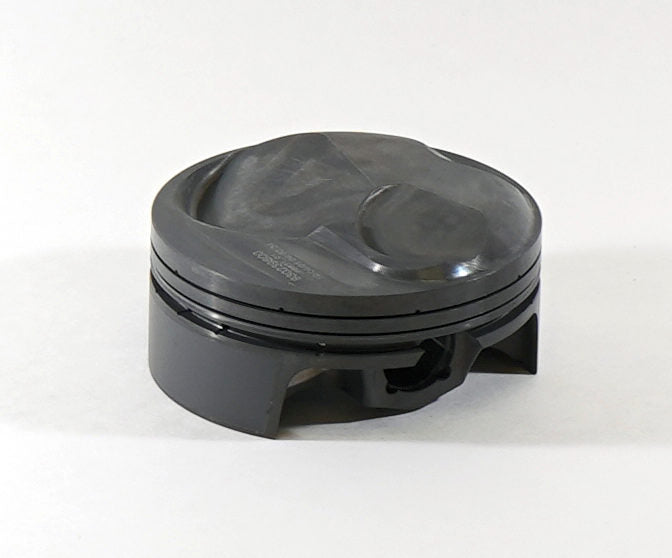

Piston (ea) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 20 Deg
568cid 4.610 x 1.270CH, 4.250stroke,6.385rod,0.990pin,28.0cc,647g,15.5CR, 2618, SINGLE PISTON
Pin Diameter: 25.146mm
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 647g
Pins Included: N
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Package Quantity: Sold as a set of 1
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 28.0cc
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 0.043
Rings Included: N
Piston Style: Dome, w/ INT valve relief
