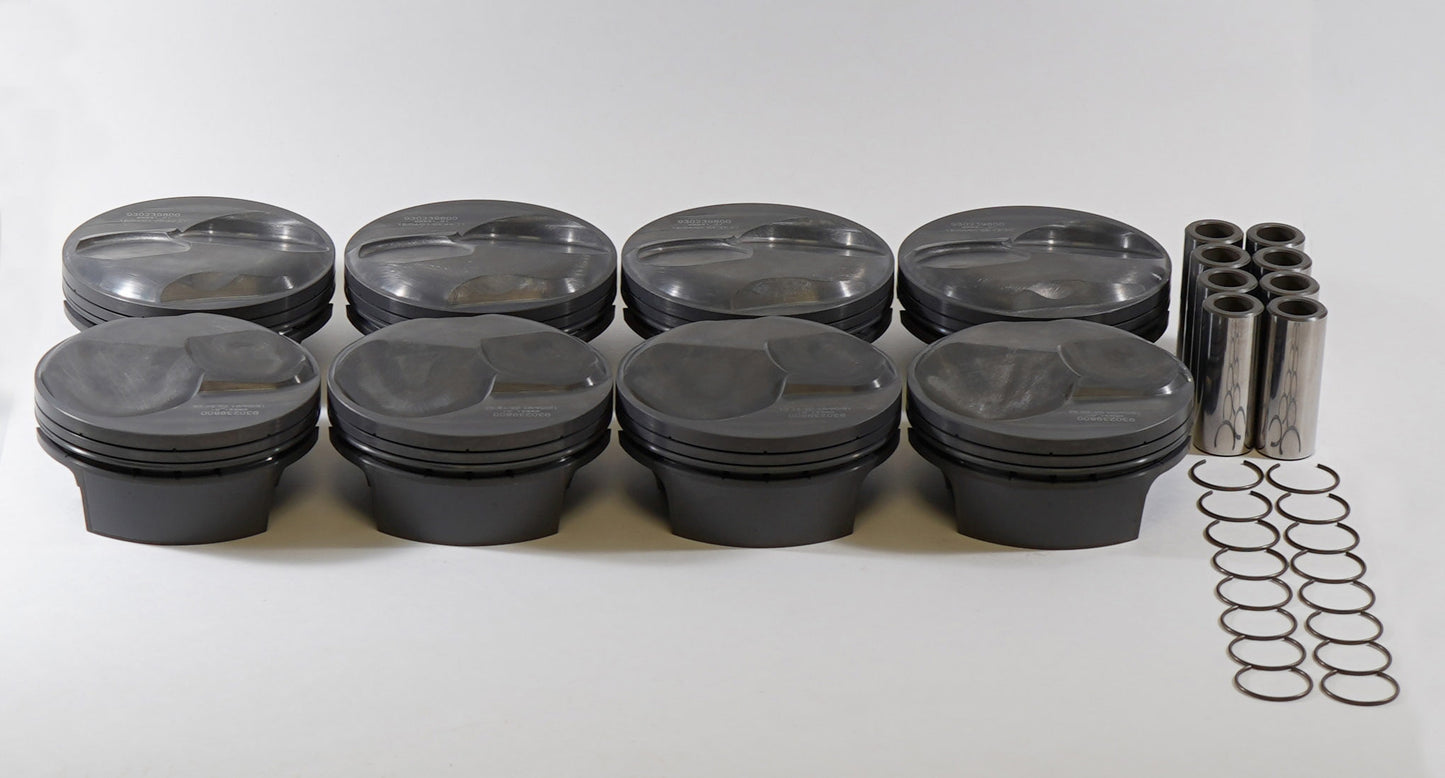

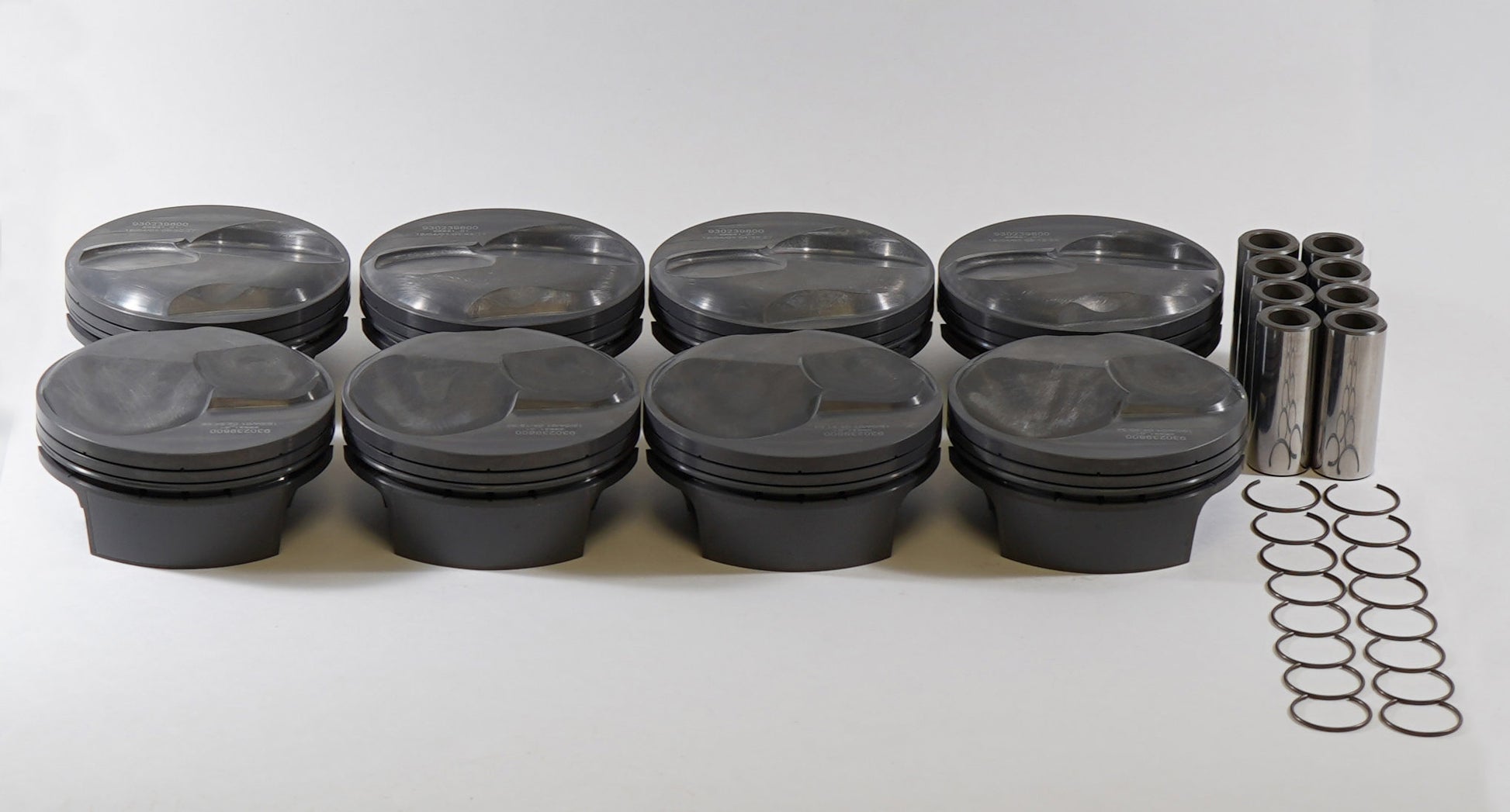

Mahle Motorsport 930239705T - Piston (set)
Mahle Motorsport 930239705T - Piston (set)
SKU: DGJH-930239705T
Regular price
$1,273.99 USD
Regular price
$1,505.80 USD
Sale price
$1,273.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930239705T - Piston (set)
Piston (set) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 20 Deg
583cid 4.605 x 1.060RCH, 4.375stroke,6.535rod,0.990pin,28.0cc,597g,15.9CR, 2618, TBC coated
Pin Length: 74.42mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 28.0cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 0.043
Rings Included: N
Pin Material: Steel
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 597g
Pins Included: Y
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Mass: 171g
