Mahle Motorsport 930239605 - Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.605in. Bore/15.6 CR/583ci/4.375in. Stroke
Mahle Motorsport 930239605 - Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.605in. Bore/15.6 CR/583ci/4.375in. Stroke
SKU: DGJH-930239605
Regular price
$1,028.99 USD
Regular price
$1,118.19 USD
Sale price
$1,028.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930239605 - Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.605in. Bore/15.6 CR/583ci/4.375in. Stroke

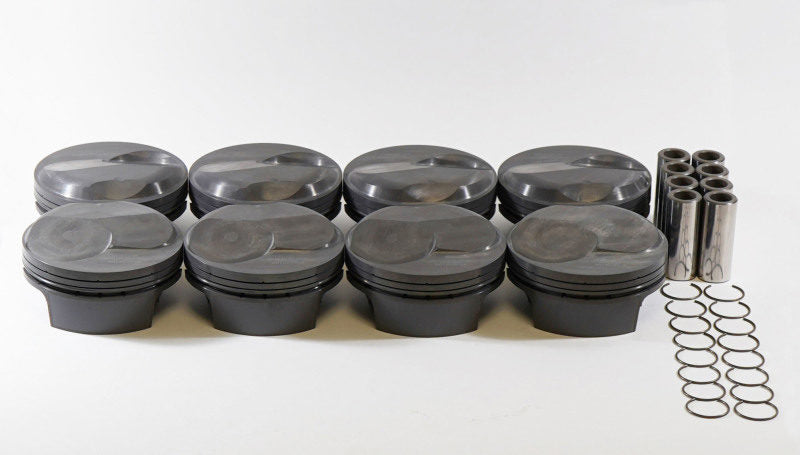

Piston (set) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 Deg/25 Deg
583cid 4.605 x 1.060RCH, 4.375stroke,6.535rod,0.990pin,47.0cc,621g,15.6CR, 2618
Clip Style: Round Wire
Pins Included: Y
Rings Included: N
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 621g
Pin Wall Thickness: 0.18
Clips Included: Y
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 47.0cc
UCR Thickness: 0.043
