Mahle Motorsport 930239505 - Piston (set)
Mahle Motorsport 930239505 - Piston (set)
SKU: DGJH-930239505
Regular price
$1,028.99 USD
Regular price
$1,215.43 USD
Sale price
$1,028.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

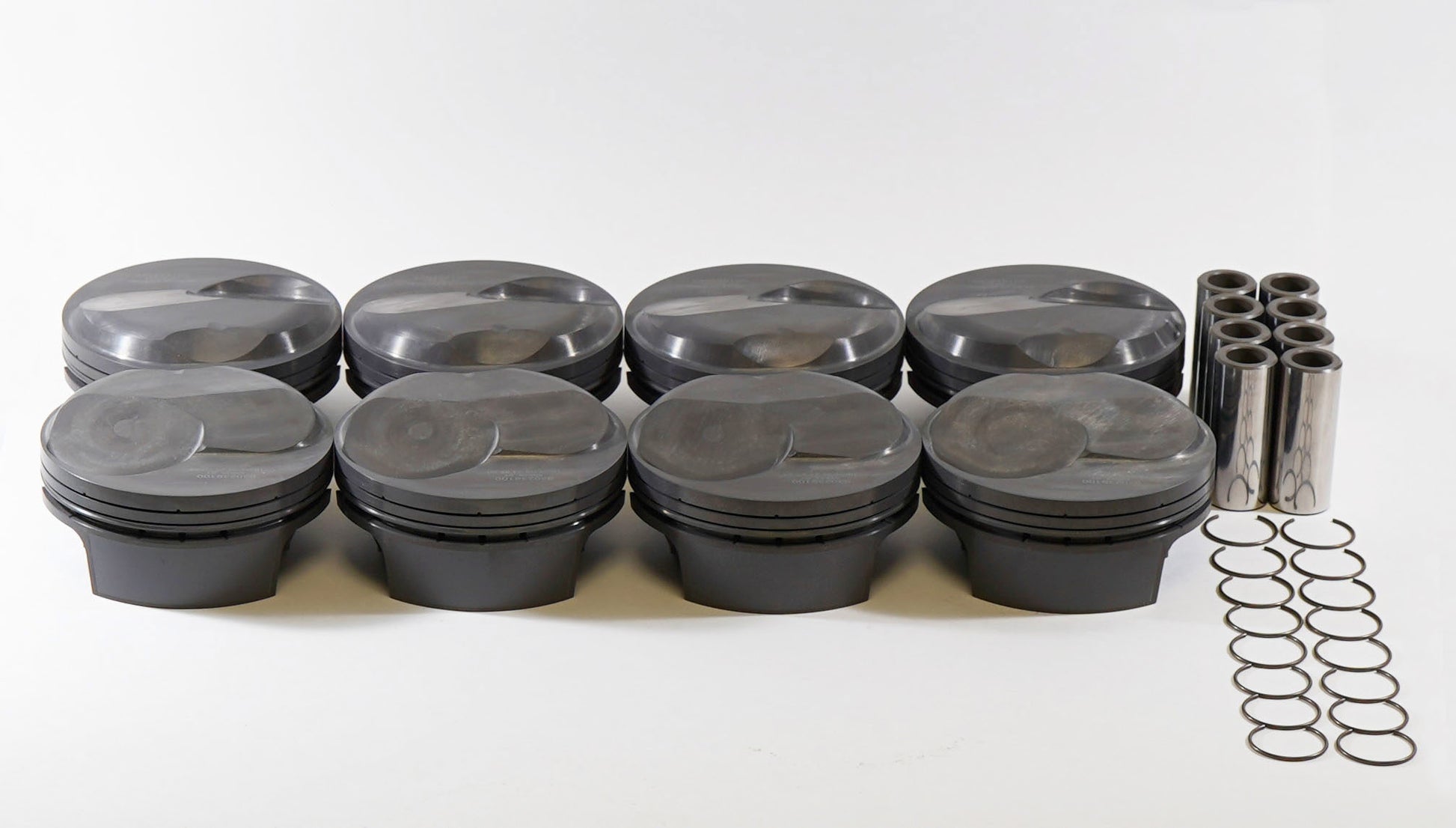

Mahle Motorsport 930239505 - Piston (set)
Piston (set) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 Deg/25 Deg
566cid 4.605 x 1.120RCH, 4.250stroke,6.535rod,0.990pin,47.1cc,635g,15.2CR, 2618
Crown Volume: 47.1cc
UCR Thickness: 0.043
Clip Style: Round Wire
Pins Included: Y
Rings Included: N
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: .043, .043, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 635g
Pin Wall Thickness: 0.18
Clips Included: Y
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
LCR Thickness: 0.043
