Mahle Motorsport 930239300 - Piston (set)
Mahle Motorsport 930239300 - Piston (set)
SKU: DGJH-930239300
Regular price
$954.99 USD
Regular price
$1,192.69 USD
Sale price
$954.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability

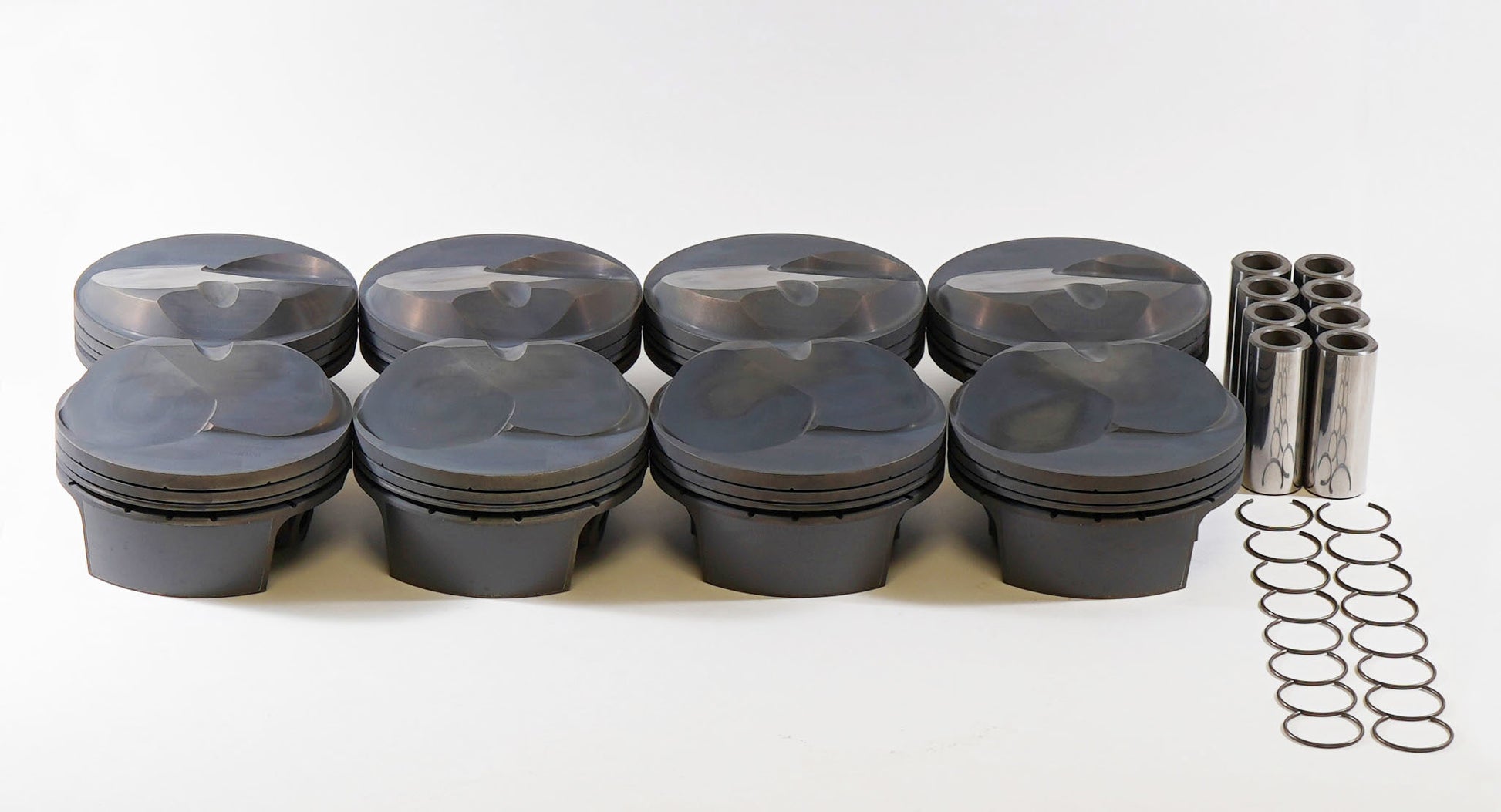

Mahle Motorsport 930239300 - Piston (set)
Piston - Elite Sportsman - Forged - Dome - 4.600 in Bore - 1.270 in Compression Height - 0.043 x 0.043 x 3 mm Ring Grooves - Plus 47.10 cc - Big Block Chevy - Set of 8
565cid 4.600 x 1.270CH, 4.250stroke,6.385rod,0.990pin,47.1cc,668g,15.2CR, 2618
Piston Style: Dome, w/ INT valve relief
Package Quantity: Sold as a set of 8
Piston Material: Forged, 2618
Piston Mass: 668g
Pins Included: Y
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
OCR Thickness: 3.0mm
LCR Thickness: 0.043
Crown Volume: 47.1cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 0.043
Rings Included: N
Piston Ring Thickness: .043, .043, 3.0mm
