Mahle Motorsport 930239005-1 - Piston (each)
Mahle Motorsport 930239005-1 - Piston (each)
SKU: DGJH-930239005-1
Regular price
$102.99 USD
Regular price
$121.41 USD
Sale price
$102.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930239005-1 - Piston (each)

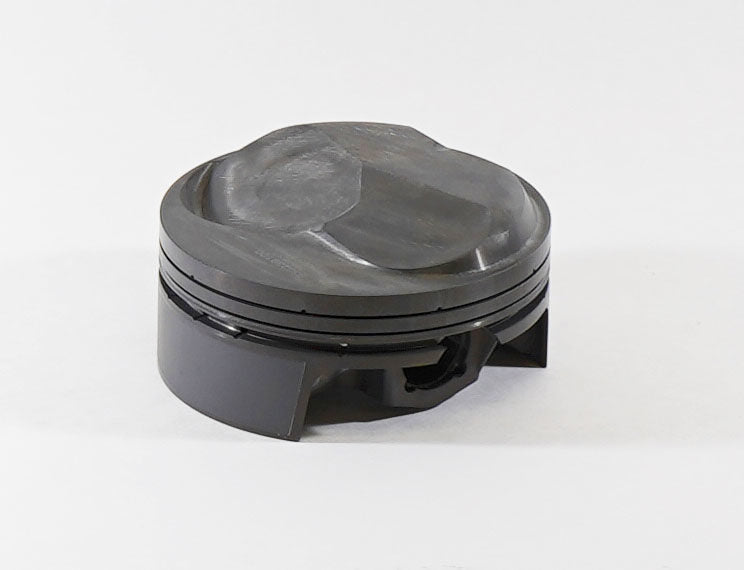

Piston (ea) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 Deg/25 Deg
583cid 4.605 x 1.060RCH, 4.375stroke,6.535rod,0.990pin,40.0cc,602g,14.4CR, 2618, SINGLE PISTON
Piston Mass: 602g
Pins Included: N
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Material: Steel
Pin Mass: 171g
Pin Length: 74.42mm
Pin Diameter: 25.146mm
LCR Thickness: 0.043
OCR Thickness: 3.0mm
Piston Style: Dome, w/ INT valve relief
Crown Volume: 40.0cc
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 0.043
Rings Included: N
Piston Ring Thickness: .043, .043, 3.0mm
Package Quantity: Sold as a set of 1
Piston Material: Forged, 2618
