Mahle Motorsport 930230010 - Mahle MS Pistons LSX 417cid 4.010in Bore 4.125in Stk 6.125in Rod .927 Pin -20cc Dish 9.7CR Set of 8
Mahle Motorsport 930230010 - Mahle MS Pistons LSX 417cid 4.010in Bore 4.125in Stk 6.125in Rod .927 Pin -20cc Dish 9.7CR Set of 8
SKU: DGJH-930230010
Regular price
$847.99 USD
Regular price
$904.37 USD
Sale price
$847.99 USD
Shipping calculated at checkout.
6 in stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

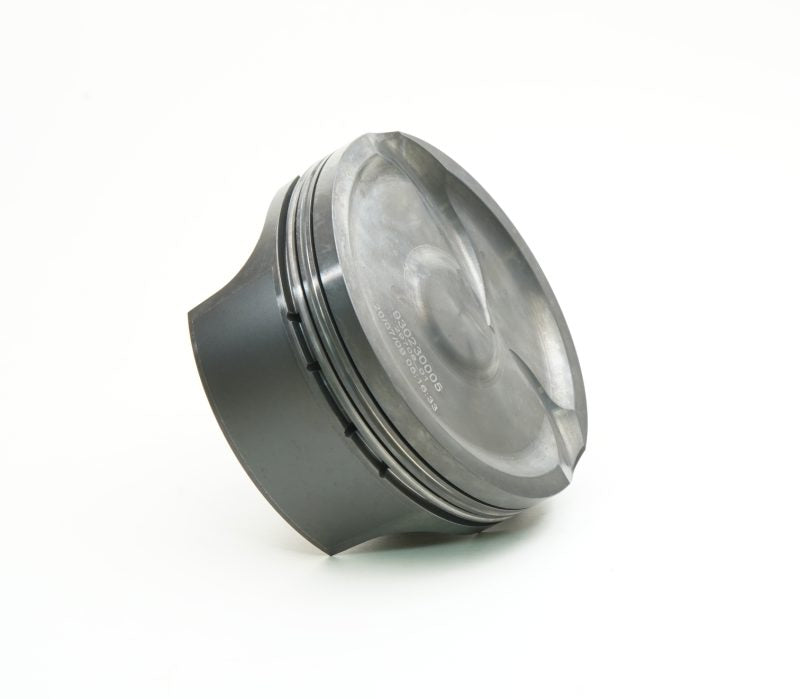

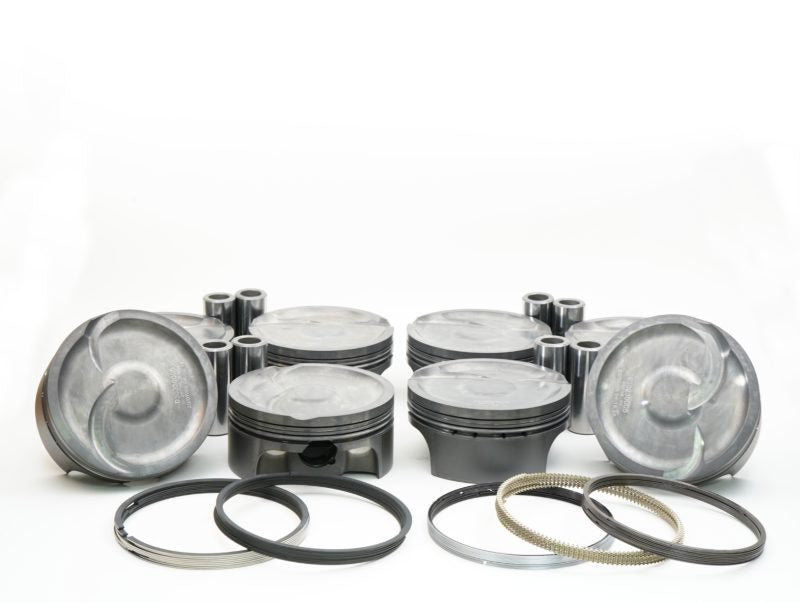

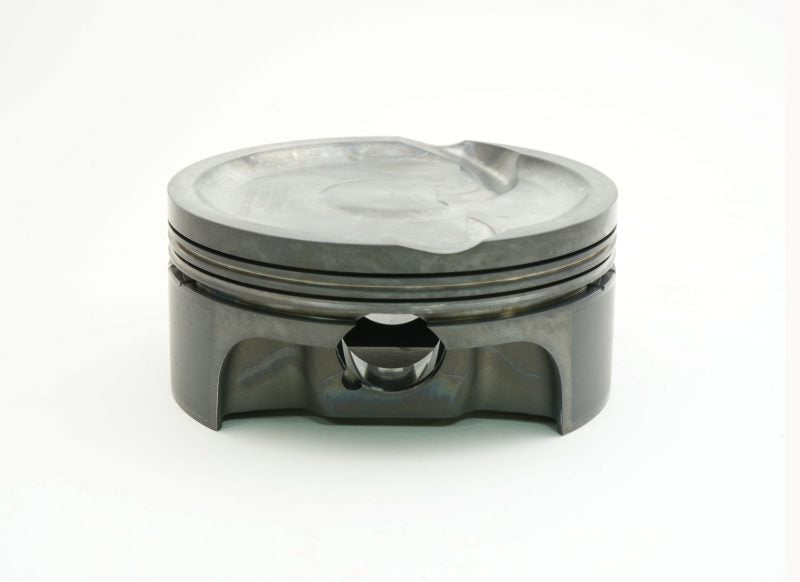

Mahle Motorsport 930230010 - Mahle MS Pistons LSX 417cid 4.010in Bore 4.125in Stk 6.125in Rod .927 Pin -20cc Dish 9.7CR Set of 8
Piston (set) - LS 6.0L DISH
417cid 4.010 x 1.050RCH, 4.125stroke,6.125rod,0.927pin,-20.0cc,392g,10.2CR, 2618
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 392g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 125g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -20.0cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
