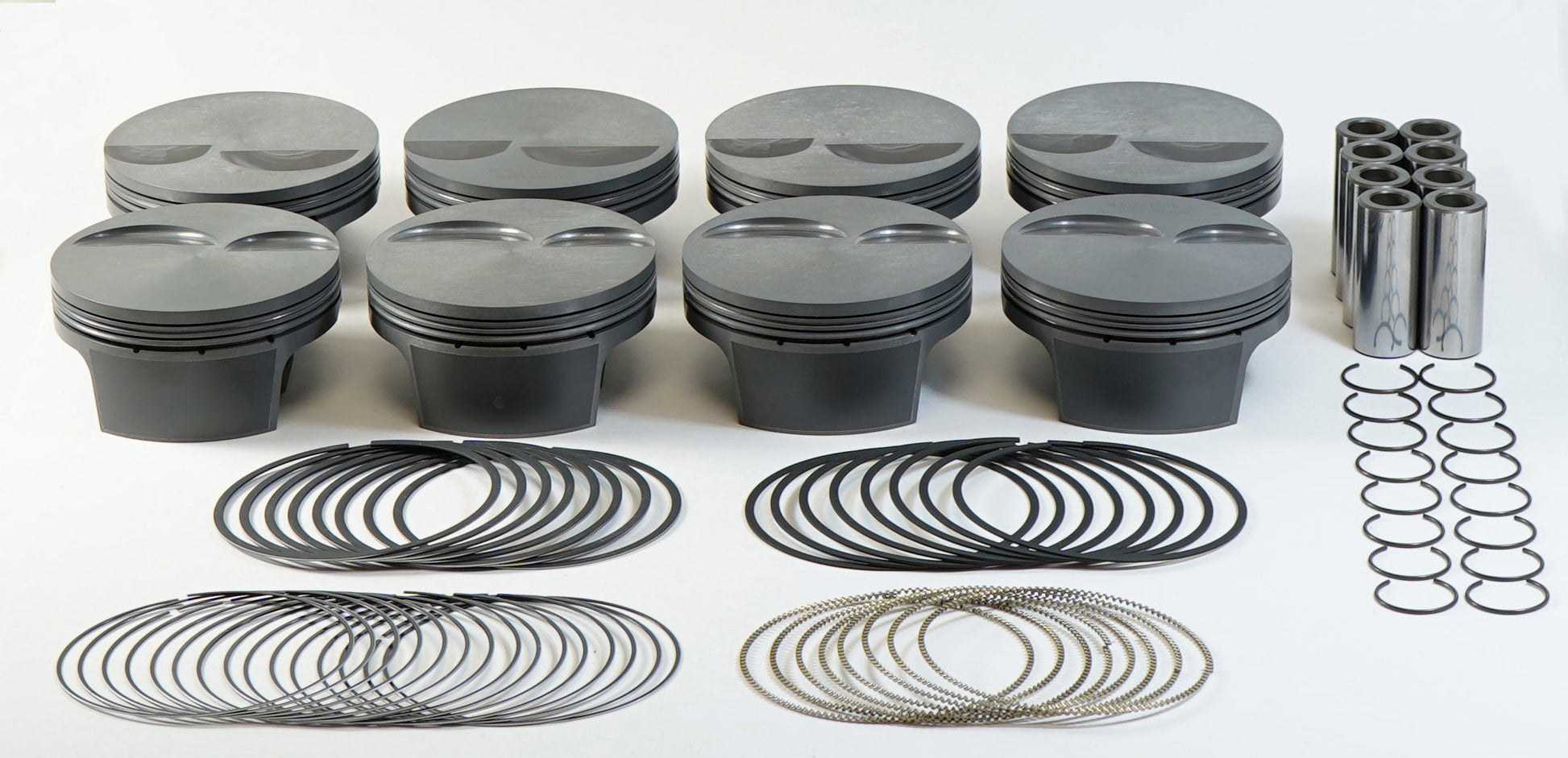

Mahle Motorsport 930221635 - Mahle MS Piston Set GM LS 430ci 4.135in Bore 4in Stk 6.125in Rod .927 Pin -3cc 12.4 CR Set of 8
Mahle Motorsport 930221635 - Mahle MS Piston Set GM LS 430ci 4.135in Bore 4in Stk 6.125in Rod .927 Pin -3cc 12.4 CR Set of 8
SKU: DGJH-930221635
Regular price
$744.99 USD
Regular price
$790.44 USD
Sale price
$744.99 USD
Shipping calculated at checkout.
3 in stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930221635 - Mahle MS Piston Set GM LS 430ci 4.135in Bore 4in Stk 6.125in Rod .927 Pin -3cc 12.4 CR Set of 8
Piston (set) - LS 7.0L FLAT TOP & DISH - compatible with LS7 style heads
430cid 4.135 x 1.105CH, 4.000stroke,6.125rod,0.927pin,-2.5cc,441g,11.8CR, 4032
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 441g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -2.5cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.168
