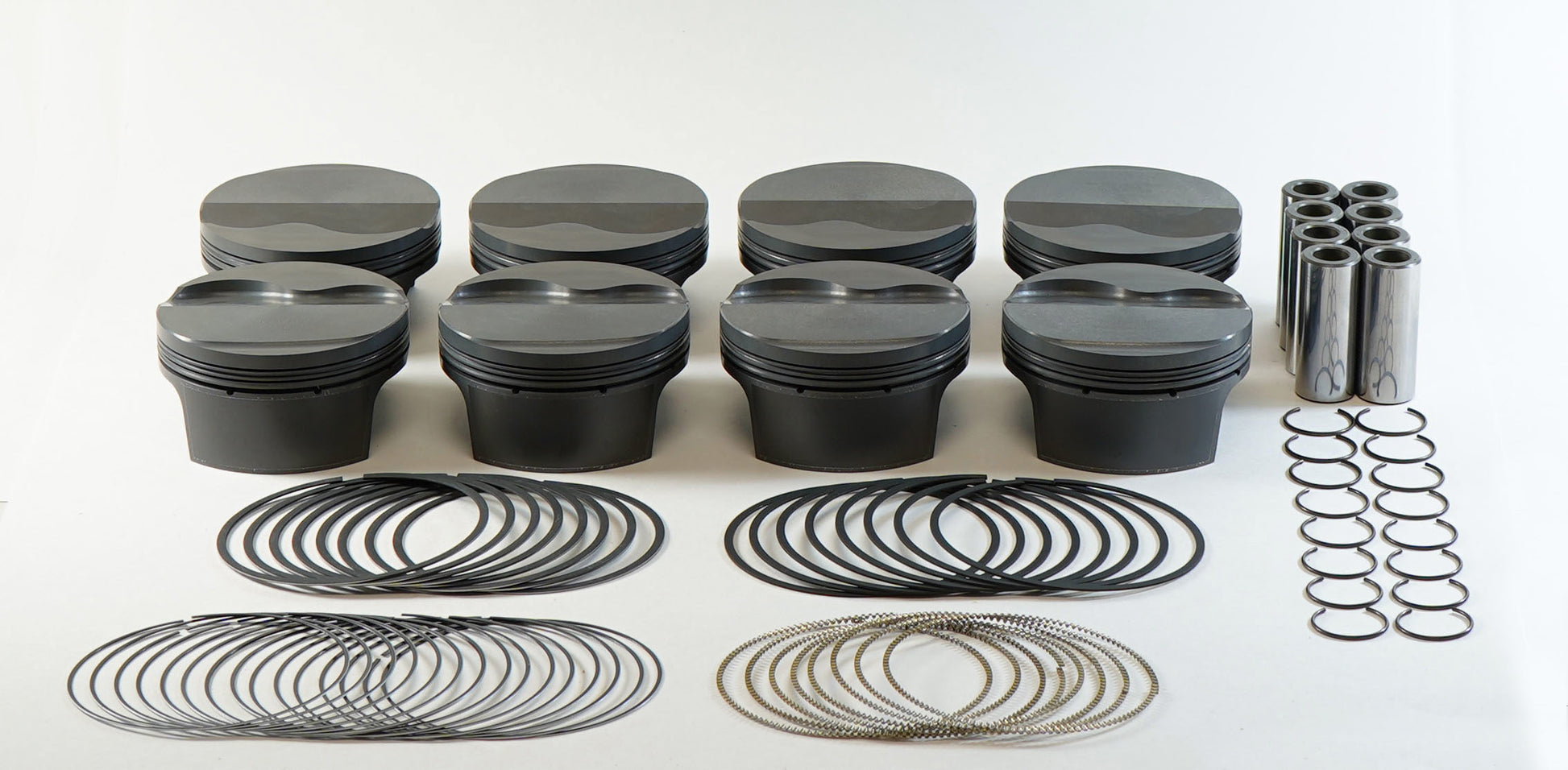

Mahle Motorsport 930220180T - Piston (set)
Piston (set) - LS 5.3L DOME - compatible with LS1/2/6 style cathedral port heads
325cid 3.780 x 1.299CH, 3.622stroke,6.125rod,0.927pin,14.0cc,450g,12.4CR, 2618, TBC coated
Clip Style: Round Wire
Pin Wall Thickness: 0.188
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 450g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 128g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 14.0cc
UCR Thickness: 1.0mm
