Mahle Motorsport 930220080T - Piston (set)
Mahle Motorsport 930220080T - Piston (set)
SKU: DGJH-930220080T
Regular price
$1,115.99 USD
Regular price
$1,318.24 USD
Sale price
$1,115.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

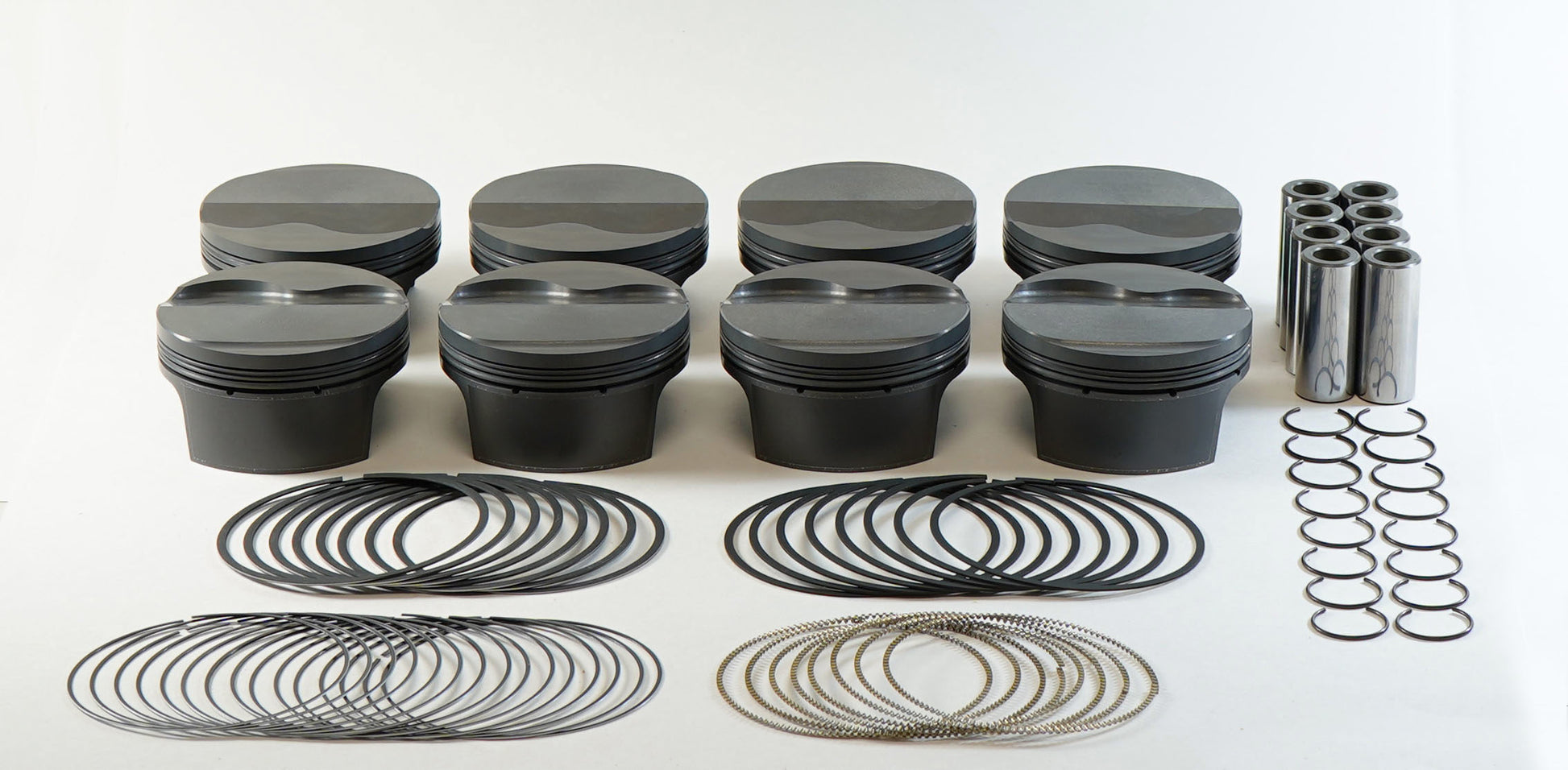

Mahle Motorsport 930220080T - Piston (set)
Piston (set) - LS 5.3L DOME - compatible with LS1/2/6 style cathedral port heads
325cid 3.780 x 1.304CH, 3.622stroke,6.125rod,0.927pin,8.5cc,440g,11.4CR, 2618, TBC coated
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 440g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 8.5cc
UCR Thickness: 1.0mm
