Mahle Motorsport 930220080-1 - Piston (each)
Mahle Motorsport 930220080-1 - Piston (each)
SKU: DGJH-930220080-1
Regular price
$85.99 USD
Regular price
$100.75 USD
Sale price
$85.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

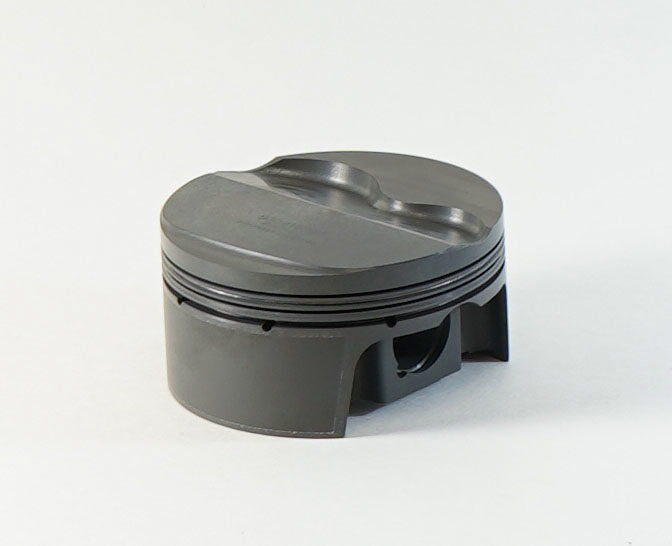

Mahle Motorsport 930220080-1 - Piston (each)
Piston (ea) - LS 5.3L DOME - compatible with LS1/2/6 style cathedral port heads
325cid 3.780 x 1.304CH, 3.622stroke,6.125rod,0.927pin,8.5cc,440g,11.4CR, 2618, SINGLE PISTON
Pin Length: 58.1mm
UCR Material: 9254 Steel
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 8.5cc
Clips Included: N
Clip Style: Round Wire
UCR Thickness: 1.0mm
UCR Coating: HV385
Pin Mass: 118g
Rings Included: N
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 440g
Pins Included: N
Pin Wall Thickness: 0.168
Pin Style: Floating
Pin Material: Steel
Pin Diameter: 23.55mm
