Mahle Motorsport 930219008 - Mahle MS Piston Set GM LS 347ci 3.908in Bore 3.622stk 6.125in Rod .927 Pin -16cc 8.9 CR Set of 8
Mahle Motorsport 930219008 - Mahle MS Piston Set GM LS 347ci 3.908in Bore 3.622stk 6.125in Rod .927 Pin -16cc 8.9 CR Set of 8
SKU: DGJH-930219008
Regular price
$819.99 USD
Regular price
$874.00 USD
Sale price
$819.99 USD
Shipping calculated at checkout.
3 in stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930219008 - Mahle MS Piston Set GM LS 347ci 3.908in Bore 3.622stk 6.125in Rod .927 Pin -16cc 8.9 CR Set of 8

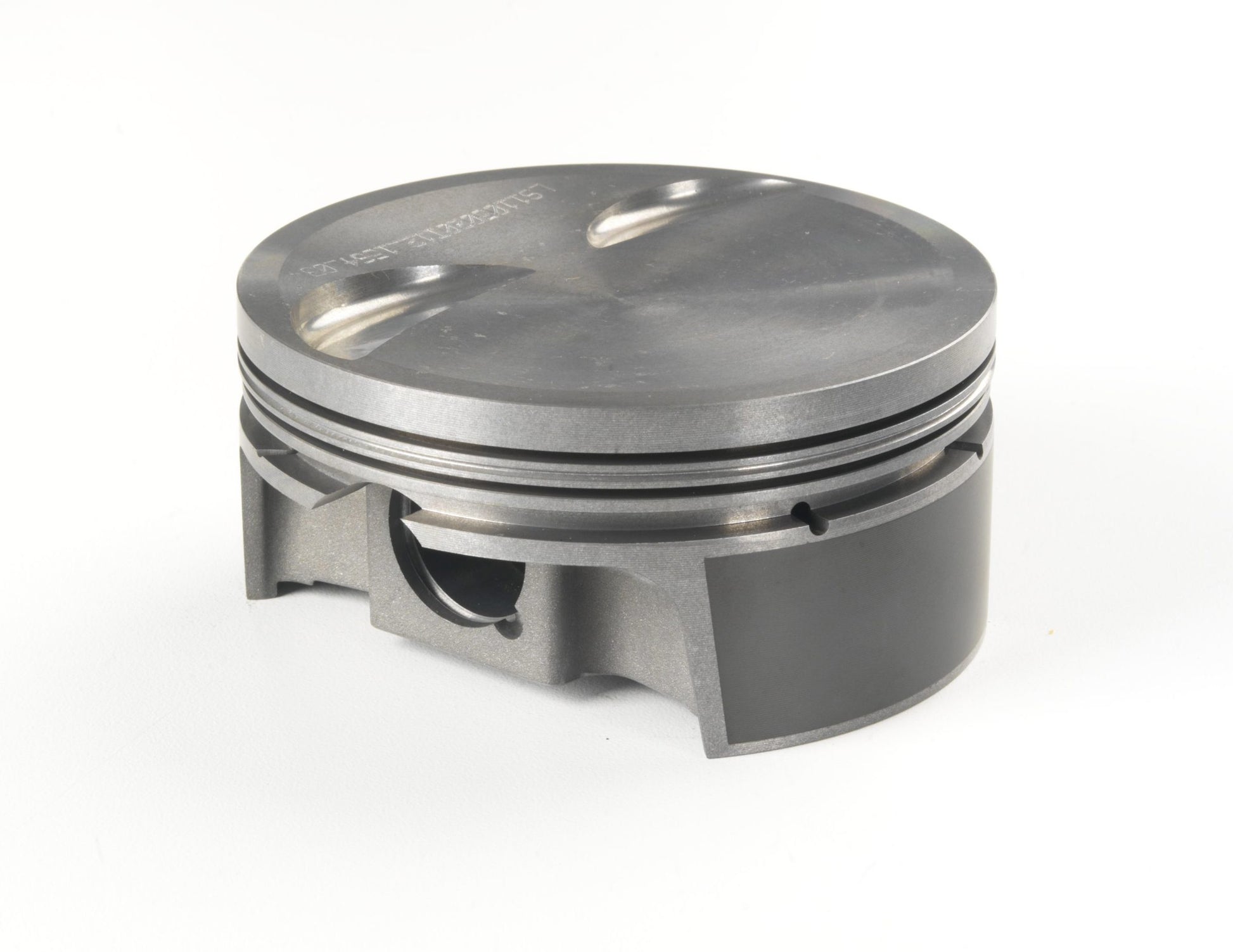

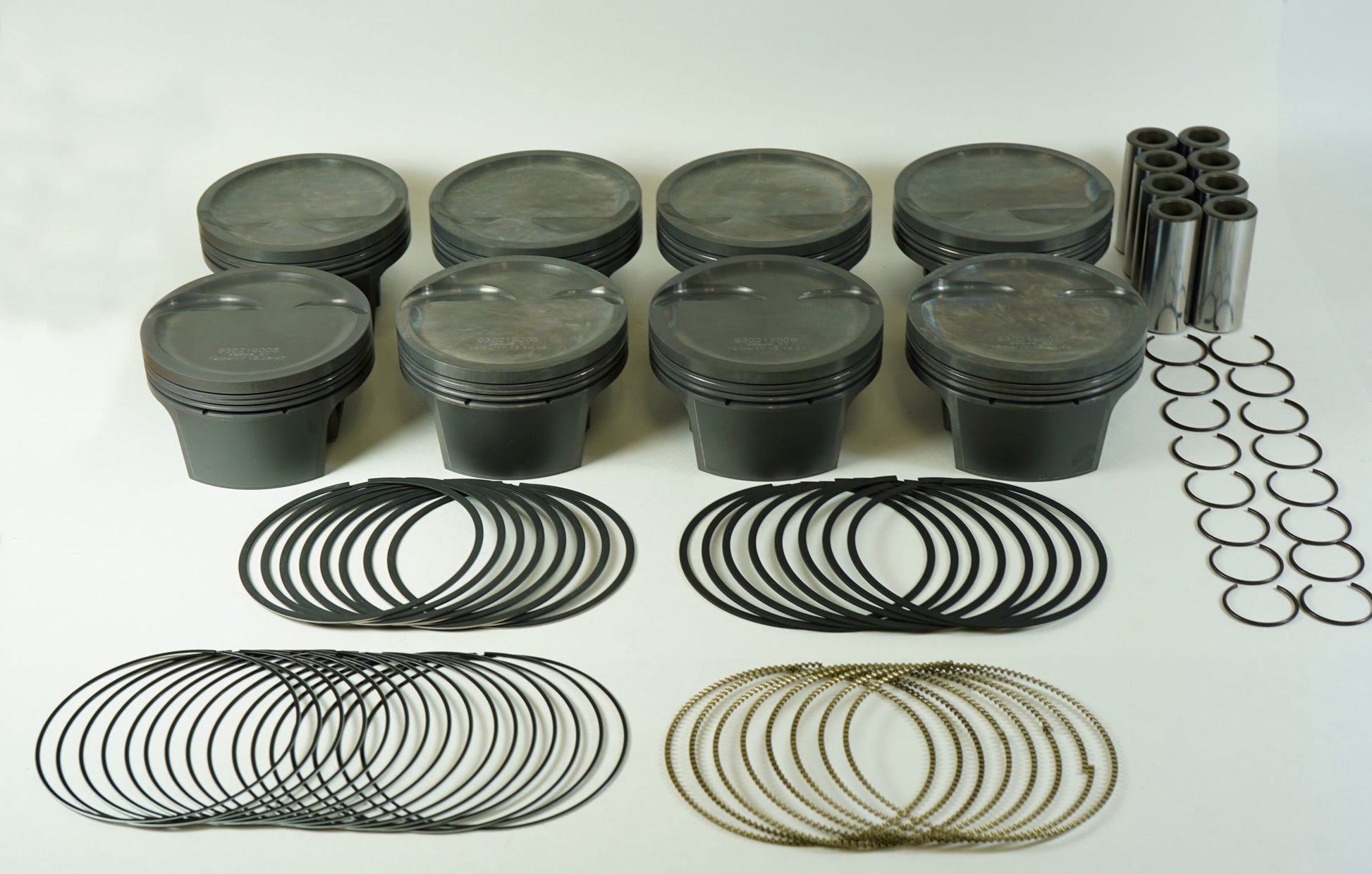

Piston (set) - LS 5.7L FLAT TOP & DISH
348cid 3.908 x 1.314CH, 3.622stroke,6.125rod,0.927pin,-16.0cc,414g,9.0CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Dish, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 2618
Piston Mass: 414g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -16.0cc
UCR Thickness: 1.0mm
