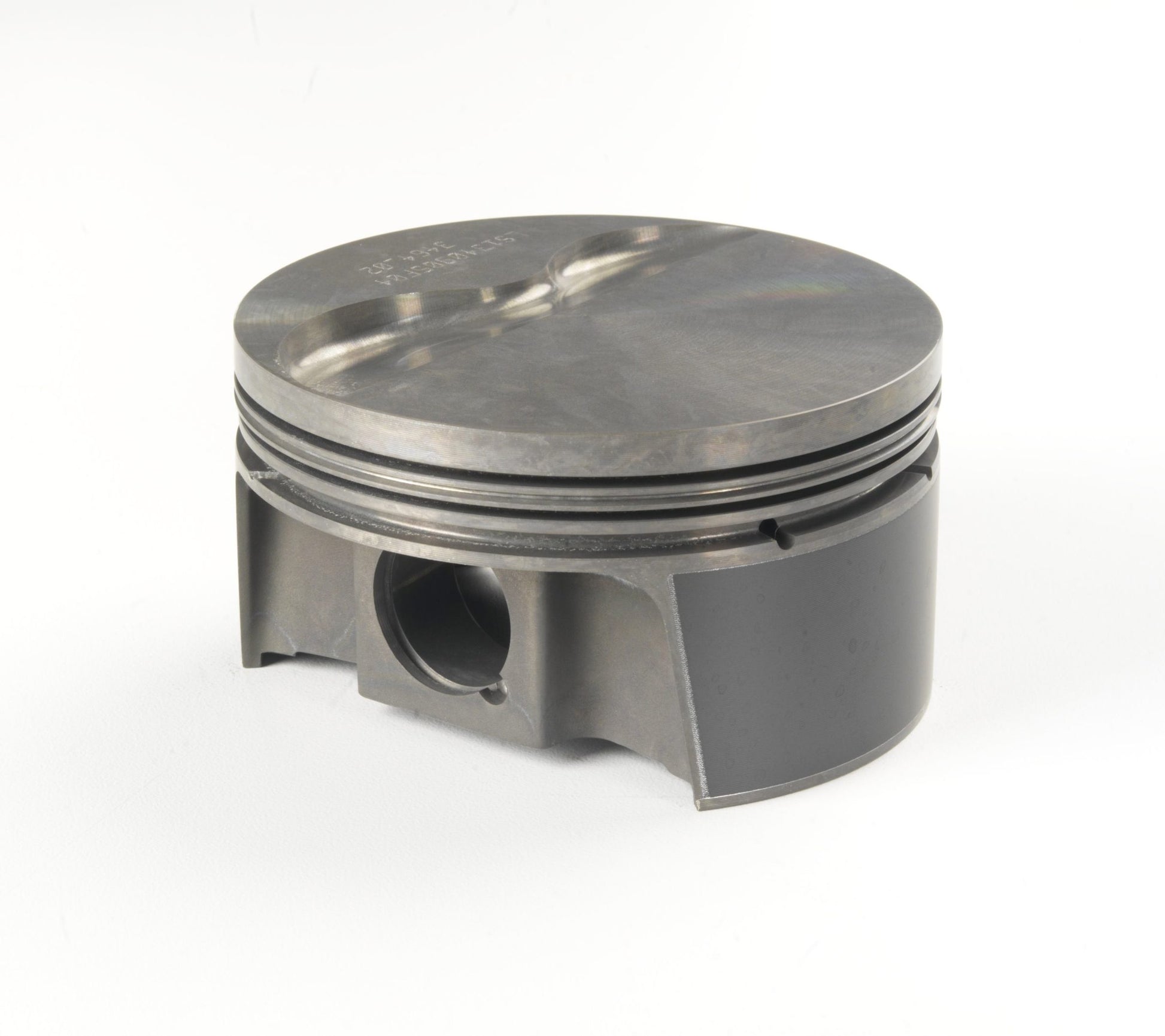

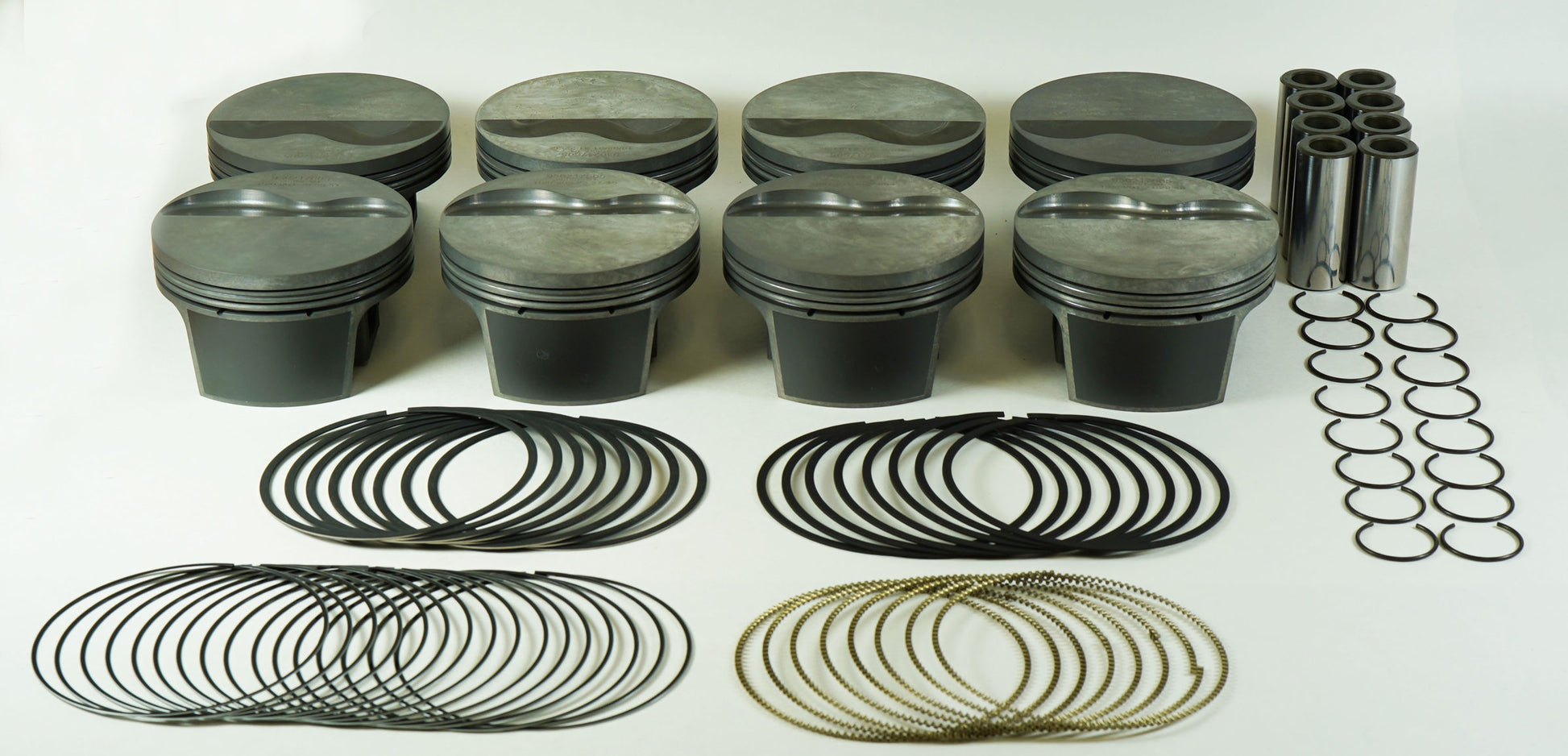

Mahle Motorsport 930217905 - Mahle MS Piston Set GM LS 347ci 3.905in Bore 3.622in Stk 6.125in Rod .927 Pin -4cc 10.1 CR Set of 8
Mahle Motorsport 930217905 - Mahle MS Piston Set GM LS 347ci 3.905in Bore 3.622in Stk 6.125in Rod .927 Pin -4cc 10.1 CR Set of 8
SKU: DGJH-930217905
Regular price
$695.99 USD
Regular price
$795.98 USD
Sale price
$695.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930217905 - Mahle MS Piston Set GM LS 347ci 3.905in Bore 3.622in Stk 6.125in Rod .927 Pin -4cc 10.1 CR Set of 8
Piston and Ring - PowerPak - Forged - Flat Top - 3.905 in Bore - 1.314 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 4.00 cc - GM LS-Series - Kit
347cid 3.905 x 1.314CH, 3.622stroke,6.125rod,0.927pin,-4.1cc,408g,10.2CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 408g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -4.1cc
UCR Thickness: 1.0mm
