Mahle Motorsport 930217698 - Mahle MS Piston Set GM LS 345ci 3.898in Bore 3.622in Stk 6.098in Rod .945 Pin -4cc 10.1 CR Set of 8
Mahle Motorsport 930217698 - Mahle MS Piston Set GM LS 345ci 3.898in Bore 3.622in Stk 6.098in Rod .945 Pin -4cc 10.1 CR Set of 8
SKU: DGJH-930217698
Regular price
$724.99 USD
Regular price
$829.60 USD
Sale price
$724.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
Couldn't load pickup availability
Mahle Motorsport 930217698 - Mahle MS Piston Set GM LS 345ci 3.898in Bore 3.622in Stk 6.098in Rod .945 Pin -4cc 10.1 CR Set of 8

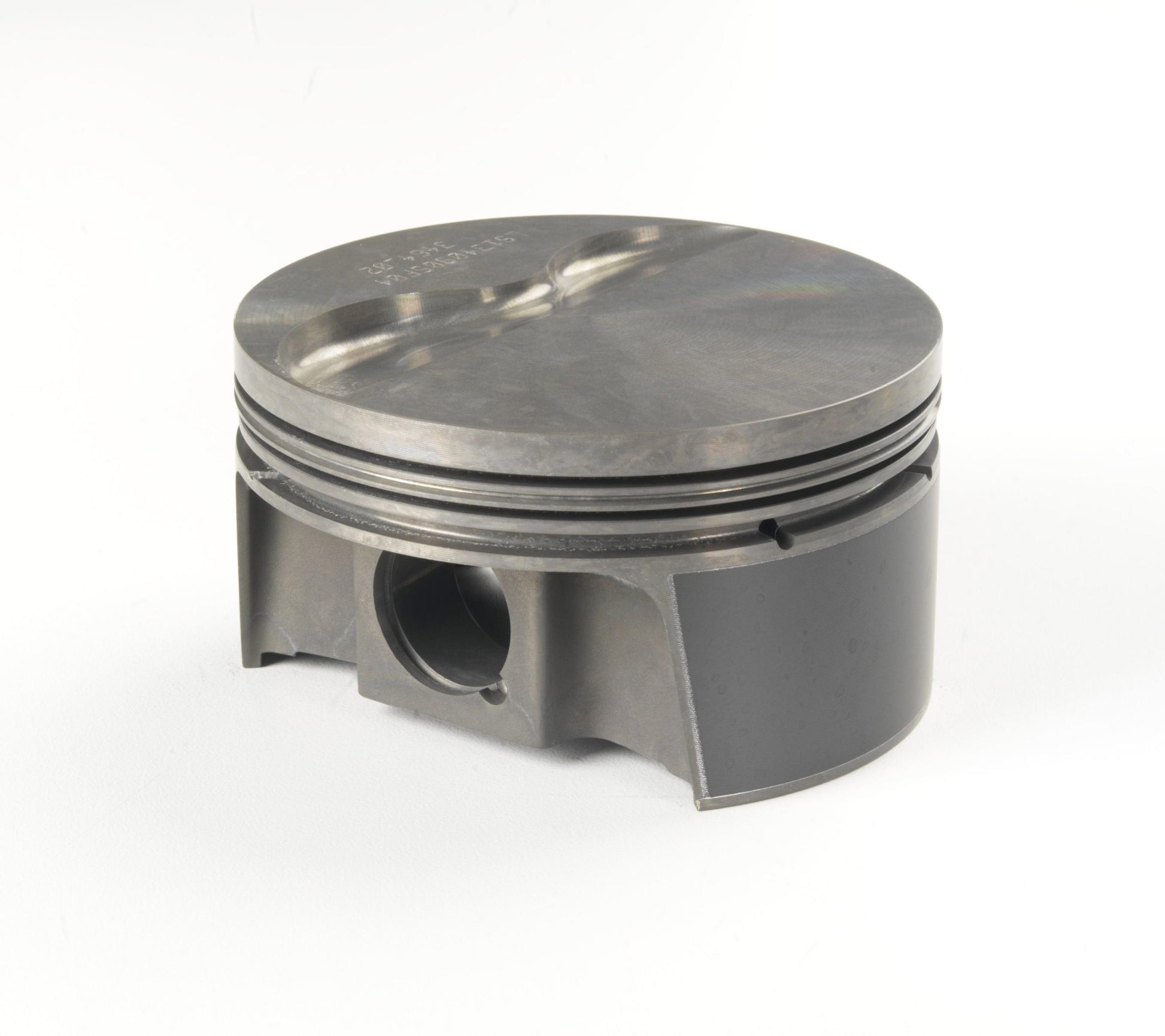

Piston and Ring - PowerPak - Forged - Flat Top - 3.898 in Bore - 1.340 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 4.00 cc - GM LS-Series - Kit
346cid 3.898 x 1.340CH, 3.622stroke,6.098rod,0.945pin,-4.1cc,407g,10.2CR, 4032
File Fit: Y
Crown Volume: -4.1cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.177
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 407g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 125g
Pin Length: 58.1mm
Pin Diameter: 24.0mm

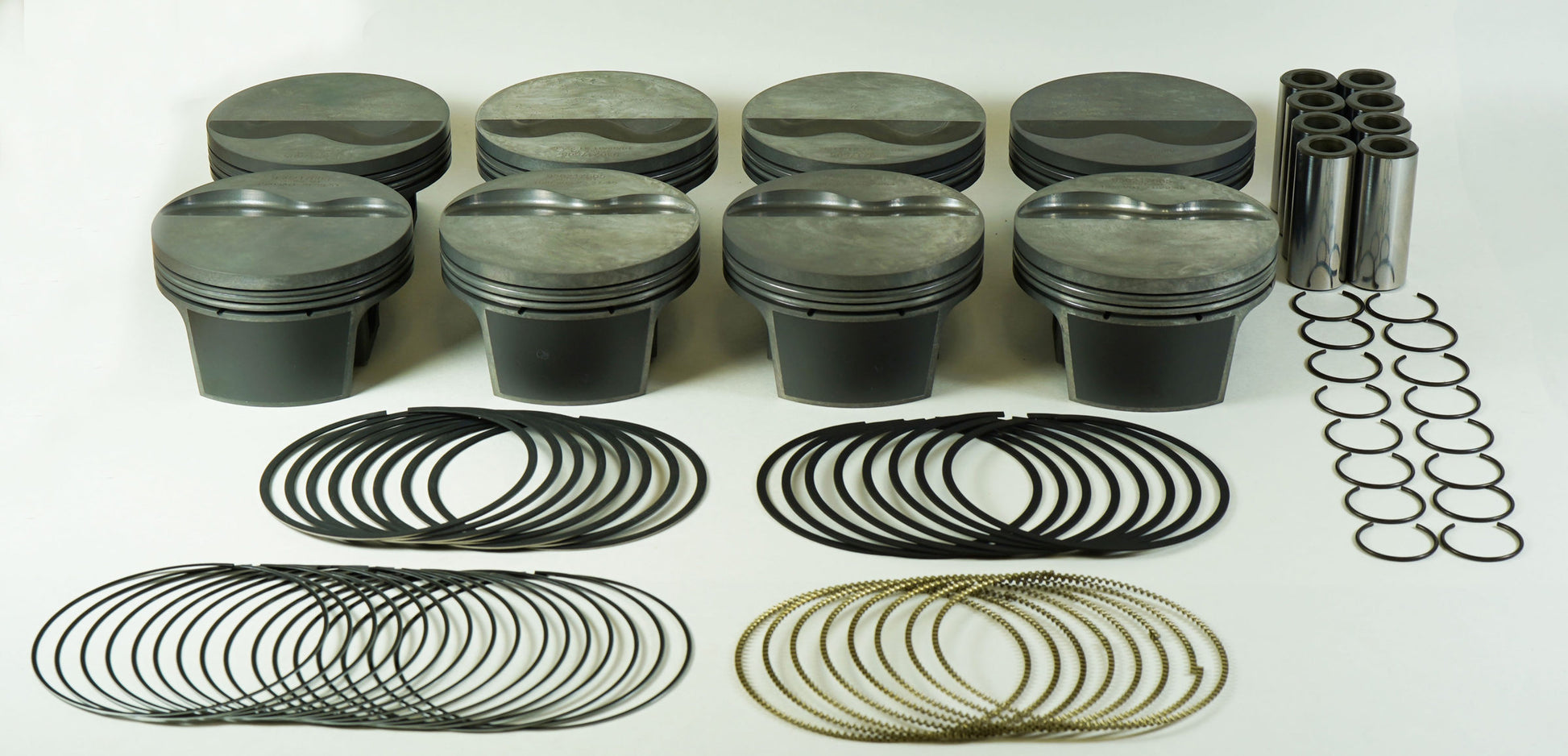

Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
