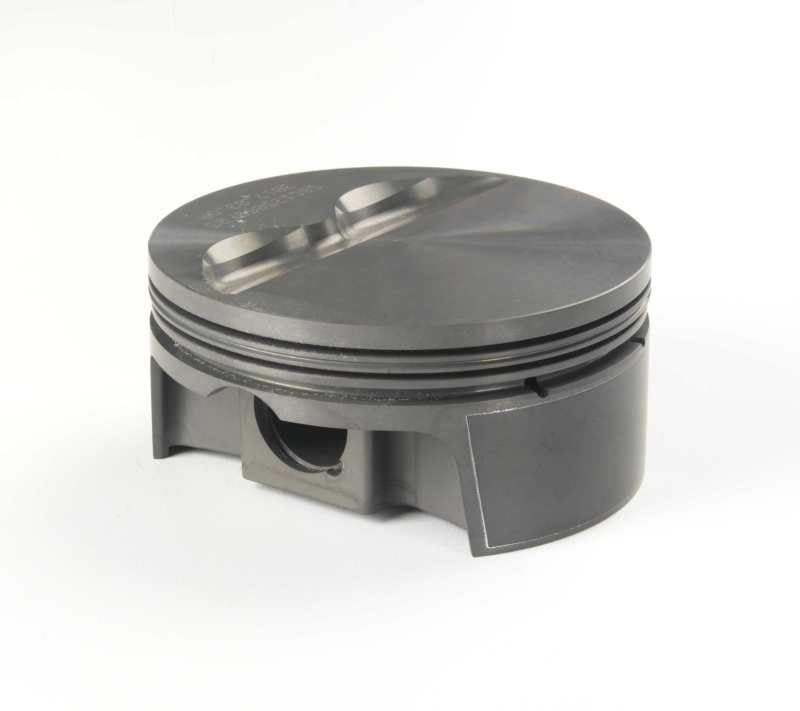

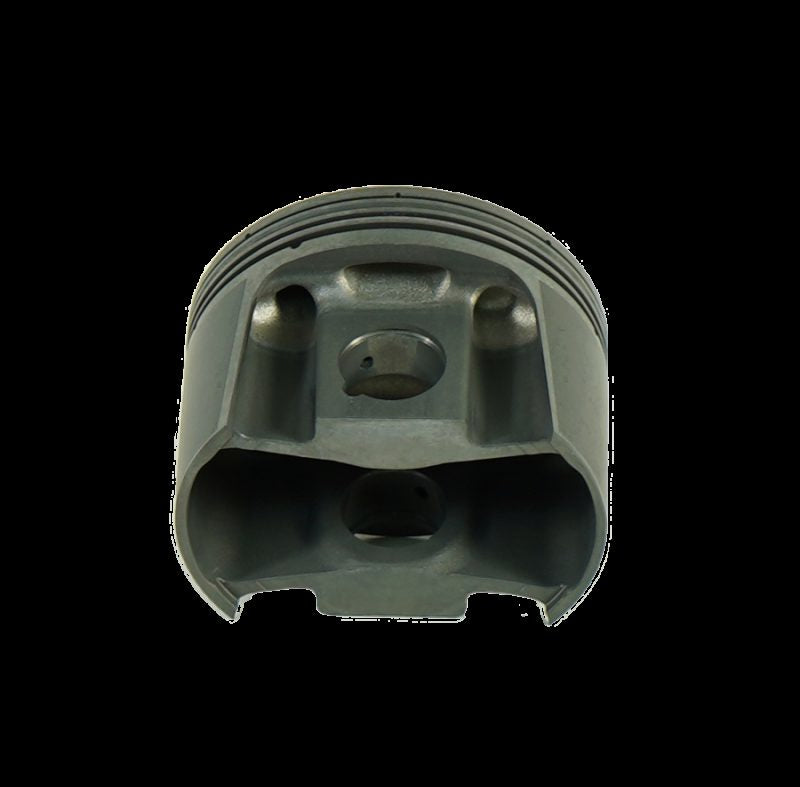

Mahle Motorsport 930205596-1 - Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.700in Rod .927 Pin -1cc 9.9 CR - Single
Mahle Motorsport 930205596-1 - Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.700in Rod .927 Pin -1cc 9.9 CR - Single
SKU: DGJH-930205596-1
Regular price
$102.99 USD
Regular price
$111.70 USD
Sale price
$102.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930205596-1 - Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.700in Rod .927 Pin -1cc 9.9 CR - Single
Piston (ea) - SMALL BLOCK CHEVY 305ci FLAT TOP
315cid 3.796 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-1.6cc,421g,9.9CR, 4032, SINGLE PISTON
Rings Included: N
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 421g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 93g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -1.6cc
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.129
UCR Material: 9254 Steel
UCR Coating: HV385
