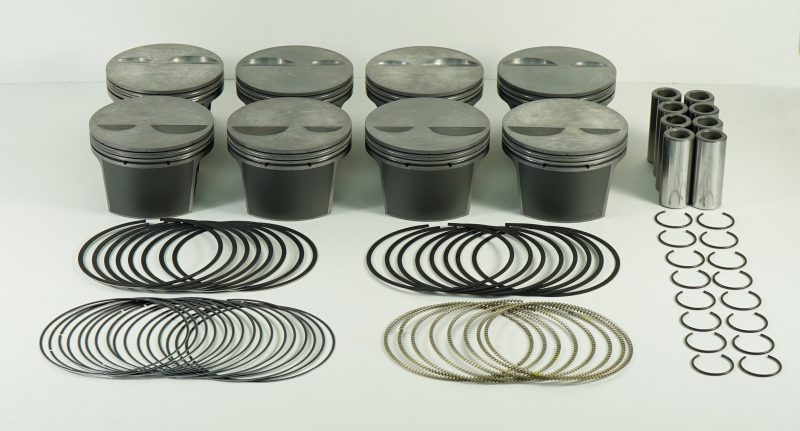

Mahle Motorsport 930205576 - Mahle MS Piston Set SBC 312ci 3.776in Bore 3.480in Stroke 5.700in Rod .927 Pin -1cc 9.8 CR Set of 8
Mahle Motorsport 930205576 - Mahle MS Piston Set SBC 312ci 3.776in Bore 3.480in Stroke 5.700in Rod .927 Pin -1cc 9.8 CR Set of 8
SKU: DGJH-930205576
Regular price
$867.99 USD
Regular price
$995.14 USD
Sale price
$867.99 USD
Shipping calculated at checkout.
3 in stock
Quantity
Couldn't load pickup availability
Mahle Motorsport 930205576 - Mahle MS Piston Set SBC 312ci 3.776in Bore 3.480in Stroke 5.700in Rod .927 Pin -1cc 9.8 CR Set of 8

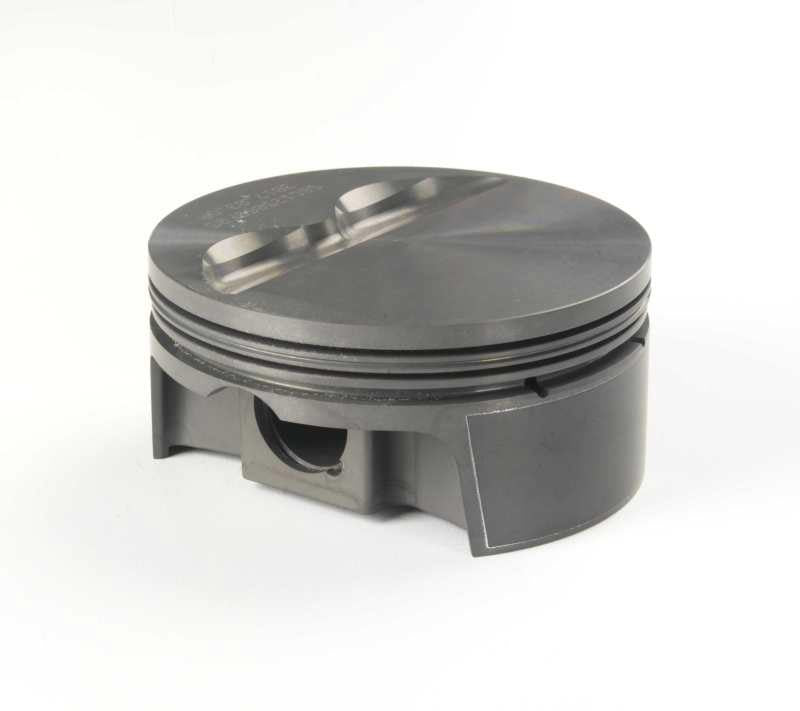

Piston and Ring - PowerPak - Forged - Flat Top - 3.776 in Bore - 1.550 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 1.00 cc - Small Block Chevy - Kit
312cid 3.776 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-1.6cc,413g,9.8CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.129
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 413g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 93g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -1.6cc
UCR Thickness: 1.0mm
