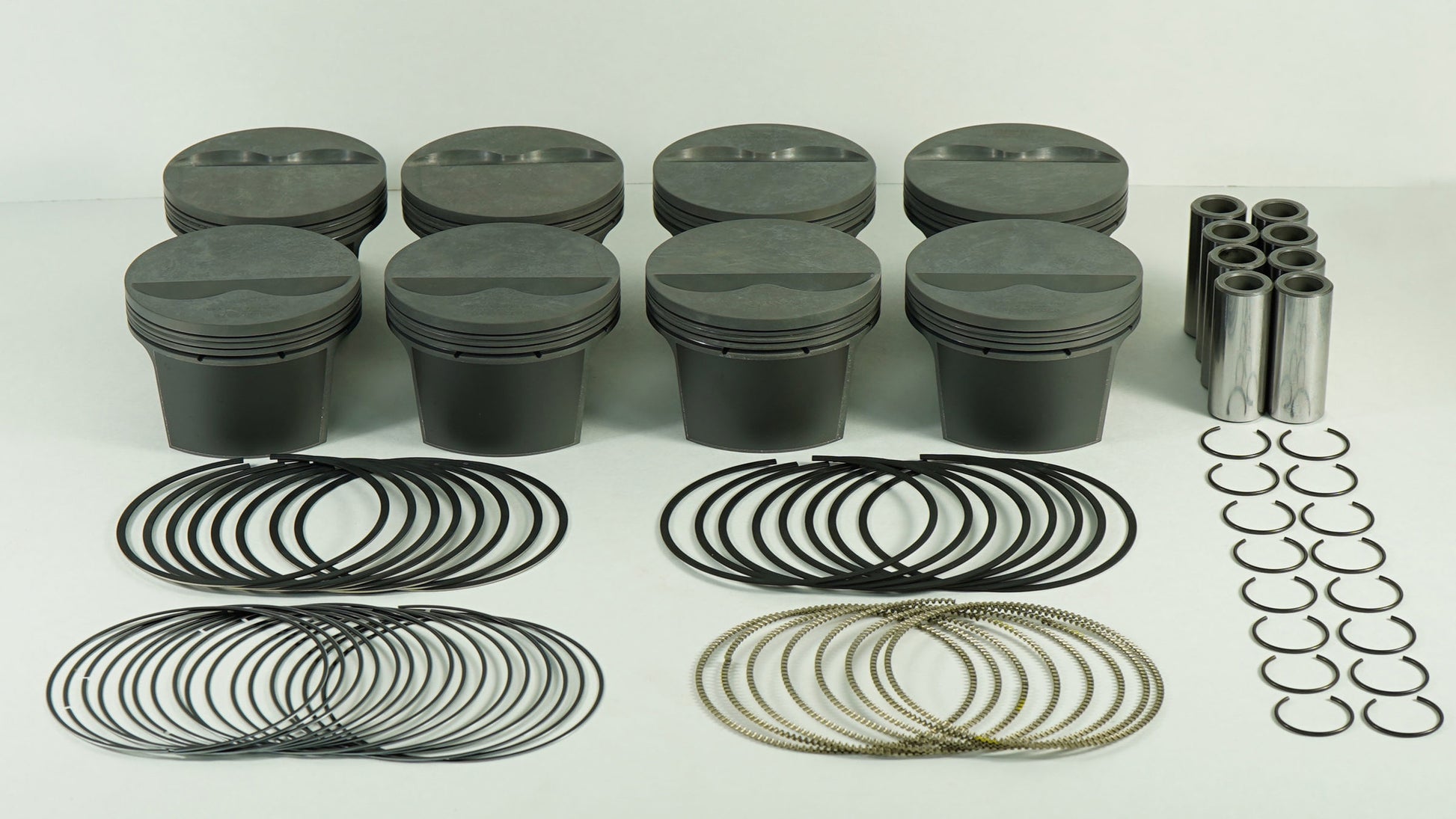

Mahle Motorsport 930204596 - Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.7in Rod 0.927 Pin -3cc 9.7 CR Set of 8
Mahle Motorsport 930204596 - Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.7in Rod 0.927 Pin -3cc 9.7 CR Set of 8
SKU: DGJH-930204596
Regular price
$727.99 USD
Regular price
$812.53 USD
Sale price
$727.99 USD
Shipping calculated at checkout.
Low stock: 1 left
Quantity
Couldn't load pickup availability
Mahle Motorsport 930204596 - Mahle MS Piston Set SBC 315ci 3.796in Bore 3.480in Stroke 5.7in Rod 0.927 Pin -3cc 9.7 CR Set of 8
Piston and Ring - PowerPak - Forged - Flat Top - 3.796 in Bore - 1.550 in Compression Height - 1.0 x 1.0 x 2.0 mm Ring Groove - Minus 3.00 cc - Small Block Chevy - Kit
315cid 3.796 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-3.0cc,417g,9.7CR, 4032
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 417g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -3.0cc
UCR Thickness: 1.0mm
