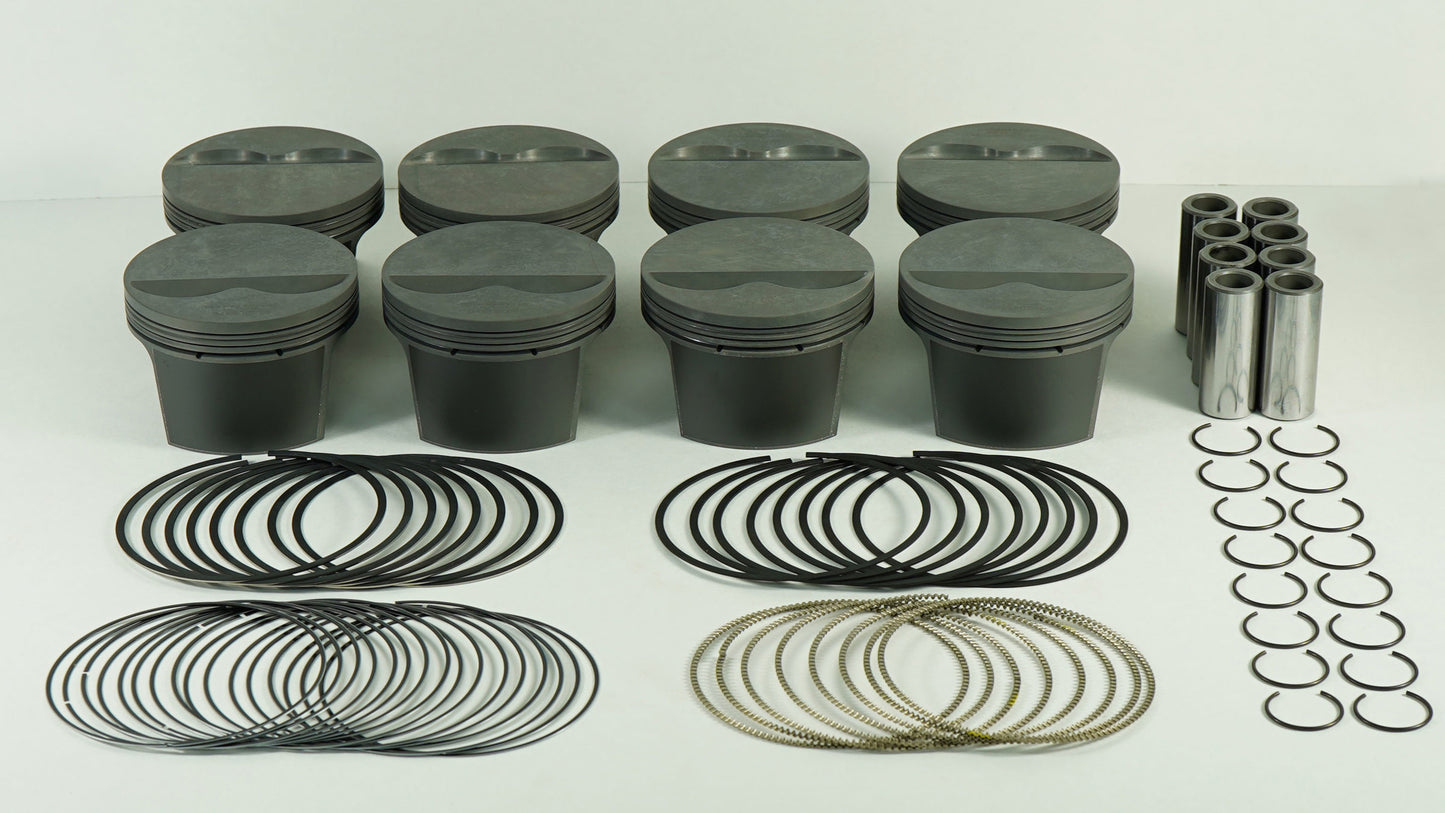

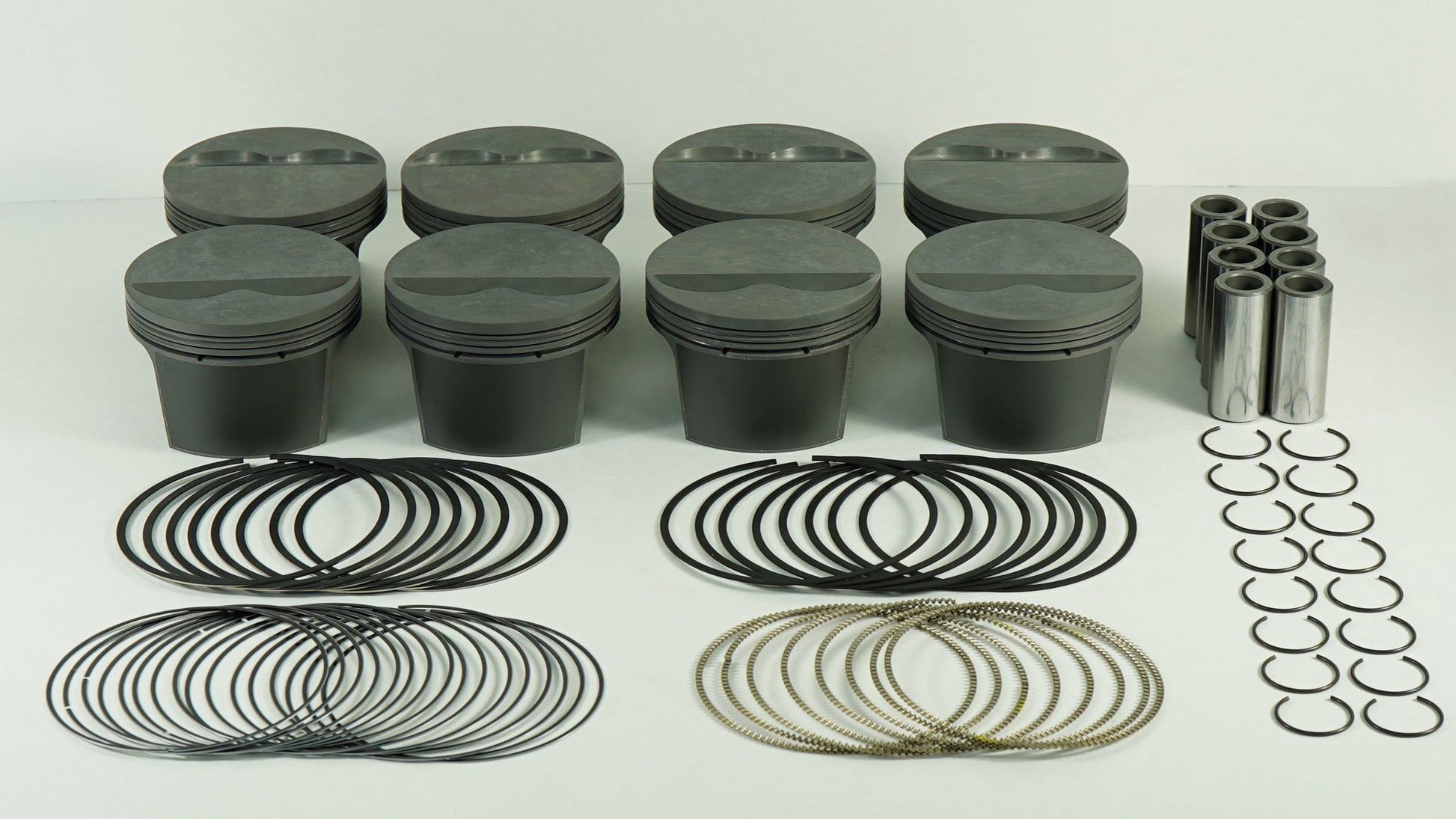

Mahle Motorsport 930204576T - Piston (set)
Mahle Motorsport 930204576T - Piston (set)
SKU: DGJH-930204576T
Regular price
$992.99 USD
Regular price
$1,173.56 USD
Sale price
$992.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930204576T - Piston (set)
Piston (set) - SMALL BLOCK CHEVY 305ci FLAT TOP
312cid 3.776 x 1.550CH, 3.480stroke,5.700rod,0.927pin,-3.0cc,409g,9.6CR, 4032, TBC Coated
Clip Style: Round Wire
Pin Wall Thickness: 0.168
UCR Material: 9254 Steel
UCR Coating: HV385
Rings Included: Y
Piston Style: Flattop, w/ 2 valve reliefs
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Material: Forged, 4032
Piston Mass: 409g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 118g
Pin Length: 58.1mm
Pin Diameter: 23.55mm
Package Quantity: Sold as a set of 8
OCR Thickness: 2.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.0mm
LCR Material: 9254 Steel
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -3.0cc
UCR Thickness: 1.0mm
