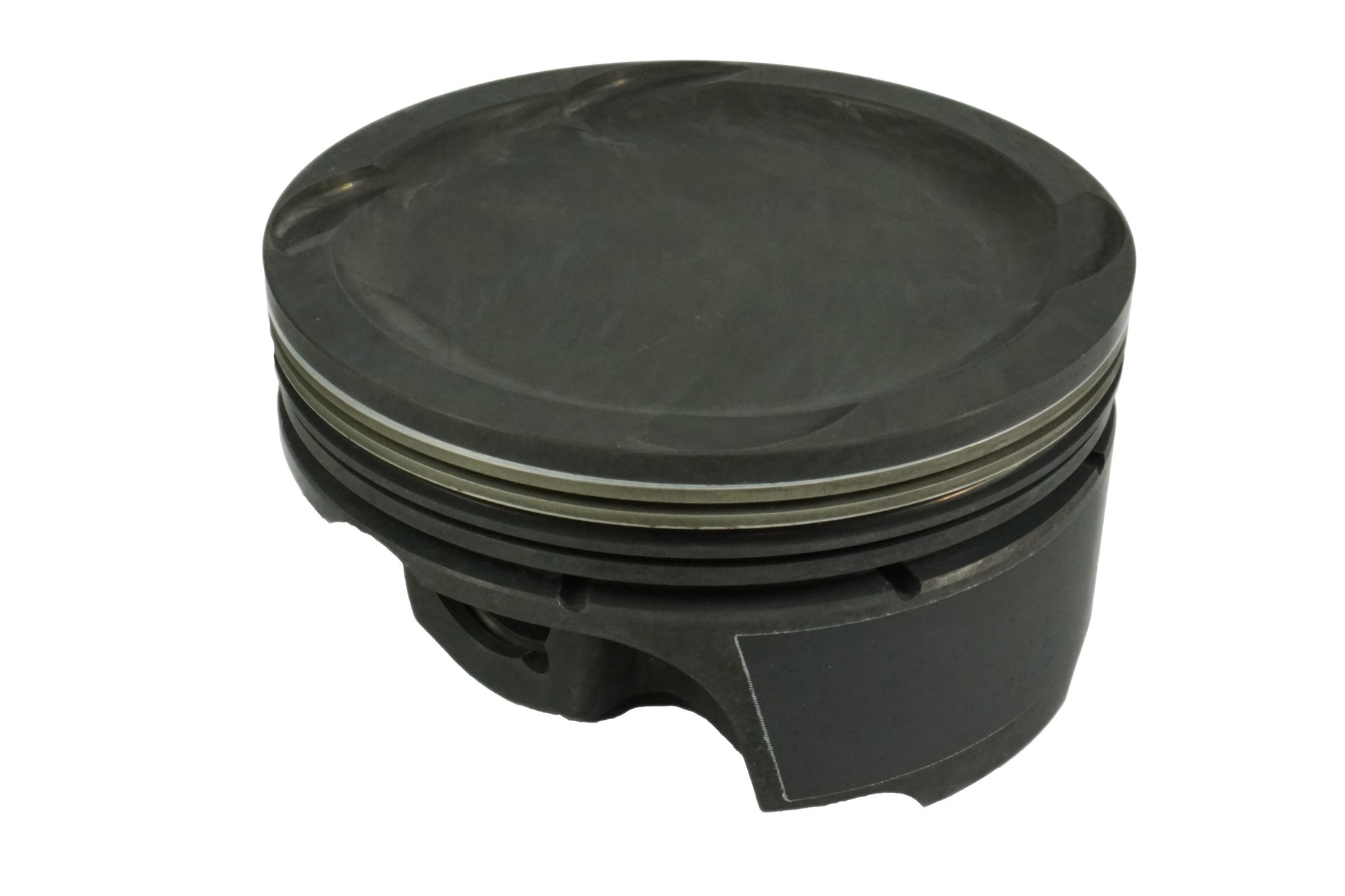

Mahle Motorsport - 930134030
302ci, 3.630bore, 3.650stroke, 5.933rod,1.167ch,.866pin,-5cc,375g,10.0cr,4032
FORD 5.0L MODULAR 4-VALVE COYOTE / VOODOO (Combined Dome/Pocket Geometry) 302cid 3.630 x 1.167CH, 3.650stroke,5.933rod,0.866pin,-4.5cc,383g,10.1CR, M142P.
Clip Style: Round Wire
Clips Included: Yes
Coatings: Phosphate plus Grafal plus Hard Anodized top ring groove
Crown Vol: -4.5cc

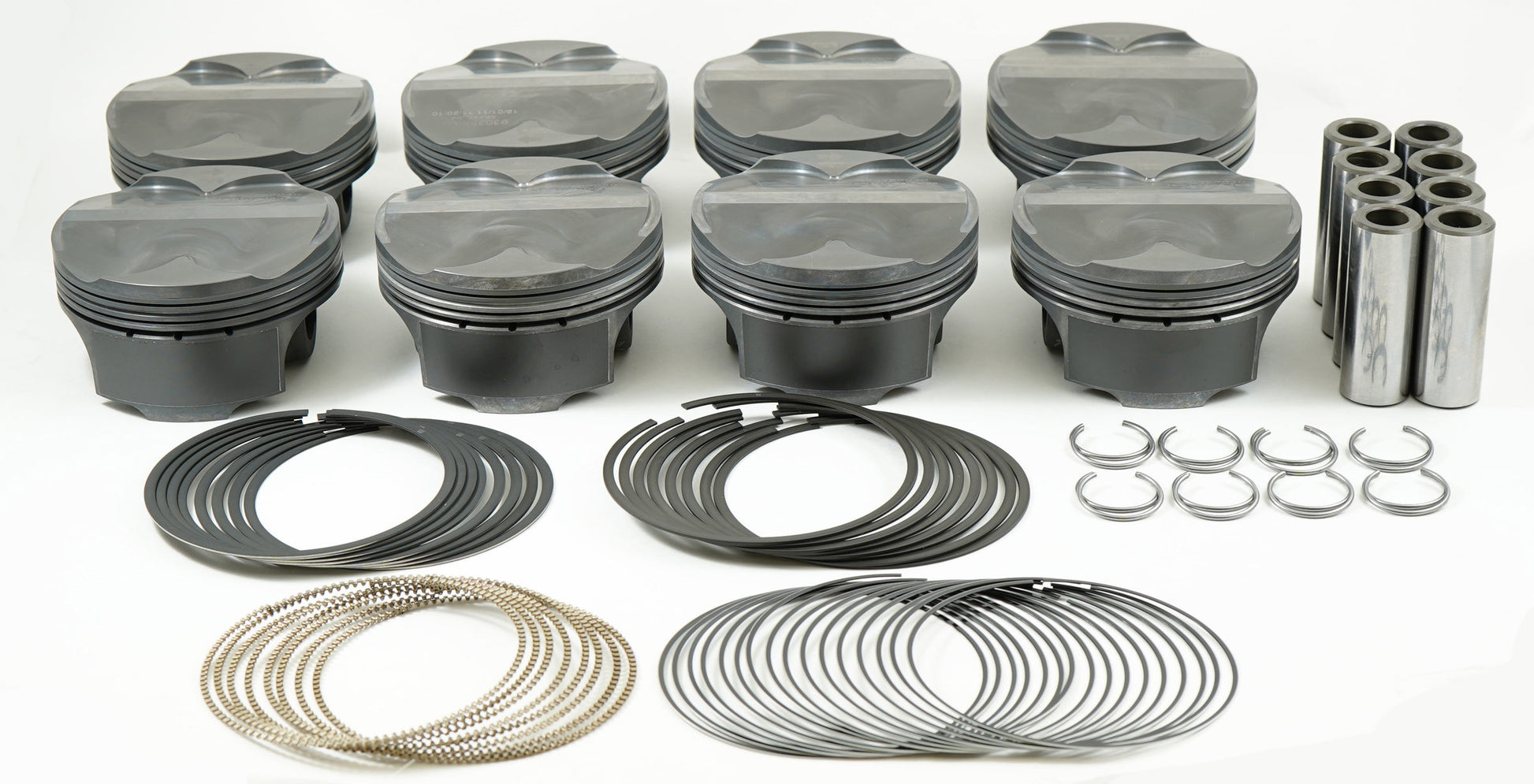

Package Qty: Sold as a set of 8
Pin Diameter: 0.866
Pin Length: 2.405
Pin Mass: 118g
Pin Material: Steel
Pin Style: Floating
Pins Included: Yes
Piston Mass: 383g
Piston Material: Forged, M142P
Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
Piston Style: Dish, w/ 4 valve reliefs
Rings Included: Yes
