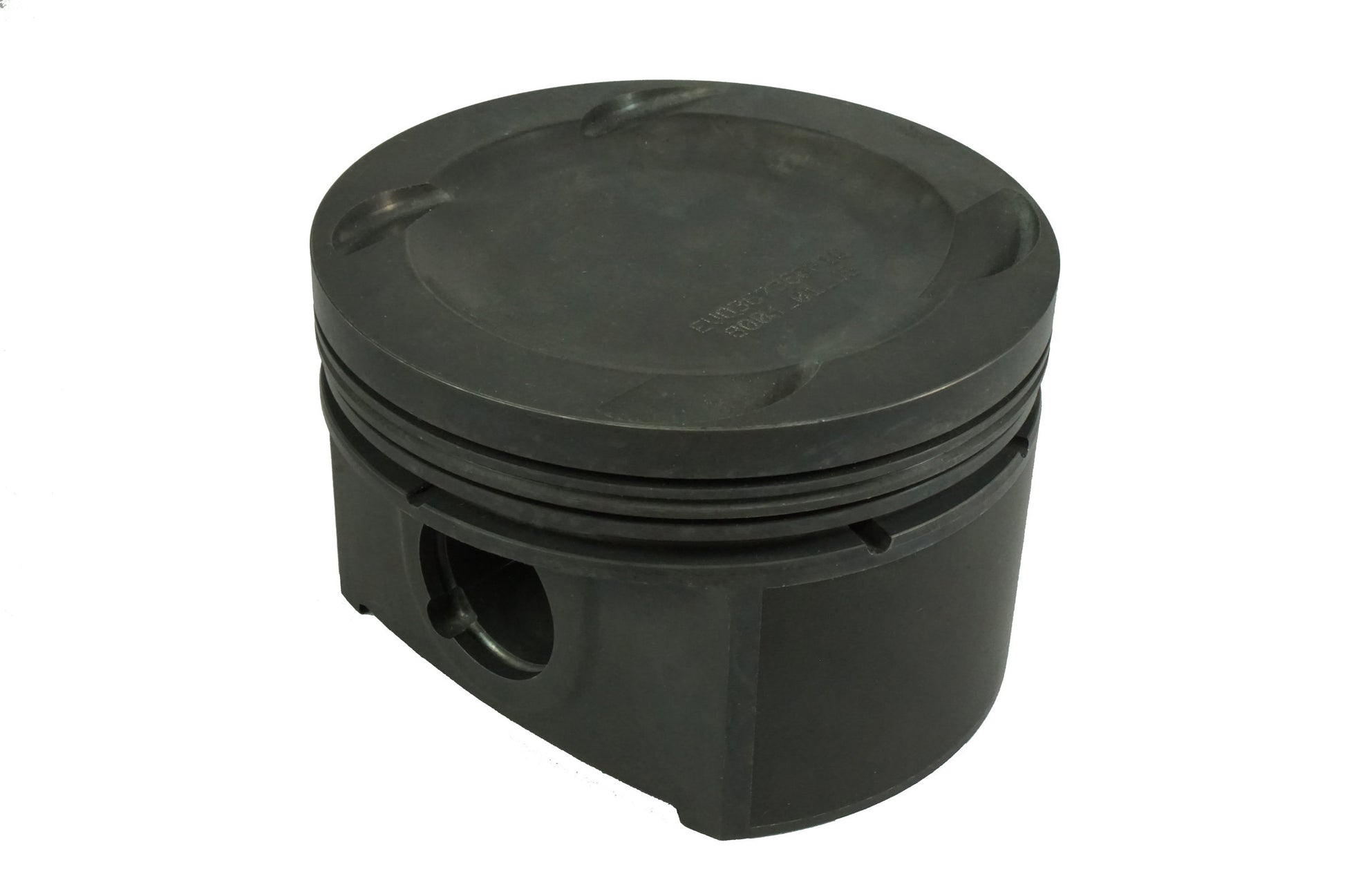

Mahle Motorsport 930130066T - Piston (set)
Mahle Motorsport 930130066T - Piston (set)
SKU: DGJH-930130066T
Regular price
$703.99 USD
Regular price
$831.16 USD
Sale price
$703.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930130066T - Piston (set)
Piston (set) - MITSUBISHI 4G63 2.0L 93-02 ECLIPSE 03-09 LANCER EVO
85.50mm x 34.7mm CH, 88.0mm stroke,150mm rod,22mm pin,-10.0cc,311g,8.7CR, 4032, TBC coated
Clip Style: Round Wire
Pin Wall Thickness: 0.177
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 4032
Piston Mass: 311g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 112g
Pin Length: 58.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -10.0cc
UCR Thickness: 1.2mm
