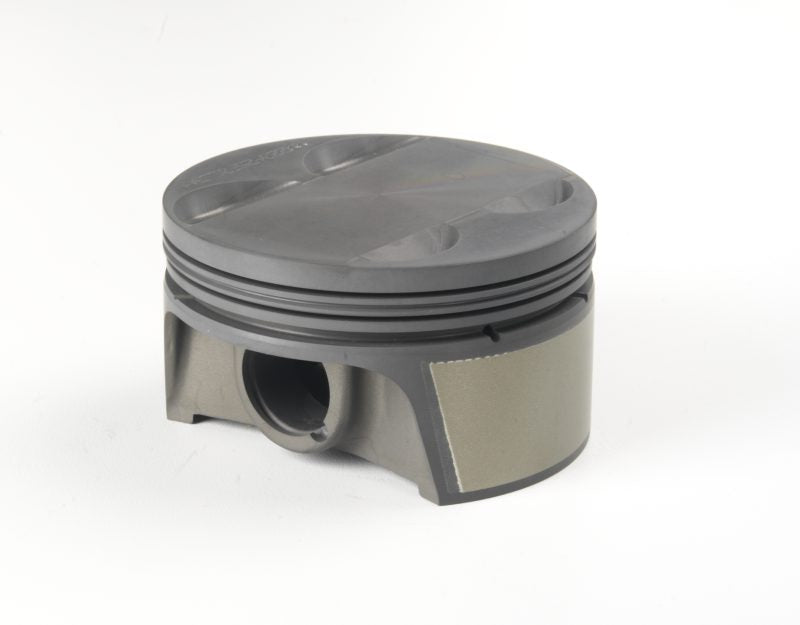

Mahle Motorsport 930082325-1 - Mahle MS Piston Set Honda H22 87mm Bore 90mm Stroke 143mm Rod -1cc 10.5 CR - Single Piston
Mahle Motorsport 930082325-1 - Mahle MS Piston Set Honda H22 87mm Bore 90mm Stroke 143mm Rod -1cc 10.5 CR - Single Piston
SKU: DGJH-930082325-1
Regular price
$133.99 USD
Regular price
$144.80 USD
Sale price
$133.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930082325-1 - Mahle MS Piston Set Honda H22 87mm Bore 90mm Stroke 143mm Rod -1cc 10.5 CR - Single Piston
Piston (ea) - HONDA H22 GOLD SERIES 2.2L
87.00mm x 31mm CH, 90.7mm stroke,143mm rod,22mm pin,-1.0cc,309g,10.0CR, 4032, SINGLE PISTON
Pin Wall Thickness: 0.197
Crown Volume: -1.0cc
Pin Material: Steel
Pin Mass: 101g
Pin Length: 52.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Clips Included: N
Pins Included: N
Clip Style: Round Wire
UCR Thickness: 1.2mm
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: N
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 4032
Piston Mass: 309g
Pin Style: Floating
