Mahle Motorsport 930082325 - Mahle MS Piston Set Honda H22 87mm Bore 90mm Stroke 143mm Rod -1cc 10.5 CR Set of 4
Mahle Motorsport 930082325 - Mahle MS Piston Set Honda H22 87mm Bore 90mm Stroke 143mm Rod -1cc 10.5 CR Set of 4
SKU: DGJH-930082325
Regular price
$598.99 USD
Regular price
$642.94 USD
Sale price
$598.99 USD
Shipping calculated at checkout.
5 in stock
Quantity
Couldn't load pickup availability
Mahle Motorsport 930082325 - Mahle MS Piston Set Honda H22 87mm Bore 90mm Stroke 143mm Rod -1cc 10.5 CR Set of 4

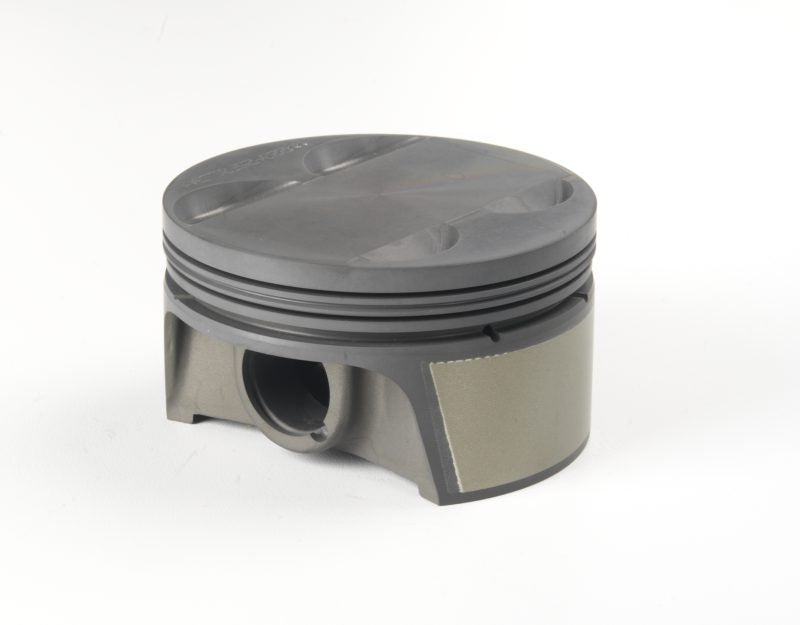

Piston (set) - HONDA H22 GOLD SERIES 2.2L
87.00mm x 31mm CH, 90.7mm stroke,143mm rod,22mm pin,-1.0cc,309g,10.0CR, 4032
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dome, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 4032
Piston Mass: 309g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 101g
Pin Length: 52.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -1.0cc
UCR Thickness: 1.2mm
Clip Style: Round Wire
