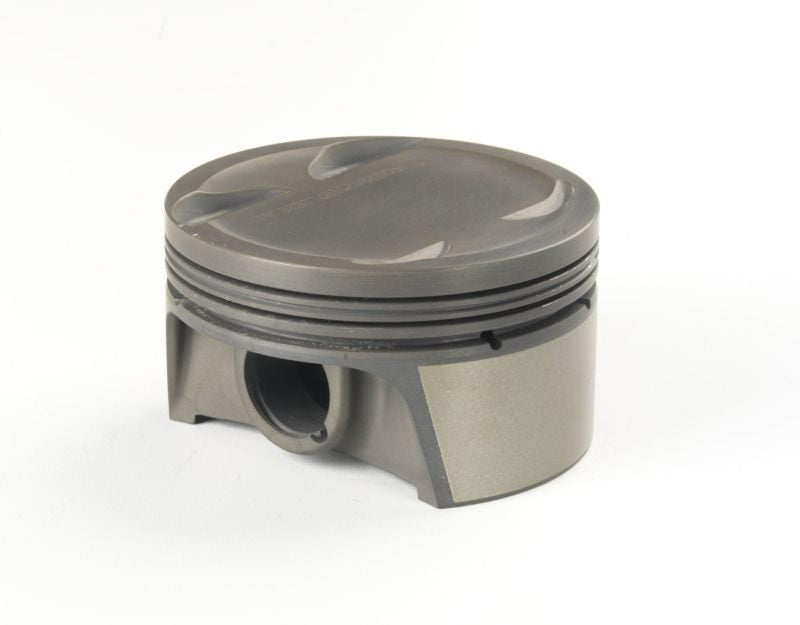

Mahle Motorsport 930081525 - Mahle MS Piston Set H22 87.00mm Bore 90.0mm Stroke 143mm Rod 22mm Pin -7cc 9.0 CR Set of 4
Mahle Motorsport 930081525 - Mahle MS Piston Set H22 87.00mm Bore 90.0mm Stroke 143mm Rod 22mm Pin -7cc 9.0 CR Set of 4
SKU: DGJH-930081525
Regular price
$663.99 USD
Regular price
$701.68 USD
Sale price
$663.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930081525 - Mahle MS Piston Set H22 87.00mm Bore 90.0mm Stroke 143mm Rod 22mm Pin -7cc 9.0 CR Set of 4
Piston (set) - HONDA H22 GOLD SERIES 2.2L
87.00mm x 31mm CH, 90.7mm stroke,143mm rod,22mm pin,-7.0cc,293g,9.2CR, 4032
Pin Wall Thickness: 0.197
Crown Volume: -7.0cc
Pin Material: Steel
Pin Mass: 101g
Pin Length: 52.0mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 4
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Clips Included: Y
Pins Included: Y
Clip Style: Round Wire
UCR Thickness: 1.2mm
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 4032
Piston Mass: 293g
Pin Style: Floating
