Mahle Motorsport 930077100 - Mahle MS Piston Set BBC Mar 509ci 4.50in Bore 4in Stroke 6.135in Rod 0.990 Pin -3cc 9.0 CR Set of 8
Mahle Motorsport 930077100 - Mahle MS Piston Set BBC Mar 509ci 4.50in Bore 4in Stroke 6.135in Rod 0.990 Pin -3cc 9.0 CR Set of 8
SKU: DGJH-930077100
Regular price
$781.99 USD
Regular price
$850.34 USD
Sale price
$781.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability

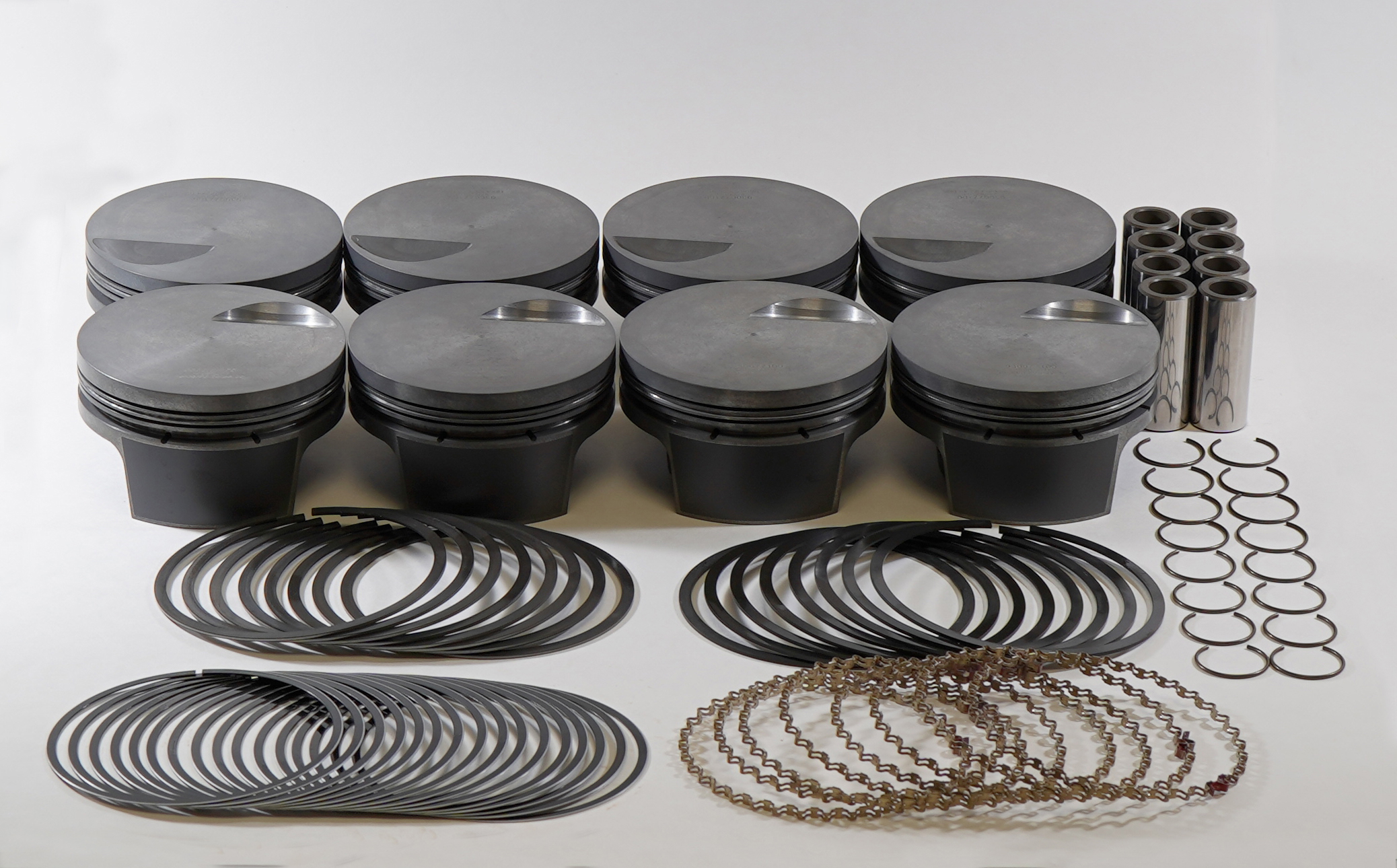

Mahle Motorsport 930077100 - Mahle MS Piston Set BBC Mar 509ci 4.50in Bore 4in Stroke 6.135in Rod 0.990 Pin -3cc 9.0 CR Set of 8
Piston (set) - BIG BLOCK CHEVY 502 MARINE "DROP IN" REPLACEMENT
509cid 4.500 x 1.645CH, 4.000stroke,6.135rod,0.990pin,-3.0cc,661g,8.9CR, 4032
Piston Mass: 661g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 171g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3/16
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1/16
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -3.0cc
UCR Thickness: 1/16
Clip Style: Round Wire
Pin Wall Thickness: 0.22
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y

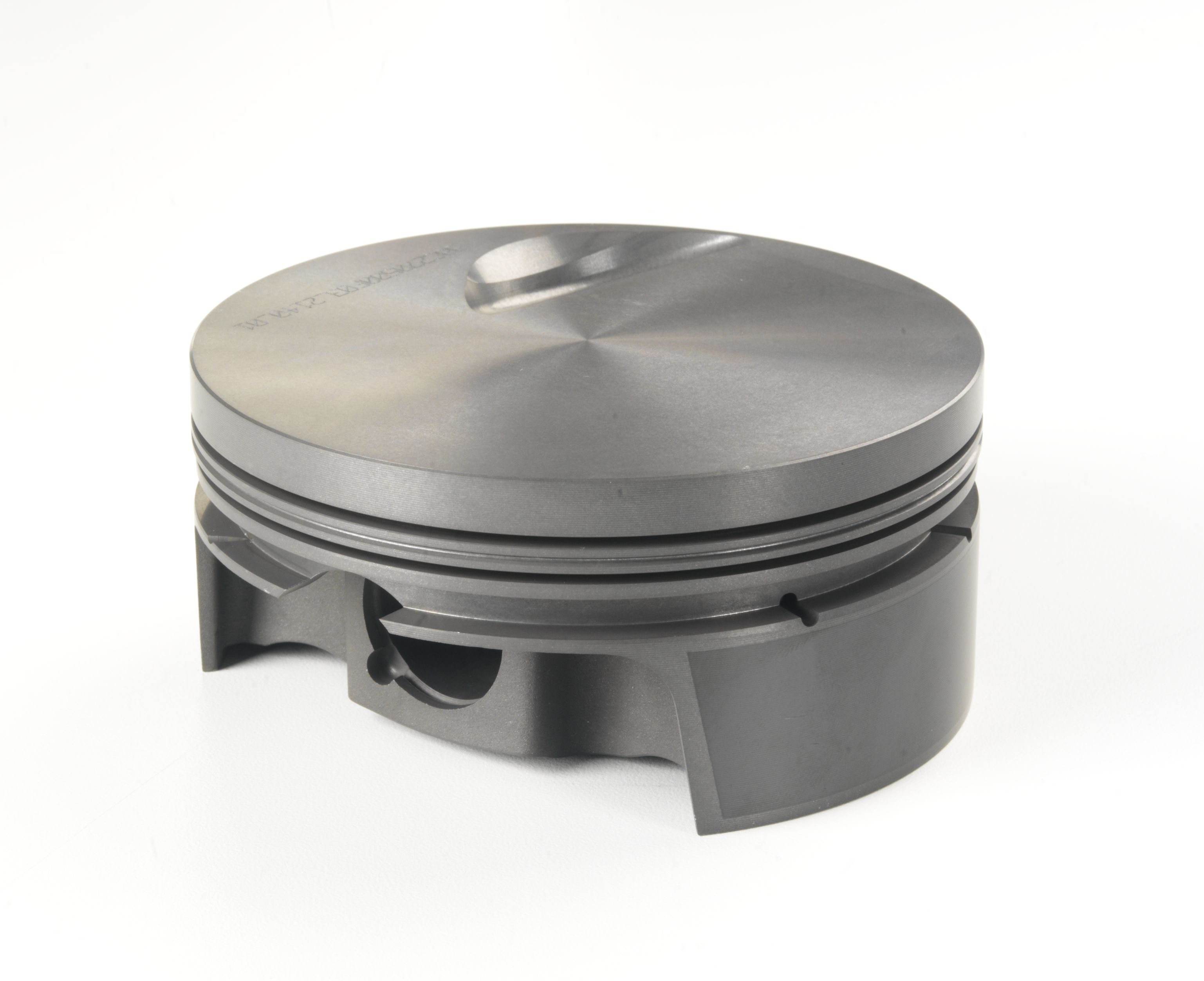

Piston Style: Flattop, w/ INT valve relief
Piston Ring Thickness: 1/16, 1/16, 3/16
Piston Material: Forged, 4032
