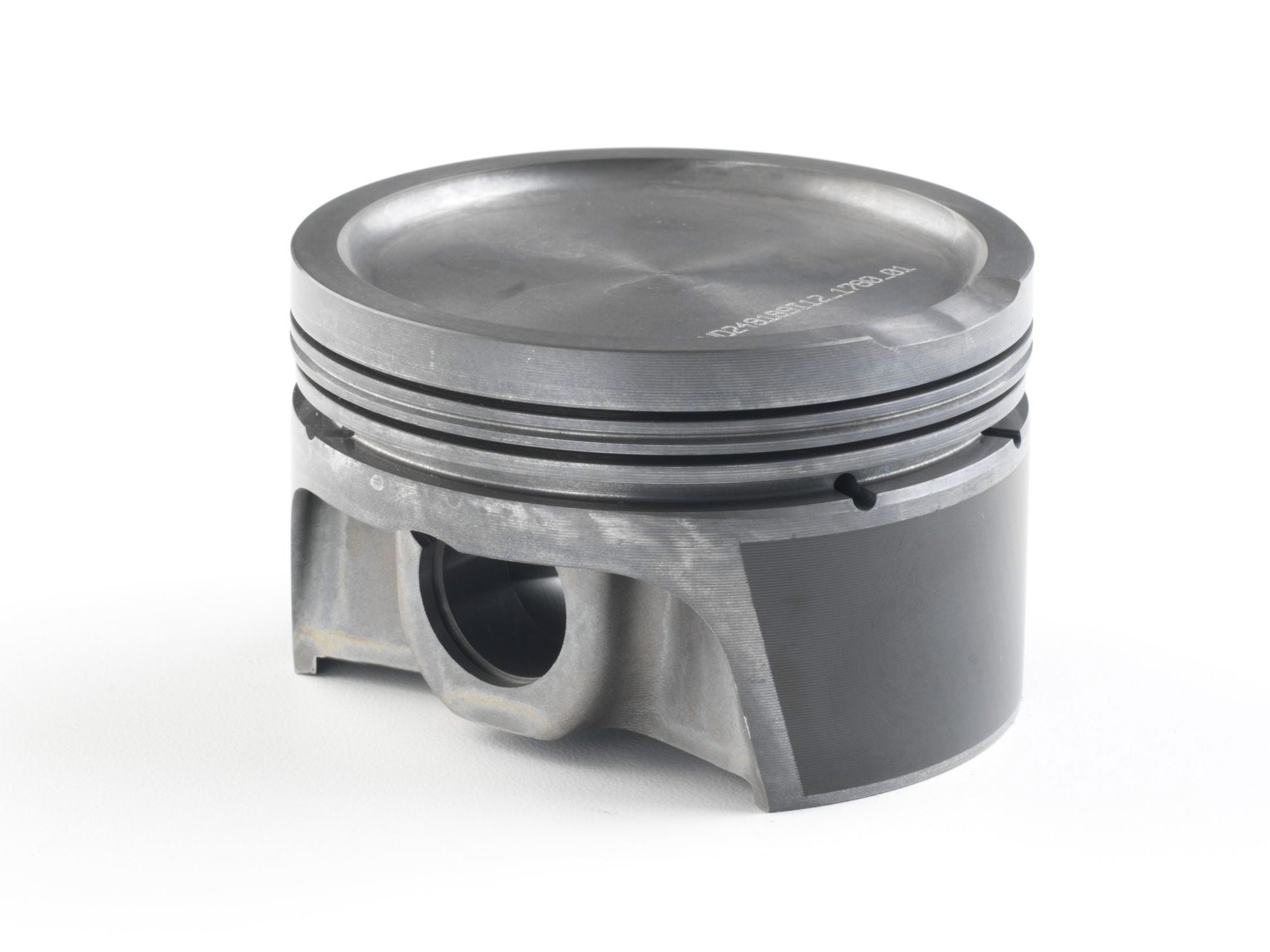

Mahle Motorsport 930070509T - Piston (set)
Piston (set) - VOLKSWAGEN/AUDI B5 S4 2.7L 6-cyl. 5V Turbo
81.50mm x 30.7mm CH, 86.4mm stroke,154mm rod,21mm pin,-7.2cc,295g,9.0CR, 4032, TBC coated
UCR Thickness: 1.0mm
Clip Style: Round Wire
Pin Wall Thickness: 0.197
UCR Material: Stainless Steel
UCR Coating: Gas Nitrided
Rings Included: Y
Piston Style: Dish, w/ 1 valve reliefs
Piston Ring Thickness: 1.0mm, 1.2mm, 2.8mm
Piston Material: Forged, 4032
Piston Mass: 295g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 98g
Pin Length: 50.0mm
Pin Diameter: 21.0mm
Package Quantity: Sold as a set of 6
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -7.2cc
