Mahle Motorsport 930036275 - Mahle MS Piston Set Duramax 4.075in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.5 CR Set of 8
Mahle Motorsport 930036275 - Mahle MS Piston Set Duramax 4.075in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.5 CR Set of 8
SKU: DGJH-930036275
Regular price
$2,698.99 USD
Regular price
$2,773.52 USD
Sale price
$2,698.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930036275 - Mahle MS Piston Set Duramax 4.075in Bore 3.898in Stk 6.417in Rod 1.358 Pin -41.8cc 16.5 CR Set of 8

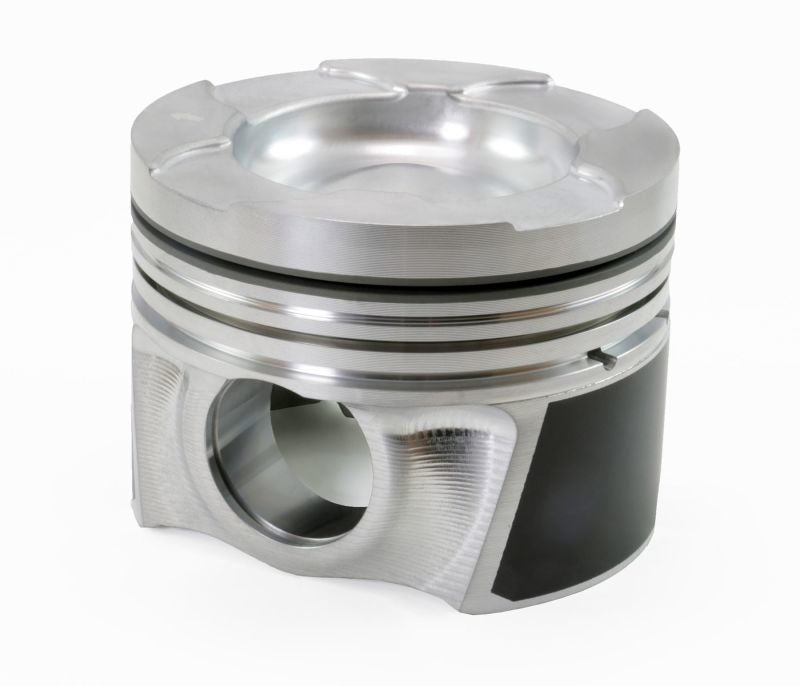

Piston (set) - GM 6.6L Duramax Forged Aluminum Race Pistons
407cid 4.075 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-41.8cc,785g,16.5CR, M124P
UCR Thickness: 1/16
Clip Style: Snap Ring
Pin Wall Thickness: 0.325
UCR Material: Stainless Steel
UCR Coating: CrN PVD
Rings Included: Y
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1/16, 2.0mm, 3.0mm
Piston Material: Forged, M124P
Piston Mass: 785g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 410g
Pin Length: 77.5mm
Pin Diameter: 34.5mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Gas Nitrided stainless steel
LCR Thickness: 2.0mm
LCR Material: Cast Iron
LCR Coating: Chrome
File Fit: Y
Crown Volume: -41.8cc
