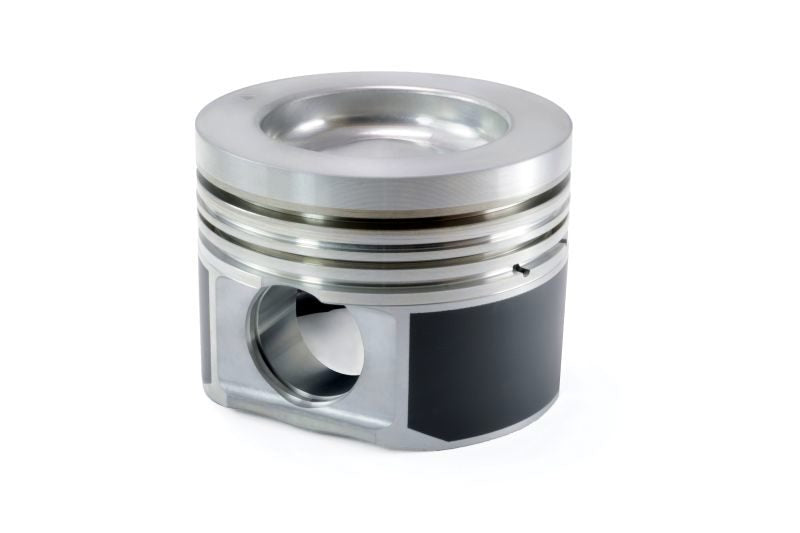

Mahle Motorsport 930036075-1 - Mahle MS Piston DMAX Cast 1.951 x 4.075 16.8CR +020 - Single
Mahle Motorsport 930036075-1 - Mahle MS Piston DMAX Cast 1.951 x 4.075 16.8CR +020 - Single
SKU: DGJH-930036075-1
Regular price
$170.99 USD
Regular price
$185.05 USD
Sale price
$170.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930036075-1 - Mahle MS Piston DMAX Cast 1.951 x 4.075 16.8CR +020 - Single
Piston (ea) - GM 6.6L Duramax Cast Performance Pistons
407cid 4.075 x 1.951CH, 3.898stroke,6.417rod,1.358pin,-40.7cc,880g,16.8CR, M142, SINGLE PISTON
Clip Style: Snap Ring
Pin Wall Thickness: 0.325
UCR Material: Stainless Steel
UCR Coating: CrN PVD
Rings Included: N
Piston Style: Dish, w/ NO valve reliefs
Piston Ring Thickness: K.0mm, 2.0mm, 3.0mm
Piston Material: Cast, M142
Piston Mass: 880g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 410g
Pin Length: 77.5mm
Pin Diameter: 34.5mm
Package Quantity: Sold as a set of 1
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Gas Nitrided stainless steel
LCR Thickness: 2.0mm
LCR Material: Cast Iron
LCR Coating: Chrome
File Fit: N
Crown Volume: -40.7cc
UCR Thickness: 3.0mm Keystone
