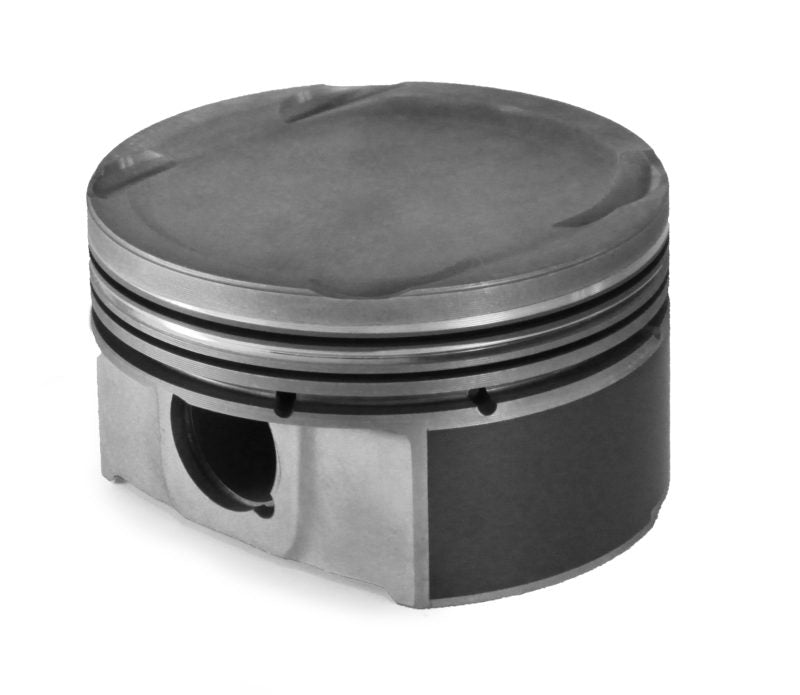

Mahle Motorsport 930024409-1 - Mahle MS Piston BMW S52B 86.60mm Bore 89.6mm Stroke 135mm Rod 22mm Pin -11cc 11.3 CR - Single
Mahle Motorsport 930024409-1 - Mahle MS Piston BMW S52B 86.60mm Bore 89.6mm Stroke 135mm Rod 22mm Pin -11cc 11.3 CR - Single
SKU: DGJH-930024409-1
Regular price
$133.99 USD
Regular price
$144.80 USD
Sale price
$133.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930024409-1 - Mahle MS Piston BMW S52B 86.60mm Bore 89.6mm Stroke 135mm Rod 22mm Pin -11cc 11.3 CR - Single
Piston (ea) - BMW S52 B32 3.2L E36 M3
86.60mm x 31mm CH, 89.6mm stroke,135mm rod,22mm pin,-11.0cc,324g,11.2CR, 4032, SINGLE PISTON
Piston Material: Forged, 4032
Piston Mass: 324g
Pins Included: N
Pin Style: Floating
Clips Included: N
Pin Material: Steel
Pin Mass: 112g
Pin Length: 58.1mm
Pin Diameter: 22.0mm
Package Quantity: Sold as a set of 1
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -11.0cc
UCR Thickness: 1.2mm
Clip Style: Round Wire
Pin Wall Thickness: 0.177
UCR Material: Steel
UCR Coating: CrN PVD
Rings Included: N
Piston Style: Dish, w/ 4 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
