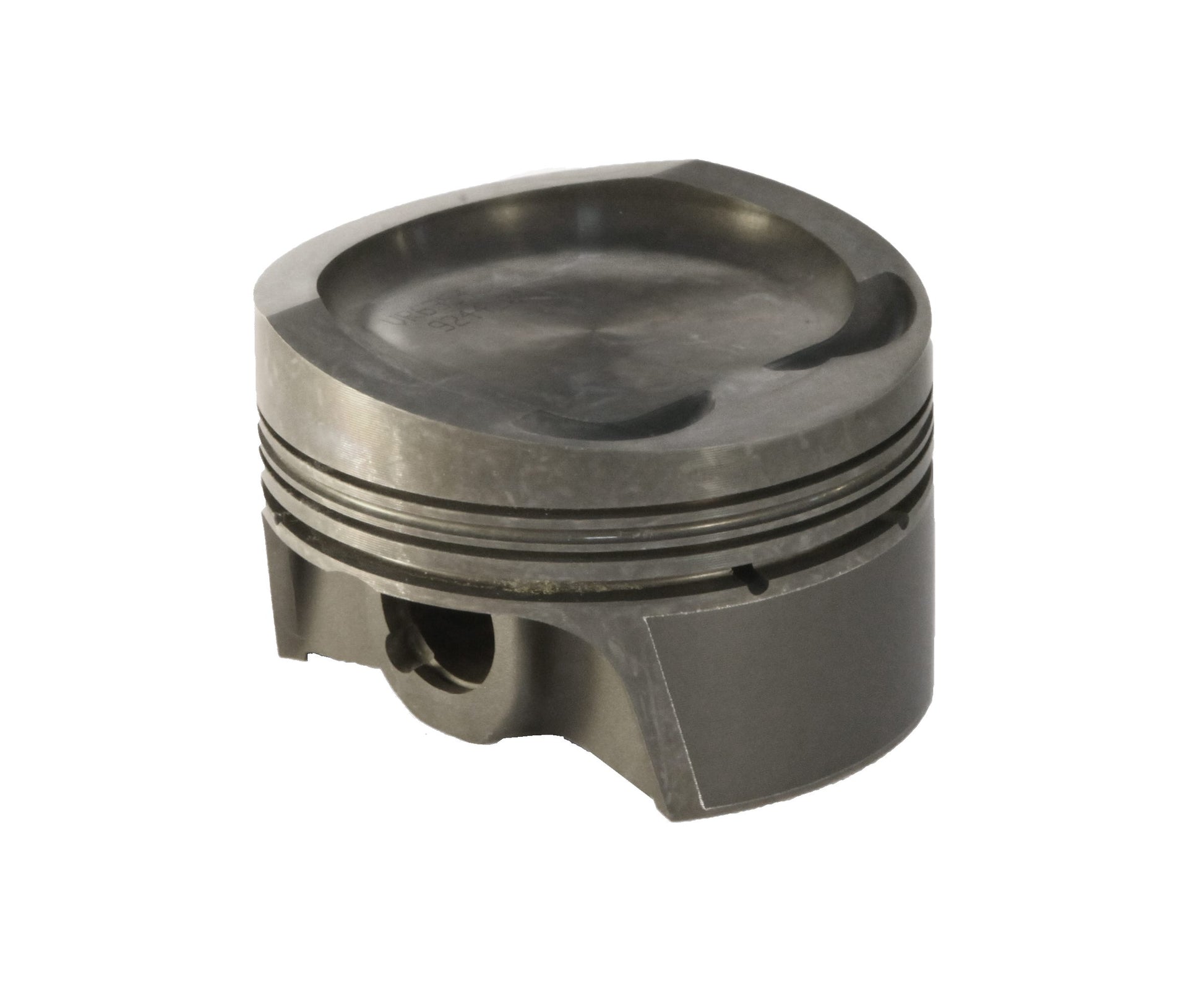

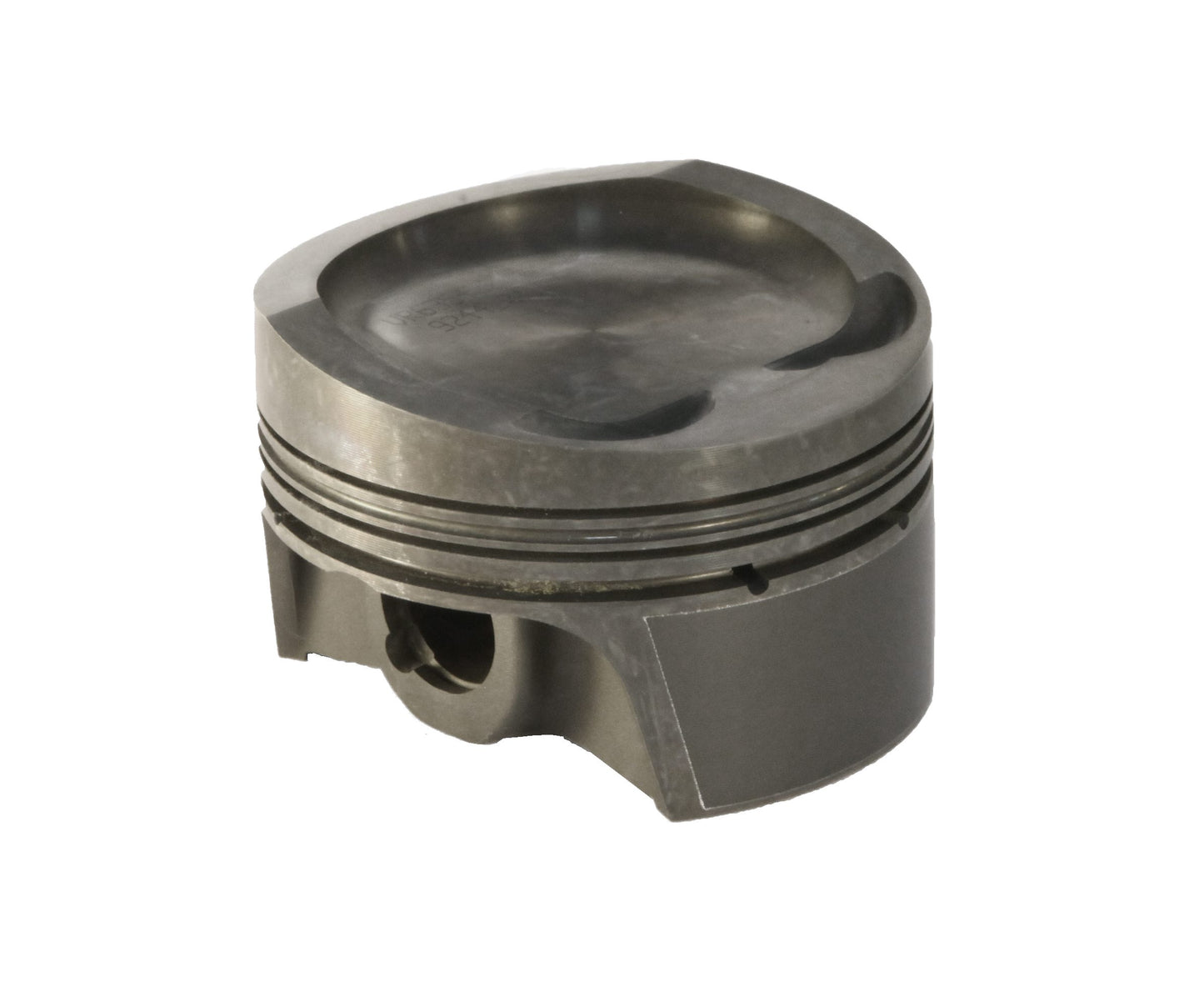

Mahle Motorsport 930016626T - Piston (set)
Mahle Motorsport 930016626T - Piston (set)
SKU: DGJH-930016626T
Regular price
$1,048.99 USD
Regular price
$1,239.74 USD
Sale price
$1,048.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 930016626T - Piston (set)
Piston (set) - VOLKSWAGEN VR6 3.2L 4V
84.50mm x 34.7mm CH, 95.9mm stroke,164mm rod,20mm pin,-22.5cc,353g,9.0CR, 2618, TBC coated
Clip Style: Round Wire
Pin Wall Thickness: 0.17
UCR Material: Steel
UCR Coating: CrN PVD
Rings Included: Y
Piston Style: Dome, w/ 2 valve reliefs
Piston Ring Thickness: 1.2mm, 1.2mm, 2.8mm
Piston Material: Forged, 2618
Piston Mass: 353g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 84g
Pin Length: 50.8mm
Pin Diameter: 20.0mm
Package Quantity: Sold as a set of 6
OCR Thickness: 2.8mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.2mm
LCR Material: Cast Iron
LCR Coating: Phosphate
File Fit: N
Crown Volume: -22.5cc
UCR Thickness: 1.2mm
