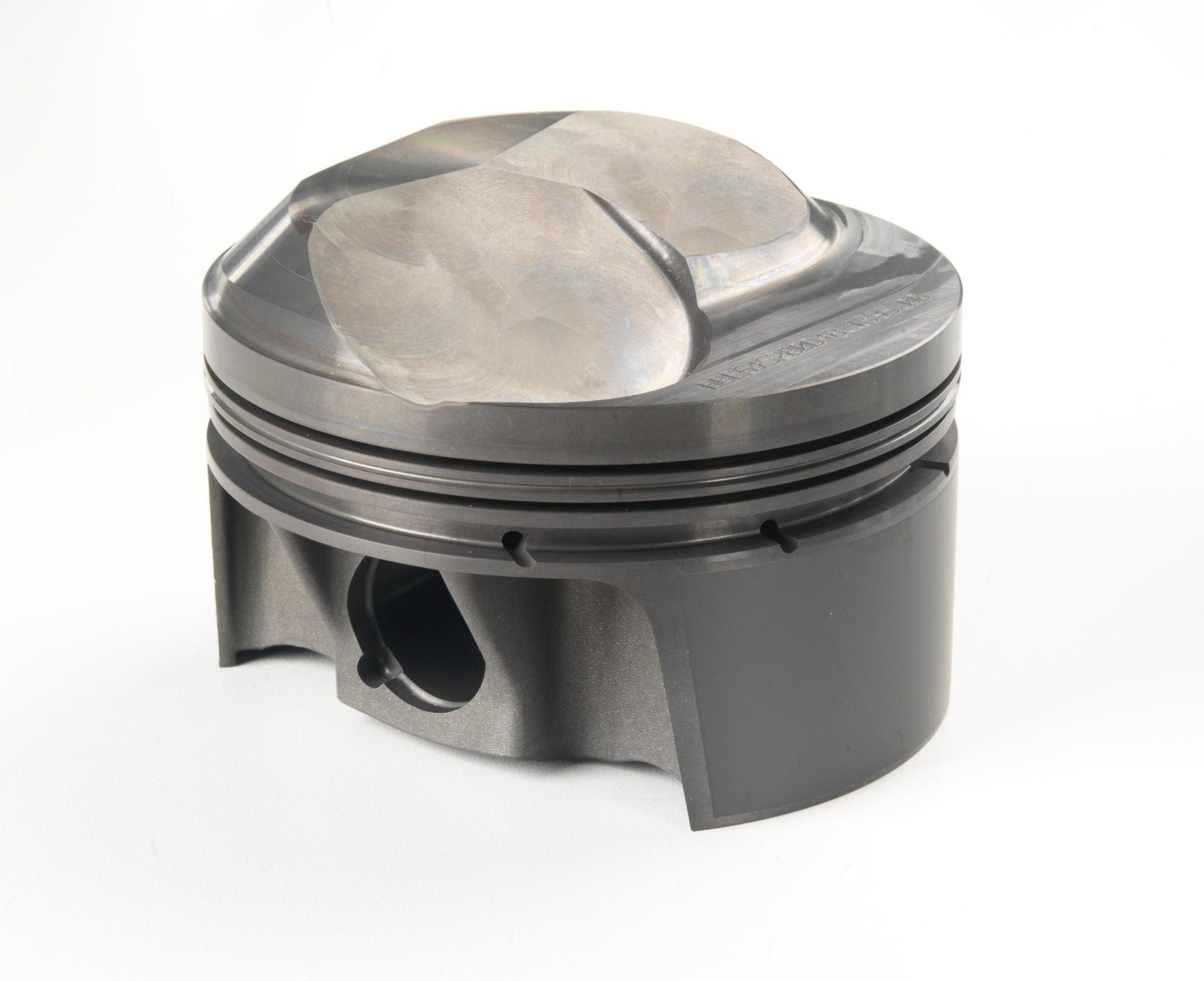

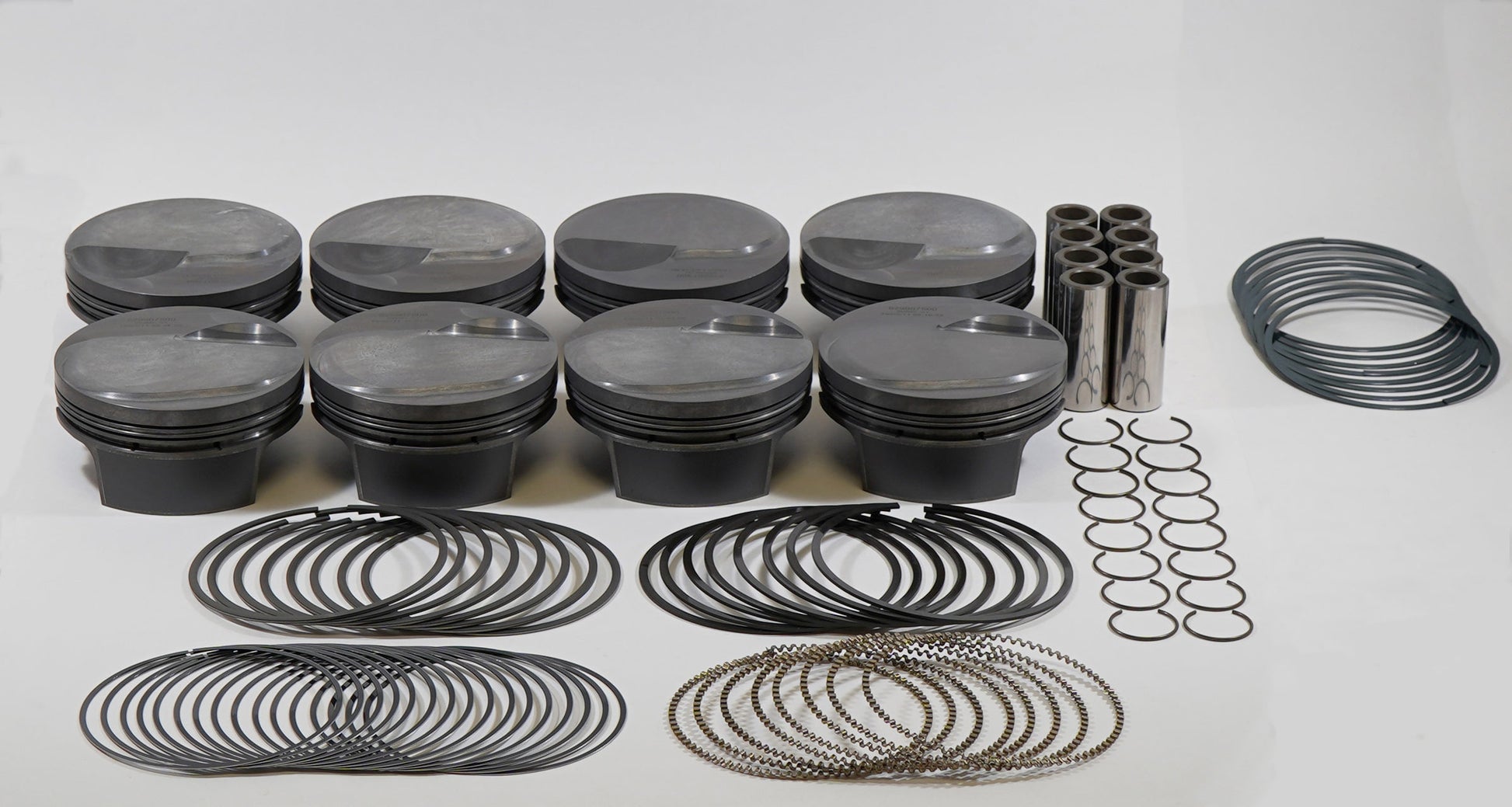

Mahle Motorsport 929907110 - Mahle MS Piston Set BBC 496ci 4.310in Bore 4.25in Stroke 6.385in Rod .990 Pin 18cc 10.2 CR Set of 8
Mahle Motorsport 929907110 - Mahle MS Piston Set BBC 496ci 4.310in Bore 4.25in Stroke 6.385in Rod .990 Pin 18cc 10.2 CR Set of 8
SKU: DGJH-929907110
Regular price
$837.99 USD
Regular price
$962.50 USD
Sale price
$837.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
Mahle Motorsport 929907110 - Mahle MS Piston Set BBC 496ci 4.310in Bore 4.25in Stroke 6.385in Rod .990 Pin 18cc 10.2 CR Set of 8
Piston and Ring - PowerPak - Forged - Dome - 4.310 in Bore - 1.270 in Compression Height - 1.5 x 1.5 x 3.0 mm Thick Ring Grooves - Plus 18 cc - Big Block Chevy - Kit
496cid 4.310 x 1.270RCH, 4.250stroke,6.385rod,0.990pin,18.0cc,539g,10.3CR, 4032
Pin Wall Thickness: 0.18
Crown Volume: 18.0cc
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Clips Included: Y
Pins Included: Y
Clip Style: Round Wire
UCR Thickness: 1.5mm
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 539g
Pin Style: Floating
