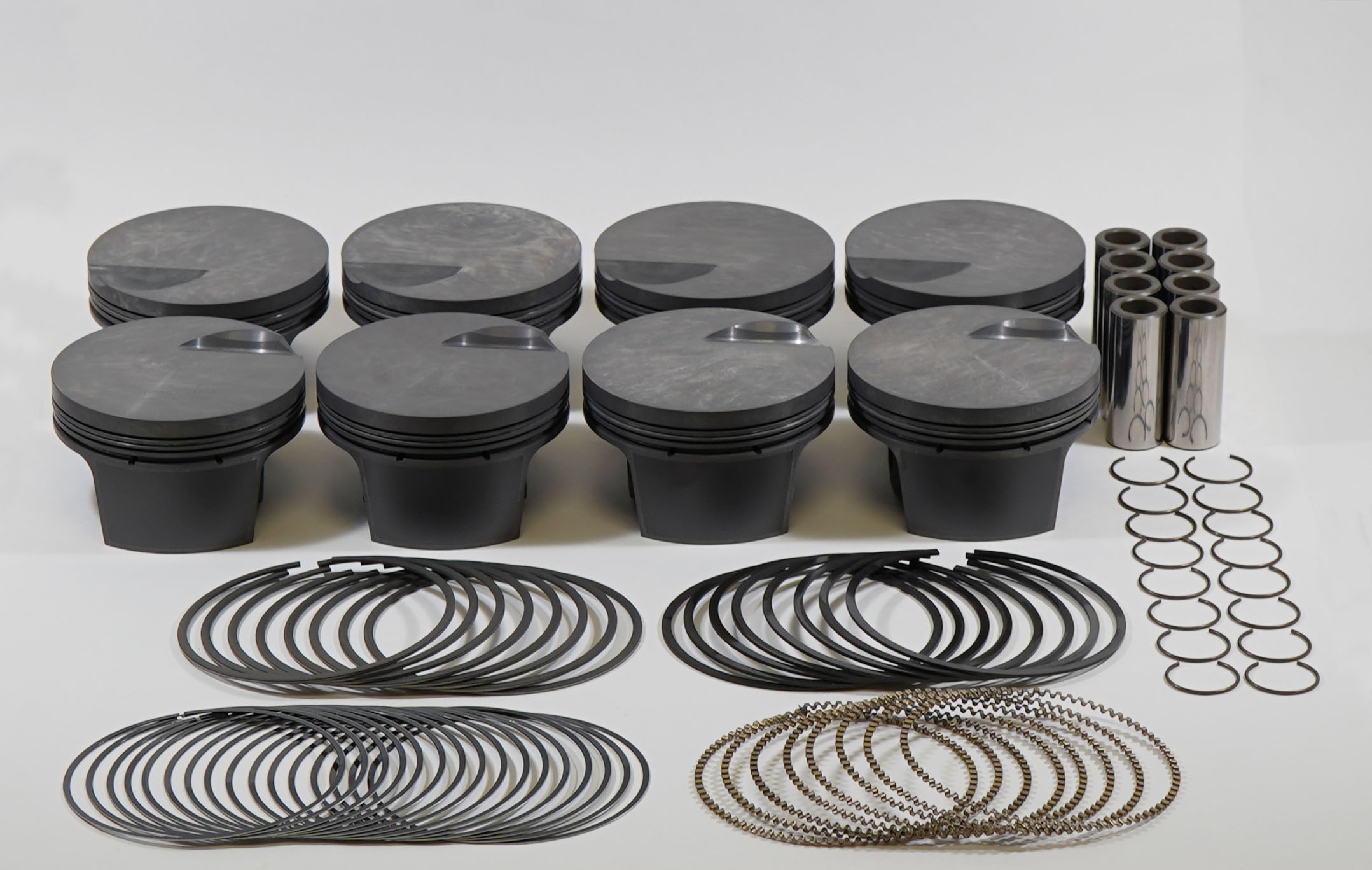

Mahle Motorsport 929869510 - Mahle MS Piston Set BBC 496ci 4.310in Bore 4.25in Stroke 6.385in Rod 0.990 Pin -3cc 8.7 CR Set of 8
Mahle Motorsport 929869510 - Mahle MS Piston Set BBC 496ci 4.310in Bore 4.25in Stroke 6.385in Rod 0.990 Pin -3cc 8.7 CR Set of 8
SKU: DGJH-929869510
Regular price
$836.99 USD
Regular price
$892.50 USD
Sale price
$836.99 USD
Shipping calculated at checkout.
Low stock: 2 left
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 929869510 - Mahle MS Piston Set BBC 496ci 4.310in Bore 4.25in Stroke 6.385in Rod 0.990 Pin -3cc 8.7 CR Set of 8

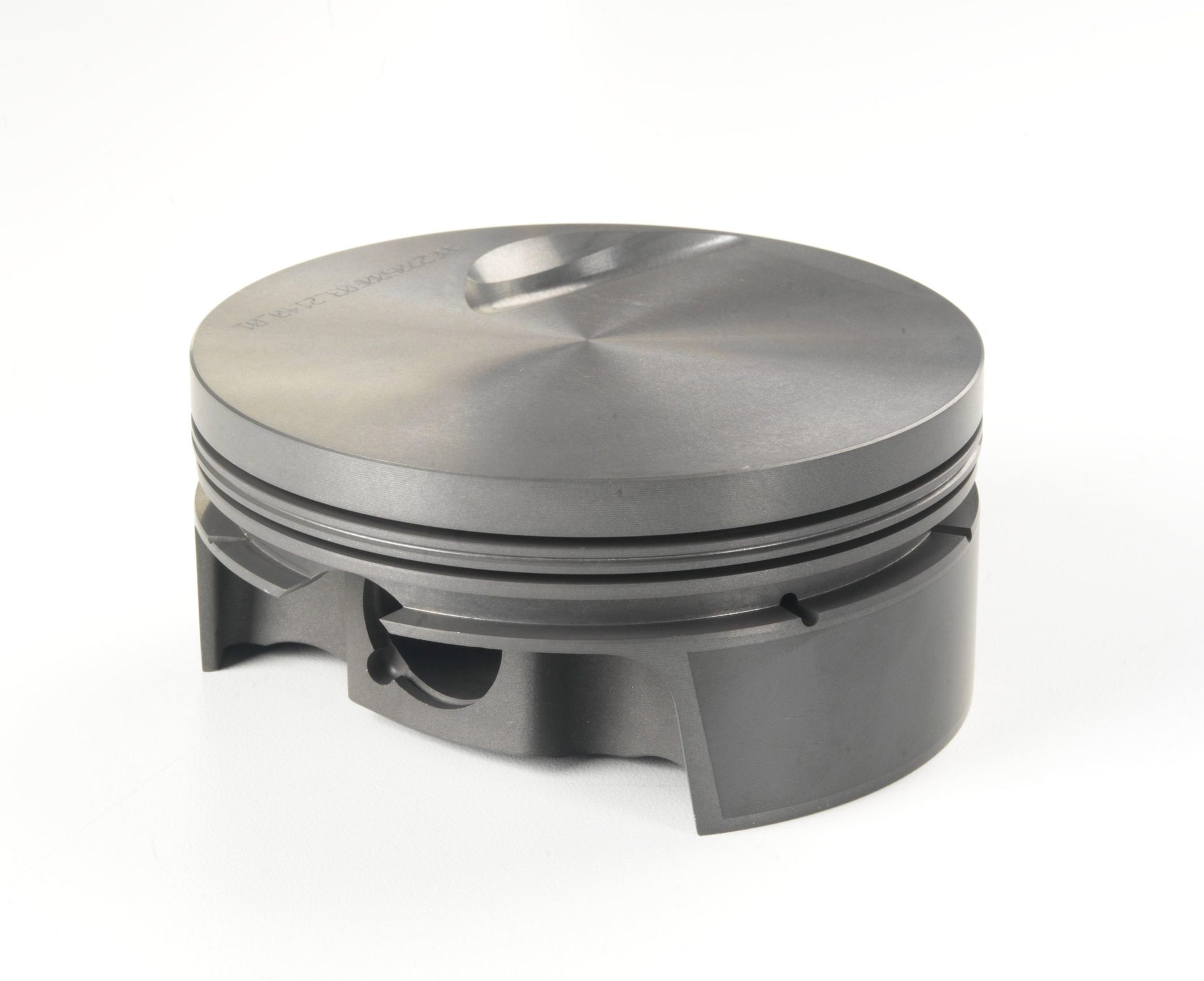

Piston (set) - BIG BLOCK CHEVY FLAT TOP (STD DECK 9.800)
496cid 4.310 x 1.270RCH, 4.250stroke,6.385rod,0.990pin,-3.4cc,481g,8.8CR, 4032
OCR Thickness: 3.0mm
Piston Style: Flattop, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 4032
Piston Mass: 481g
Pins Included: Y
Pin Wall Thickness: 0.18
Pin Style: Floating
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: -3.4cc
Clips Included: Y
Clip Style: Round Wire
UCR Thickness: 1.5mm
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
