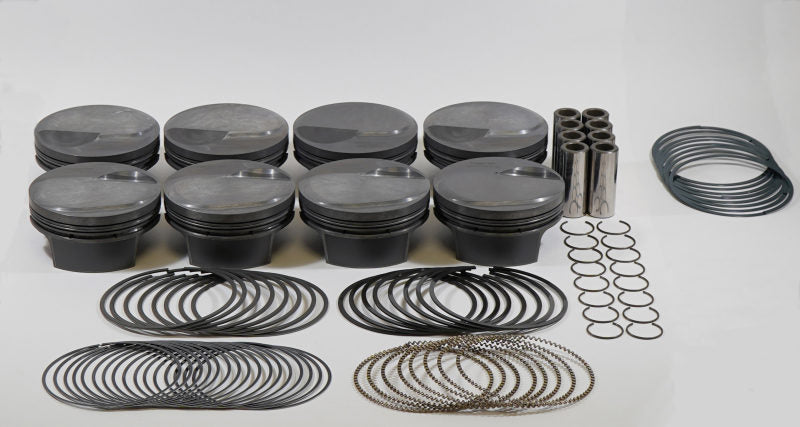

Mahle Motorsport 928980201 - Mahle MS Piston Set BBC 565ci 4.600in Bore 4.25in Stroke 6.385in Rod .990 Pin 38cc 13.7 CR Set of 8
Mahle Motorsport 928980201 - Mahle MS Piston Set BBC 565ci 4.600in Bore 4.25in Stroke 6.385in Rod .990 Pin 38cc 13.7 CR Set of 8
SKU: DGJH-928980201
Regular price
$909.99 USD
Regular price
$989.16 USD
Sale price
$909.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Mahle Motorsport 928980201 - Mahle MS Piston Set BBC 565ci 4.600in Bore 4.25in Stroke 6.385in Rod .990 Pin 38cc 13.7 CR Set of 8

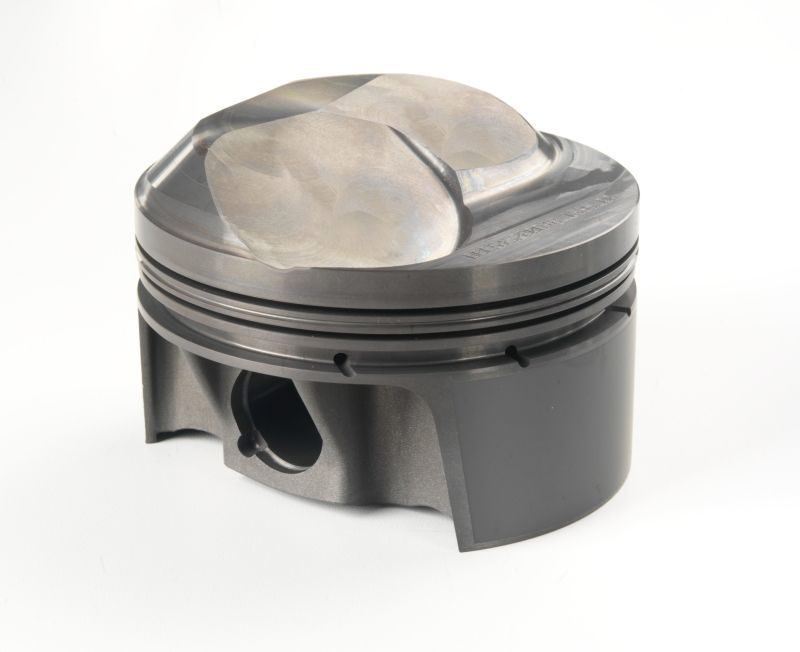

Piston (set) - BIG BLOCK CHEVY DOME (STD DECK 9.800)
565cid 4.600 x 1.270RCH, 4.250stroke,6.385rod,0.990pin,38.0cc,623g,13.7CR, 2618
Clip Style: Round Wire
Pin Wall Thickness: 0.18
UCR Material: Ductile Iron
UCR Coating: Plasma Moly
Rings Included: Y
Piston Style: Dome, w/ INT valve relief
Piston Ring Thickness: 1.5mm, 1.5mm, 3.0mm
Piston Material: Forged, 2618
Piston Mass: 623g
Pins Included: Y
Pin Style: Floating
Clips Included: Y
Pin Material: Steel
Pin Mass: 148g
Pin Length: 64.0mm
Pin Diameter: 25.146mm
Package Quantity: Sold as a set of 8
OCR Thickness: 3.0mm
OCR Tension: Standard
OCR Material: Chrome plated stainless steel
LCR Thickness: 1.5mm
LCR Material: Cast iron
LCR Coating: Phosphate
File Fit: Y
Crown Volume: 38.0cc
UCR Thickness: 1.5mm
